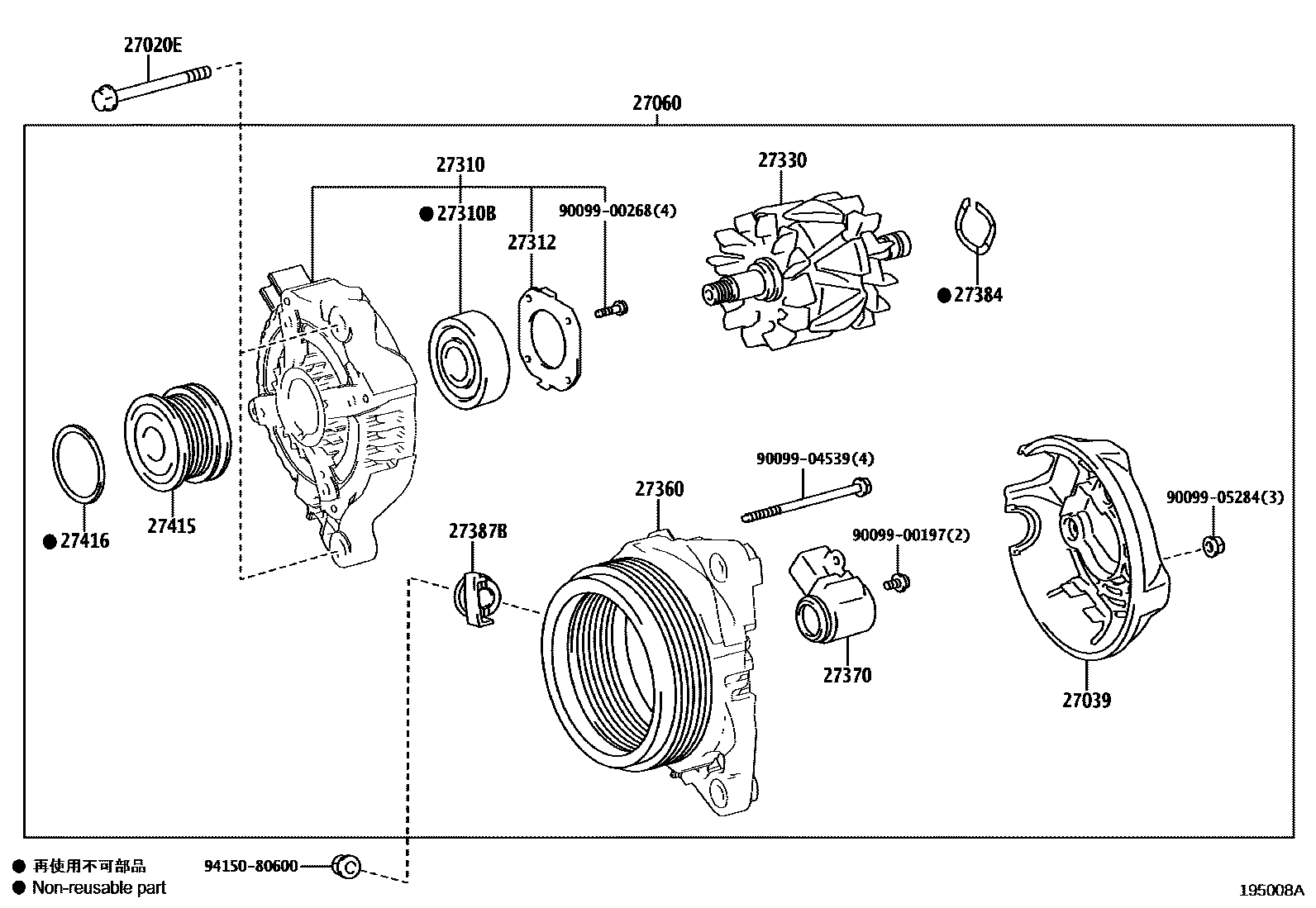

Toyota HARRIER — ALTERNATOR
27020EBOLT(FOR ALTERNATOR)
27039COVER, ALTERNATOR REAR END
27060ALTERNATOR ASSY, W/REGULATOR
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370HOLDER ASSY, ALTERNATOR BRUSH
27384WASHER
27387BINSULATOR, ALTERNATOR TERMINAL
27415PULLEY, ALTERNATOR W/CLUTCH
27416CAP, ALTERNATOR PULLEY
9009900197
main90099-00197
9009900268
main90099-00268
9009904539
main90099-04539
9009905284
main90099-05284
9415080600
main94150-80600
18 parts on this diagram · 1 diagram in section
ALTERNATOR for Toyota HARRIER
This section contains 18 genuine Toyota parts for the ALTERNATOR system of the Toyota HARRIER. Key components include: BOLT(FOR ALTERNATOR), COVER, ALTERNATOR REAR END, ALTERNATOR ASSY, W/REGULATOR, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME).
