Toyota HARRIER/HYBRID — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 1/2 0005 1ENGINE ROOM 1/2 0006 1ENGINE ROOM 2/2 0007 1ENGINE ROOM 2/2 0008 1ENGINE ROOM 2/2 0009 1COWL 0010 1INSTRUMENT PANEL 0011 1INSTRUMENT PANEL 0012 1STEERING 0013 1SEAT 0014 1DOOR,ROOF,FL00R & BACK DOOR

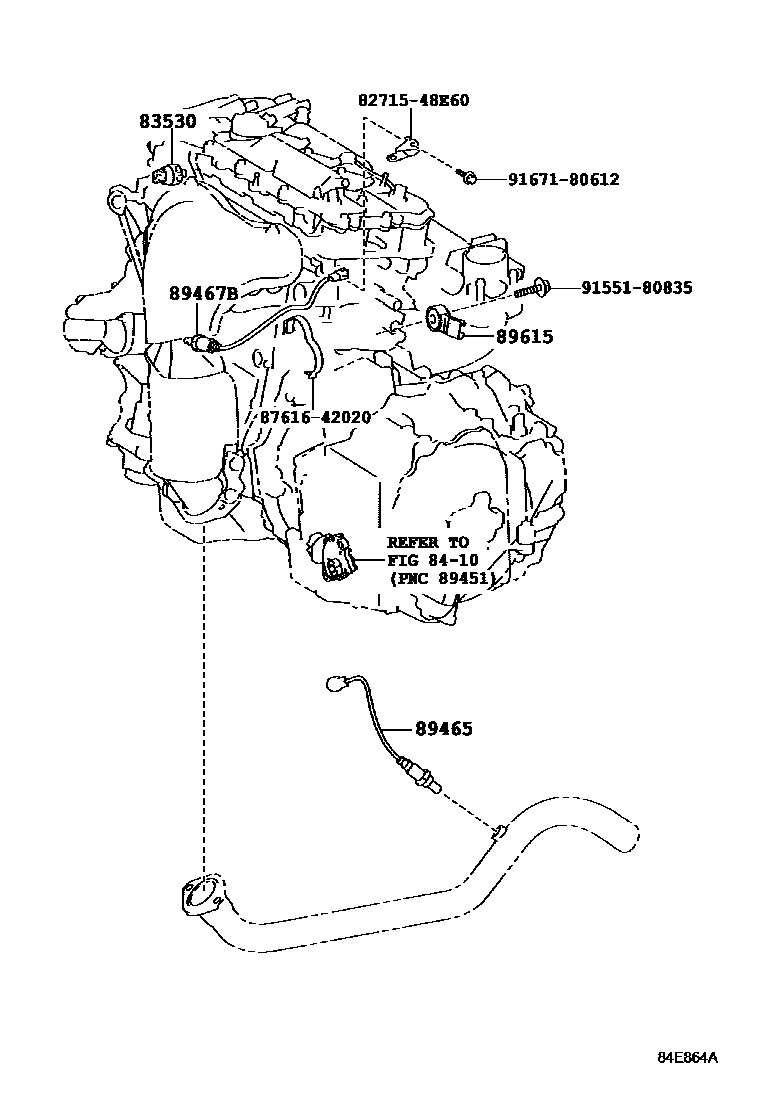

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12050iZSU6#201312-201402

sub83530-12060

main83530-28020iAVU65,ZSU6#201312-201705

main83530-60020iAVU65201401-201705

main83530-60020iAVU65,ZSU6#201705

8410

89465SENSOR, OXYGEN

main89465-42230iAVU65201401-201705

main89465-48340iZSU6#201312-201705

main89465-78010iASU6#201705

89467BSENSOR, AIR FUEL RATIO

main89467-48270iAVU65201401-201705

main89467-52060iZSU6#201312-201705

main89467-78010iASU6#201705

89615SENSOR, KNOCK CONTROL

main89615-20090iAVU65,ZSU6#201312-201705

8271548E60BRACKET,WIRING HARNESS CLAMP

main82715-48E60

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9155180835

main91551-80835

9167180612

main91671-80612

9 parts on this diagram · 14 diagrams in section
