Toyota HARRIER/HEV (CHINA) — HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-0R200i202111-202408

main87209-0R220i202111-202408

87246HOSE, HEATER WATER, OUTLET

main87209-0R210i202111-202408

main87209-0R230i202111

9613842501

main96138-42501

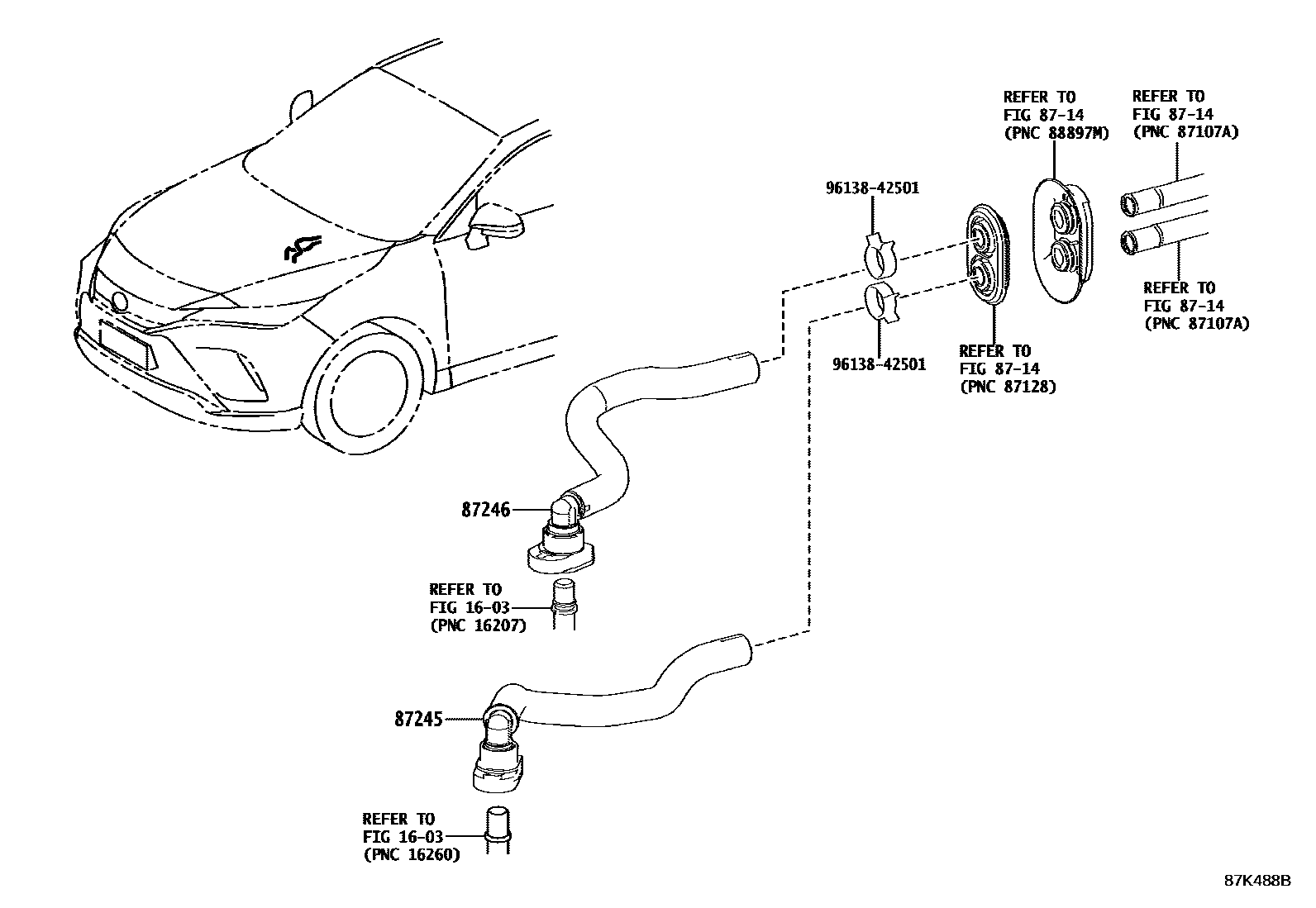

5 parts on this diagram · 2 diagrams in section

HEATING & AIR CONDITIONING - WATER PIPING for Toyota HARRIER/HEV (CHINA)

This section contains 5 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota HARRIER/HEV (CHINA). Key components include: RADIATOR & WATER OUTLET, HEATING & AIR CONDITIONING - COOLER UNIT, HOSE, HEATER WATER, INLET, HOSE, HEATER WATER, OUTLET.
