Toyota GT86/86 — WINDSHIELD WASHER

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85035NOZZLE SUB-ASSY, WASHER

mainSU00302700×2i201504-201607

8505HEADLAMP CLEANER

→ Go to FIG 85-05

85301INLET SUB-ASSY, WASHER

mainSU00302693i201307-201404

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

mainSU00302688i201405-201503

85330JAR ASSY, WINDSHIELD WASHER

mainSU00302697i201204-201308

OPTION CODE=1V; OPTION CODE=2L; OPTION CODE=2N; OPTION CODE=2U; OPTION CODE=2V; OPTION CODE=3V; OPTION CODE=4L; OPTION CODE=4N; OPTION CODE=4U; OPTION CODE=4V; OPTION CODE=5L; OPTION CODE=5N; OPTION CODE=5U; OPTION CODE=5V; OPTION CODE=AV; OPTION CODE=DN; OPTION CODE=DV; OPTION CODE=EV; OPTION CODE=HL; OPTION CODE=HN; OPTION CODE=HU; OPTION CODE=HV; OPTION CODE=JL; OPTION CODE=JN; OPTION CODE=JU; OPTION CODE=JV; OPTION CODE=ML; OPTION CODE=MN; OPTION CODE=MU; OPTION CODE=MV; OPTION CODE=NL; OPTION CODE=NN; OPTION CODE=NU; OPTION CODE=NV; OPTION CODE=QN; OPTION CODE=QV; OPTION CODE=RN; OPTION CODE=RV; OPTION CODE=XN; OPTION CODE=XV; OPTION CODE=XX; OPTION CODE=ZL; OPTION CODE=ZN; OPTION CODE=ZU; OPTION CODE=ZV

mainSU00302698i201204-201308

OPTION CODE=1W; OPTION CODE=2B; OPTION CODE=2C; OPTION CODE=2E; OPTION CODE=2F; OPTION CODE=2G; OPTION CODE=2H; OPTION CODE=2W; OPTION CODE=3W; OPTION CODE=4W; OPTION CODE=AW; OPTION CODE=DW; OPTION CODE=EW; OPTION CODE=HW; OPTION CODE=JW; OPTION CODE=MW; OPTION CODE=NB; OPTION CODE=NC; OPTION CODE=NE; OPTION CODE=NF; OPTION CODE=NG; OPTION CODE=NH; OPTION CODE=NW; OPTION CODE=XW

85330ABUSH, WINDSHIELD WASHER JAR

mainSU00302695i201204-201308

85332CAP, WINDSHIELD WASHER JAR

mainSU00302690i201204-201308

85336DPACKING, WINDSHIELD WASHER JAR

mainSU00302696i201204-201308

85336GGAGE, WATER LEVEL

mainSU00302692i201204-201308

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

mainSU00302717i201204-201308

85355VALVE, WINDSHIELD WASHER HOSE

mainSU00302699i201204-201308

85361HOLDER, WINDSHIELD WASHER

mainSU00302727i201204-201308

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

mainSU00302725i201204-201308

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

mainSU00302721i201204-201308

mainSU00302722i201204-201308

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

mainSU00302720i201307-201404

mainSU00302724i201504-201607

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

mainSU00302719i201307-201404

mainSU00302723i201405-201503

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

mainSU00303006×2i201405-201503

85387ACLAMP, WASHER, NO.2

mainSU00302691i201204-201308

SU00300004

mainSU003-00004

SU00300051

mainSU003-00051

SU00301553

mainSU003-01553

SU00302831

mainSU003-02831

23 parts on this diagram · 2 diagrams in section

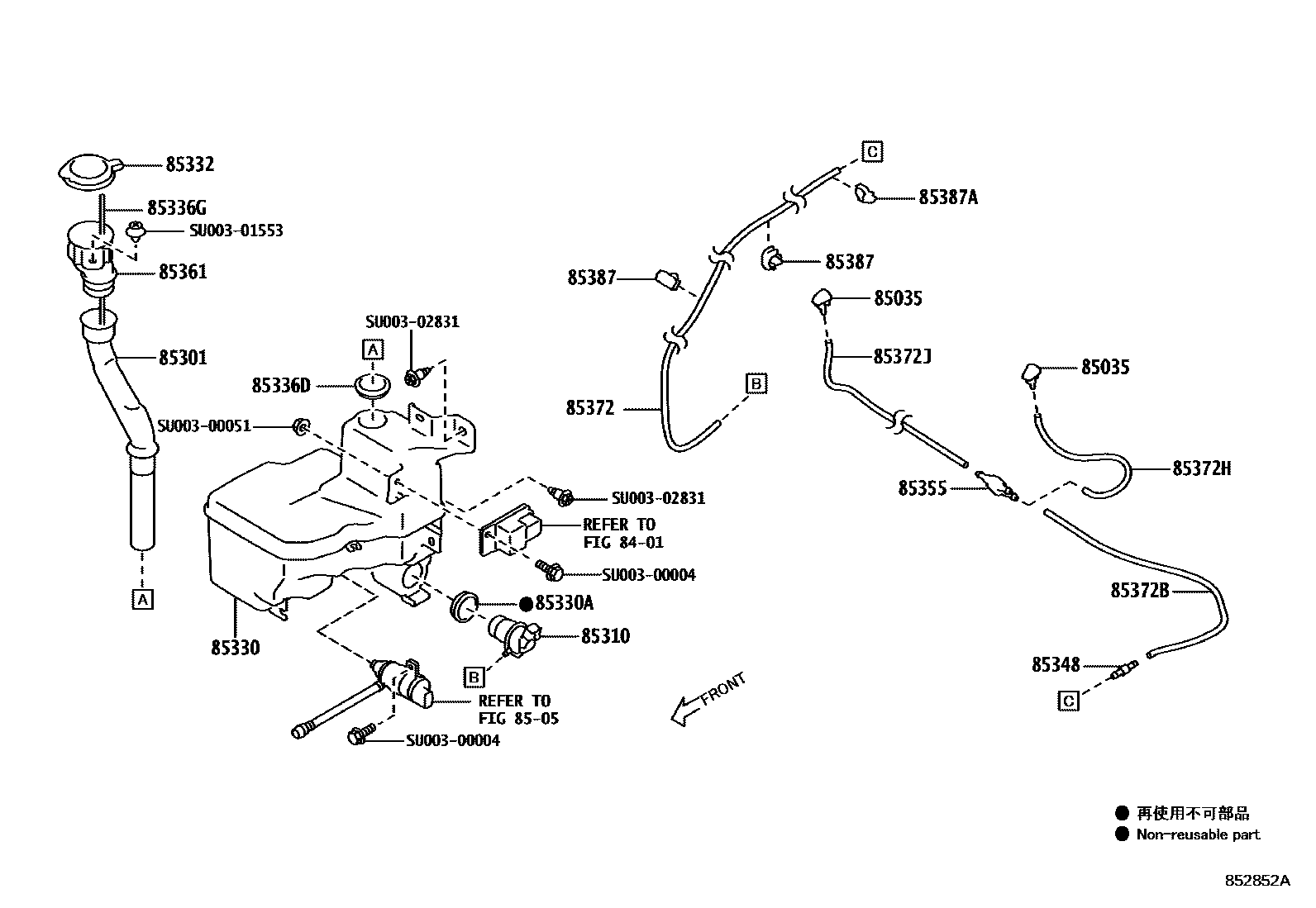

WINDSHIELD WASHER for Toyota GT86/86

This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota GT86/86. Key components include: SWITCH & RELAY & COMPUTER, NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, INLET SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER.
