Toyota GT86/86 — SPEAKER

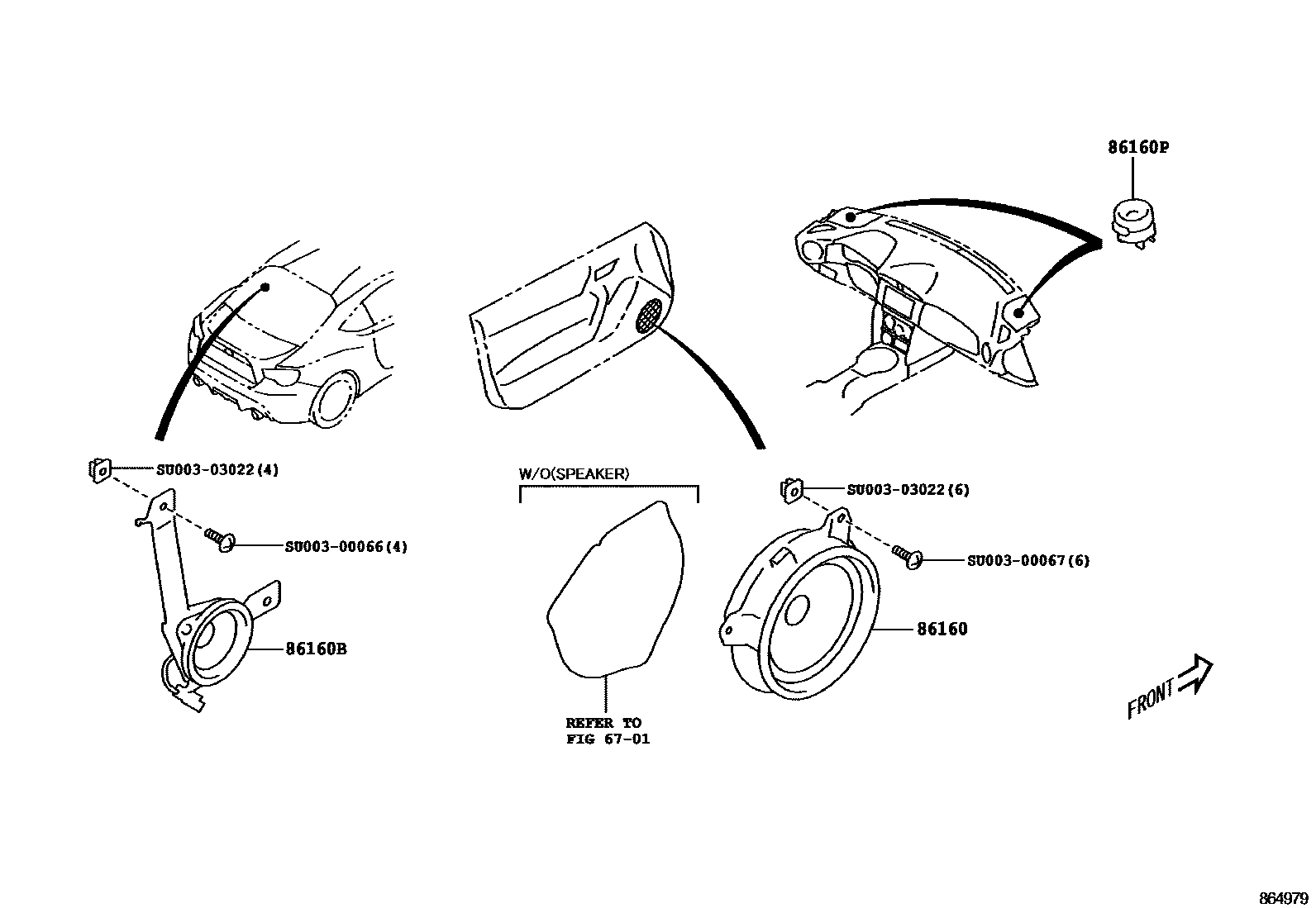

Parts diagram

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

86160SPEAKER ASSY, FRONT NO.1

mainSU00302642×2i201307-201404

86160BSPEAKER ASSY, REAR

mainSU00302643i201405-201503

RH

mainSU00302644i201204-201308

LH

86160PSPEAKER ASSY, FRONT NO.2

mainSU00302645×2i201204-201308

SU00300066

mainSU003-00066

SU00300067

mainSU003-00067

SU00303022

mainSU003-03022

7 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota GT86/86

This section contains 7 genuine Toyota parts for the SPEAKER system of the Toyota GT86/86. Key components include: FRONT DOOR PANEL & GLASS, SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
