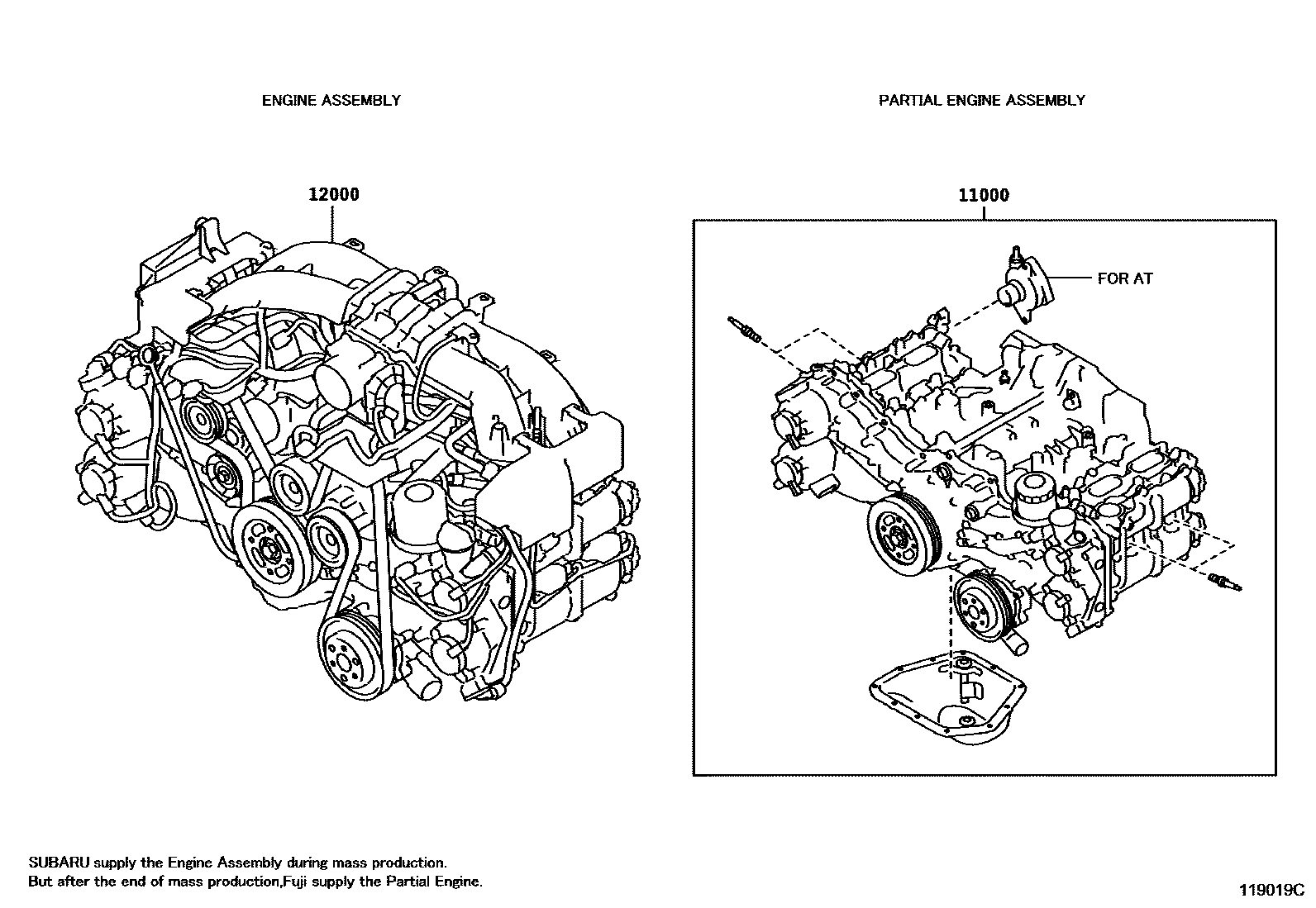

Toyota GT86/86 — PARTIAL ENGINE ASSEMBLY

11000ENGINE ASSY, PARTIAL

mainSU00305253iFA20..ZN6..6F..D201504-201607

subSU003-10504

mainSU00305254iFA20..ZN6..6FC201204-201308

subSU003-10505

12000ENGINE ASSY

mainSU00300086iFA20..ZN6..6F..CHI201204-201308

mainSU00300087iFA20..ZN6..6FC..CHI201204-201308

mainSU00300088iFA20..ZN6..LOW,LOWC201204-201308

mainSU00304734iFA20..ZN6..6F..(BASE,HI)..B201305-201404

mainSU00304735iFA20..ZN6..6FC..B201305-201404

mainSU00304736iFA20..ZN6..(LOW,LOWC)..B201307-201404

mainSU00305246iFA20..ZN6..LHD..6F..EUR201504-201607

DESTINATION CODE=EB

mainSU00305247iFA20..ZN6..LHD..6FC..(BASE,HI)..EUR201405-201503

DESTINATION CODE=EB

mainSU00305248iFA20..ZN6..LOW,LOWC,RCG201405-201503

mainSU00305251iFA20..ZN6..LHD..6F..(BASE,HI)..EUR201405-201503

DESTINATION CODE=E2

mainSU00305252iFA20..ZN6..LHD..6FC..(BASE,HI)..EUR201405-201503

DESTINATION CODE=E2

mainSU00300091iFA20..ZN6..LHD..6F..(BASE,HI)..EUR201204-201304

DESTINATION CODE=E2

subSU003-04739

mainSU00300092iFA20..ZN6..RHD..6FC201204-201304

DESTINATION CODE=E2

subSU003-04740

2 parts on this diagram · 1 diagram in section
