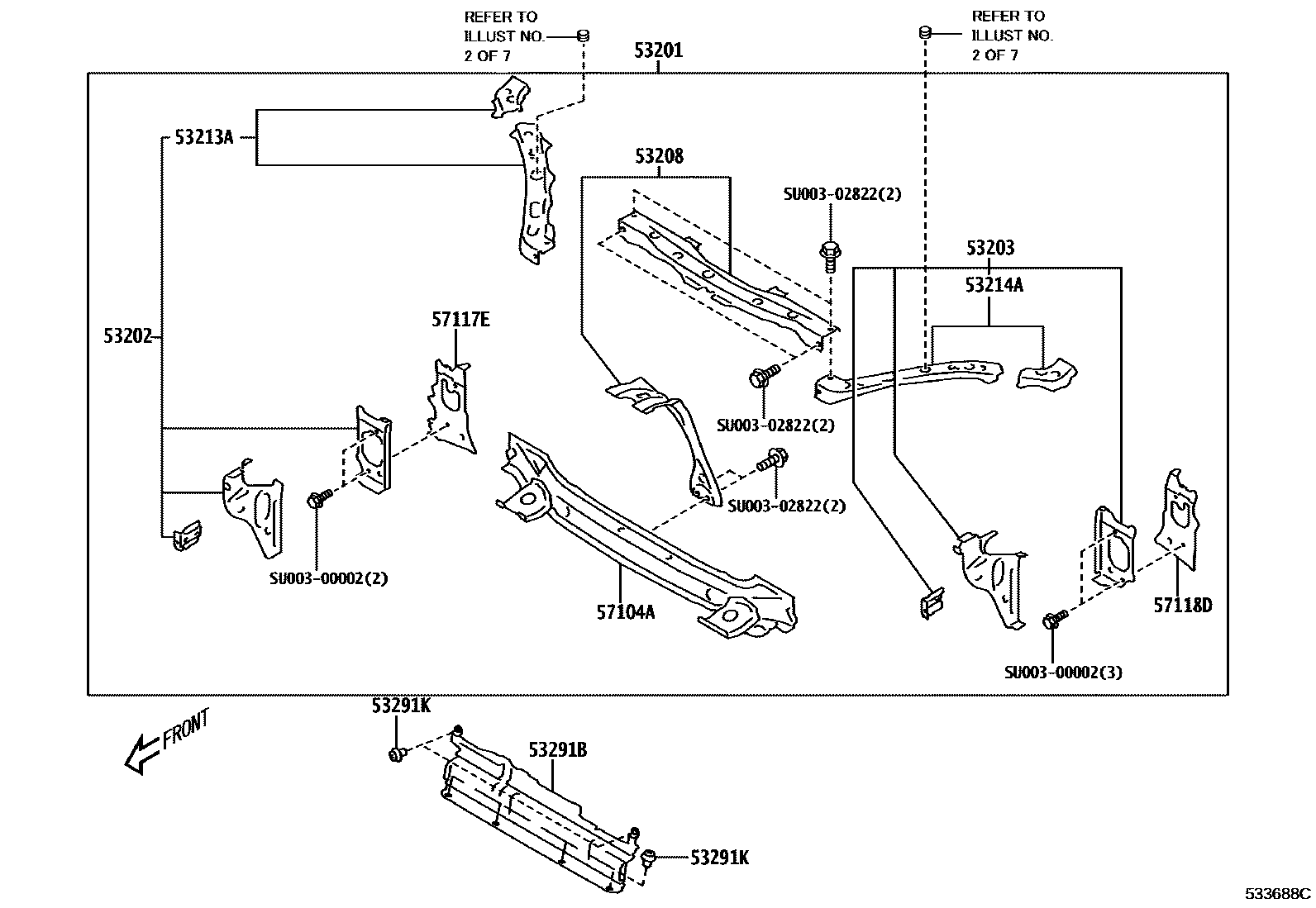

Toyota GT86/86 — FRONT FENDER APRON & DASH PANEL

53201SUPPORT SUB-ASSY, RADIATOR

mainSU00301364i201307-201404

53202SUPPORT SUB-ASSY, RADIATOR, RH

mainSU00301368i201307-201404

53203SUPPORT SUB-ASSY, RADIATOR, LH

mainSU00301369i201204-201308

53208SUPPORT SUB-ASSY, RADIATOR GRILLE, CENTER

mainSU00301365i201204-201308

53213ASUPPORT, RADIATOR, UPPER RH

mainSU00301366i201204-201308

53214ASUPPORT, RADIATOR, UPPER LH

mainSU00301367i201204-201308

53291BPLATE, RADIATOR COVER

mainSU00301221i201204-201308

53291KCLIP, RADIATOR COVER PLATE

mainSU00302984×6i201204-201308

57104AMEMBER SUB-ASSY, FRONT CROSS

mainSU00301372i201204-201308

57117ERETAINER, FRONT BUMPER ARM, RH

mainSU00301370i201204-201308

57118DRETAINER, FRONT BUMPER ARM, LH

mainSU00301371i201204-201308

SU00300002

mainSU003-00002

SU00302822

mainSU003-02822

13 parts on this diagram · 8 diagrams in section

FRONT FENDER APRON & DASH PANEL for Toyota GT86/86

This section contains 55 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota GT86/86. Key components include: RADIATOR & WATER OUTLET, BRAKE PEDAL & BRACKET, BRAKE BOOSTER & VACUUM TUBE, HOOD & FRONT FENDER, SUPPORT SUB-ASSY, RADIATOR.
