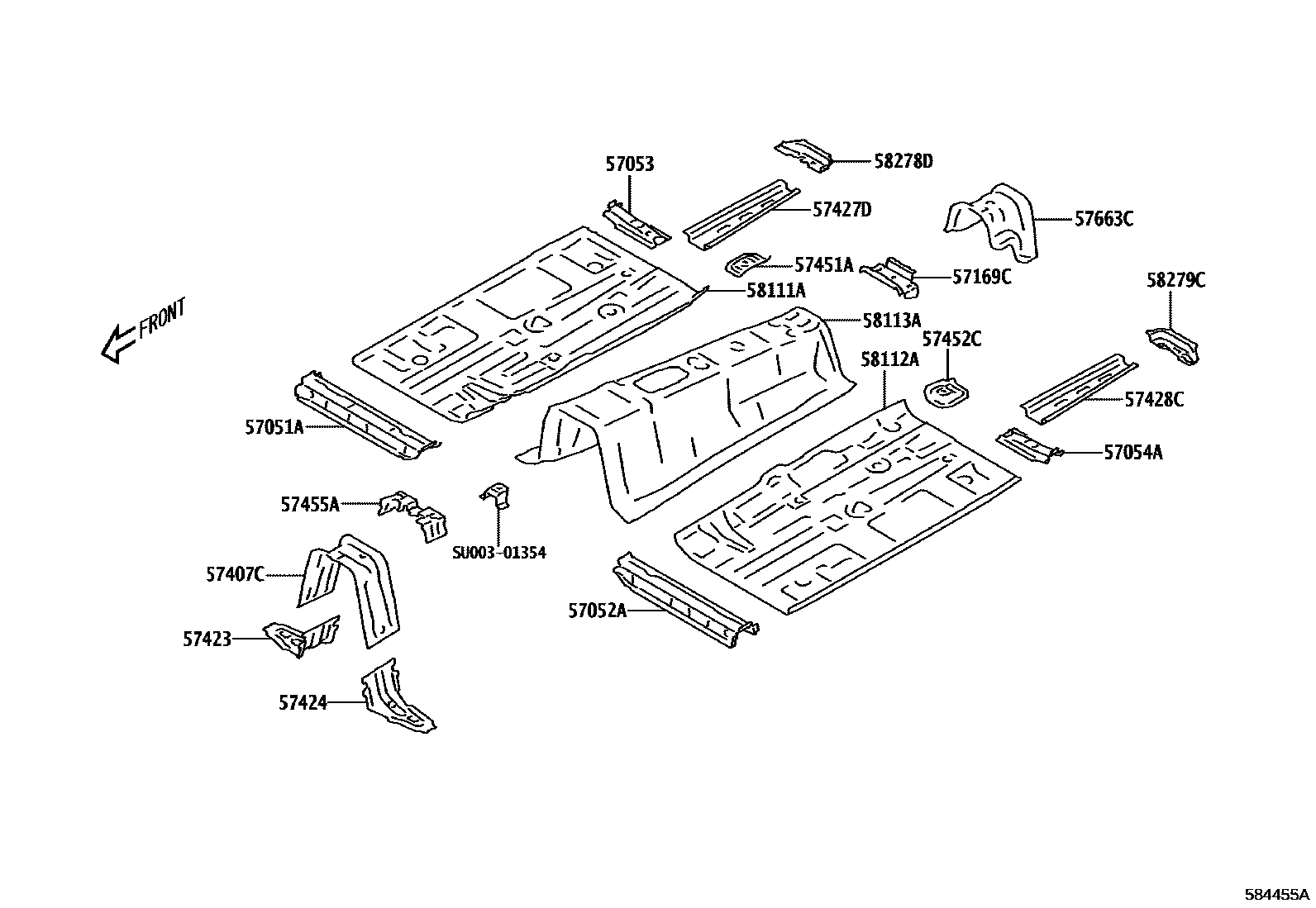

Toyota GT86/86 — FLOOR PAN & LOWER BACK PANEL
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57169CPATCH, FRONT FLOOR, REAR
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57455ABRACKET, FRONT FLOOR CROSSMEMBER
57663CMEMBER, REAR FLOOR CROSS, CENTER
58111APAN, FRONT FLOOR, RH
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58278DPROTECTOR, FUEL TANK, UPPER
58279CPROTECTOR, FUEL TANK, UPPER NO.2
SU00301354
mainSU003-01354
20 parts on this diagram · 6 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota GT86/86
This section contains 48 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota GT86/86. Key components include: MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH, MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH, REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH, REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH, PATCH, FRONT FLOOR, REAR.
