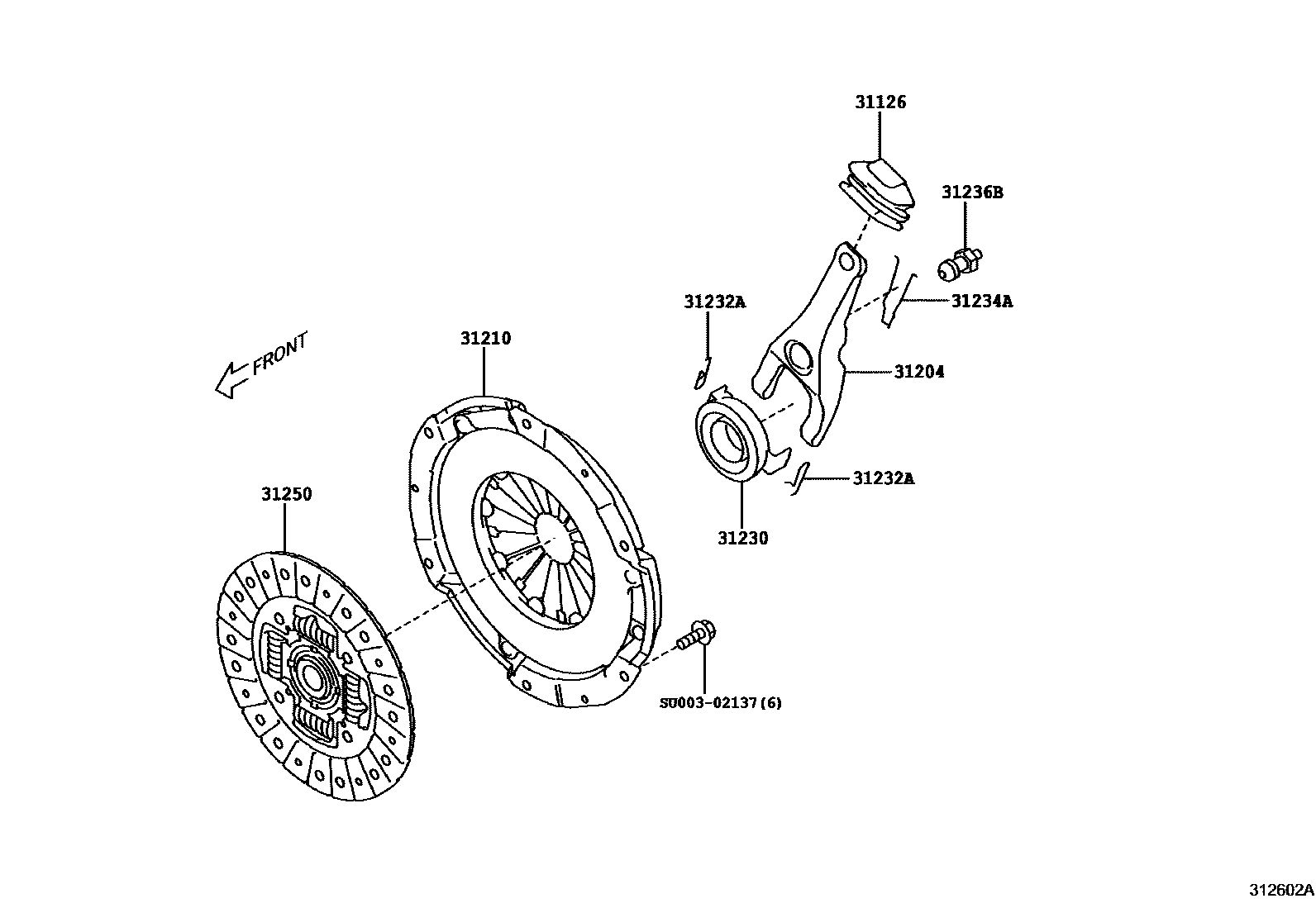

Toyota GT86/86 — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
31234ASPRING, RELEASE FORK SUPPORT
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
SU00302137
mainSU003-02137
9 parts on this diagram · 1 diagram in section
CLUTCH & RELEASE FORK for Toyota GT86/86
This section contains 9 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota GT86/86. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
