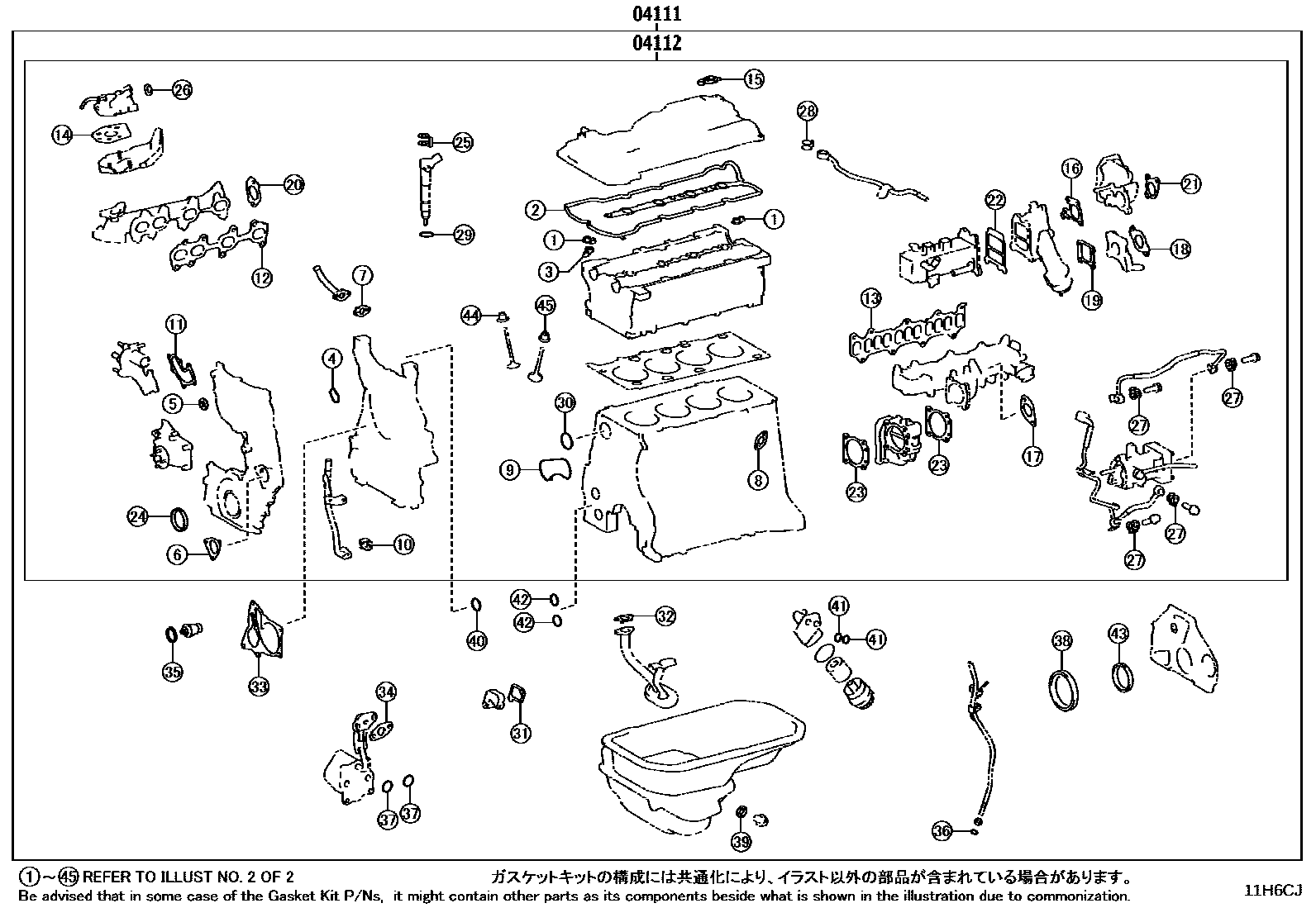

Toyota GRNVA/HIACE/MJSTY — ENGINE OVERHAUL GASKET KIT
04111GASKET KIT, ENGINE OVERHAUL
TYPE D:REFER ILLUST.
TYPE D:REFER ILLUST.
TYPE D:REFER ILLUST.
main04111-11260i1GDFTV..GDH300,320..LHD..SP..6FC..GEN; 1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN; 1GDFTV..GDH301..LHD..N;1GDFTV..GDH301..LHD..6F..D; 1GDFTV..GDH301..RHD..6F..D..GEN; 1GDFTV..GDH301..RHD..6FC..D..GEN; 1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,301..LHD..6F..GEN;1GDFTV..GDH320..LHD..SP..6F..GEN; 1GDFTV..GDH303..RHD..(G,J)..GEN; 1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH304,306,321..GEN,IDN,NZ;1GDFTV..GDH300,301,303,320,328..ARL,NZ,PH,TH;1GDFTV..GDH303,322..6FC..(H,P,Q)..(ARL,GEN,NZ)201902-202206
ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTCHEATER),TYPE A:REFER ILLUST.; BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; BHUTAN SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.; CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITHOUT(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.; PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main04111-11261i1GDFTV..GDH300,303,320..(SG,SP)..GCC; 1GDFTV..GDH301,322..RHD..SG..6FC..D..GEN; 1GDFTV..GDH301..LHD..SG..6F; 1GDFTV..GDH301..RHD..SG..D..GEN;1GDFTV..GDH300..RHD..4D..SP..6F..GEN; 1GDFTV..GDH303,328..H,N;1GDFTV..GDH301..GSOB..6F..N;1GDFTV..GDH321..RHD..(GEN,IDN); 1GDFTV..GDH303..RHD..(G,J)..GEN; 1GDFTV..GDH303..RHD..J..GEN; 1GDFTV..GDH320..LHD..PSOB..6F..GEN202206-202411
BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; MEXICO SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&FRONT HEATER-WITH,TYPEA:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main04111-11270i1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,320,322..(D,G,J,N)..(GCC,GEN)201902-202206
TYPE B:REFER ILLUST.
main04111-11271i1GDFTV..GDH303..LHD..H; 1GDFTV..GDH320..GEN;1GDFTV..GDH301..LHD..6FC..D;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH301..RHD..6FC..GEN;1GDFTV..GDH301..SG..6F..D..GEN;1GDFTV..GDH301..LHD..SG..6F..N;1GDFTV..GDH301..LHD..GSOB..6F..D;1GDFTV..GDH303..(G,J)..(GCC,GEN);1GDFTV..GDH300..5D..(PSOB,SP)..GEN;1GDFTV..GDH300,322..LHD..(GSOB,SP)..D;1GDFTV..GDH320,322..(SG,SP)..(D,P)..GCC;1GDFTV..GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;1GDFTV..GDH300,322..4D..(PSOB,SG)..(D,N,Q)..(GCC,GEN)202206
GUATEMALA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.; LAOS SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.; MYANMAR SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS),TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
TYPE C:REFER ILLUST.
main04111-11281supersedes 04111-11291i1GDFTV..GDH300,320..RHD..5D..PSOB..GEN; 1GDFTV..GDH300..SHP..6F..GEN; 1GDFTV..GDH301..RHD..6F..N; 1GDFTV..GDH322..RHD..SG..6F..D..GEN202405
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,TYPE C:REFER ILLUST.; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE C:REFER ILLUST.; SOUTH AFRICA SPEC,TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
main04111-11420i1GDFTV..GDH300,303,320..(SG,SP)..GCC; 1GDFTV..GDH300,320..LHD..6F..GEN; 1GDFTV..GDH300..SHP..GCC;1GDFTV..GDH300..PSOB..6FC..GCC; 1GDFTV..GDH301..LHD..SG..6F; 1GDFTV..GDH301..RHD..SG..6FC..D..GEN; 1GDFTV..GDH301..RHD..SG..D..GEN;1GDFTV..GDH300..RHD..4D..SP..6F..GEN; 1GDFTV..GDH303,322..RHD..SG..6FC..(J,N)..GEN; 1GDFTV..GDH303,328..H,N;1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..GSOB..6F..N;1GDFTV..GDH300..PSOB..6F..GCC;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH301..LHD..SG..6FC..N; 1GDFTV..GDH303..LHD..(G,J)..GEN; 1GDFTV..GDH303..RHD..J..GEN; 1GDFTV..GDH320..LHD..PSOB..6F..GEN; 1GDFTV..GDH320..LHD..PSOB..6F..GEN;1GDFTV..GDH300,301..LHD..(PSOB,SG)..6F..D..GEN; 1GDFTV..GDH320..LHD..SP..GEN; 1GDFTV..GDH322..RHD..SG..6FC..N202411
BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; CAMBODIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&FRONT HEATER-WITH,TYPE A:REFER ILLUST.; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; MEXICO SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.; PAKISTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&FRONT HEATER-WITH,TYPE A:REFER ILLUST.; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&FRONT HEATER-WITH,TYPEA:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.; UNITED ARAB EMIRATES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),TYPE D:REFER ILLUST.
HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),*681,W/C&FRONT HEATER-WITH,TYPE E:REFER ILLUST.
HONG KONG SPEC&EXHAUST EMISSION CONTROL-EURO6C,W(ON BOARD DIAGNOSIS 2),*681,W/C&FRONT HEATER-WITH,TYPE E:REFER ILLUST.; UKRAINE SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO6,W(ON BOARD DIAGNOSIS),*681,W/C&FRONT HEATER-WITH(PTC HEATER),TYPE E:REFER ILLUST.
FIJI SPEC
04112GASKET KIT, ENGINE VALVE GRIND
TYPE D:REFER ILLUST.
TYPE D:REFER ILLUST.
TYPE D:REFER ILLUST.
main04112-11210i1GDFTV..GDH300,320..LHD..SP..6FC..GEN; 1GDFTV..GDH301..LHD..6F..N;1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,320..LHD..SP..6F..GEN; 1GDFTV..GDH301..LHD..N;1GDFTV..GDH301..LHD..6F..D; 1GDFTV..GDH301..RHD..6F..D..GEN; 1GDFTV..GDH301..RHD..6FC..D..GEN; 1GDFTV..GDH303..LHD..(G,J)..GEN;1GDFTV..GDH300,301..LHD..6F..GEN;1GDFTV..GDH320..LHD..SP..6F..GEN; 1GDFTV..GDH303..RHD..(G,J)..GEN; 1GDFTV..GDH322..LHD..6F..P..GEN;1GDFTV..GDH304,306,321..GEN,IDN,NZ;1GDFTV..GDH300,301,303,320,328..ARL,NZ,PH,TH;1GDFTV..GDH303,322..6FC..(H,P,Q)..(ARL,GEN,NZ)201902-202206
ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&SPECIAL NOISE INSULATOR-WITH(ECE51/02)&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTCHEATER),TYPE A:REFER ILLUST.; BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; BHUTAN SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.; CHILE SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITHOUT(ON BOARD DIAGNOSIS),TYPEA:REFER ILLUST.; PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main04112-11211i1GDFTV..GDH303..RHD..J..GEN;1GDFTV..GDH300..5D..SP..6F..GEN; 1GDFTV..GDH321..GEN; 1GDFTV..GDH322..LHD..SG..6FC..N202206-202310
ARGENTINA SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.; FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.
main04112-11220i1GDFTV..GDH322..GCC;1GDFTV..GDH300,301,303,320,322..(D,G,J,N)..(GCC,GEN)201902-202206
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
main04112-11231supersedes 04112-11241i1GDFTV..GDH300..5D..(SHP,SP)..6F..GEN; 1GDFTV..GDH304..TH; 1GDFTV..GDH320..LHD..SP..6F..GEN; 1GDFTV..GDH322..LHD..SG..P..GEN202206-202310
GEORGIA SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-DIESEL EURO0 WITHOUT(ON BOARD DIAGNOSIS),TYPE C:REFER ILLUST.; GEORGIA SPEC&COLD AREA SPEC(-10C AREA),TYPE C:REFER ILLUST.; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
main04112-11370i1GDFTV..GDH300,303,320..(SG,SP)..GCC; 1GDFTV..GDH300,320..LHD..6F..GEN; 1GDFTV..GDH300..SHP..GCC;1GDFTV..GDH300..PSOB..6FC..GCC; 1GDFTV..GDH301..LHD..SG..6F; 1GDFTV..GDH301..RHD..SG..6FC..D..GEN; 1GDFTV..GDH301..RHD..SG..D..GEN;1GDFTV..GDH300..RHD..4D..SP..6F..GEN; 1GDFTV..GDH303,322..RHD..SG..6FC..(J,N)..GEN; 1GDFTV..GDH303,328..H,N;1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..GSOB..6F..N;1GDFTV..GDH300..PSOB..6F..GCC;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH301..LHD..SG..6FC..N; 1GDFTV..GDH303..LHD..(G,J)..GEN; 1GDFTV..GDH303..RHD..J..GEN; 1GDFTV..GDH320..LHD..PSOB..6F..GEN; 1GDFTV..GDH320..LHD..PSOB..6F..GEN;1GDFTV..GDH300,301..LHD..(PSOB,SG)..6F..D..GEN; 1GDFTV..GDH320..LHD..SP..GEN; 1GDFTV..GDH322..RHD..SG..6FC..N202411
BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; CAMBODIA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&FRONT HEATER-WITH,TYPE A:REFER ILLUST.; COSTA RICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; MEXICO SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 WITH(ON BOARD DIAGNOSIS)&FRONT HEATER-WITH(PTC HEATER),TYPE A:REFER ILLUST.; PAKISTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; PERU SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&FRONT HEATER-WITH,TYPE A:REFER ILLUST.; PHILIPPINES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,TYPE A:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700&FRONT HEATER-WITH,TYPEA:REFER ILLUST.; SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.; TYPE A:REFER ILLUST.; UNITED ARAB EMIRATES SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,TYPE A:REFER ILLUST.
EXHAUST EMISSION CONTROL-GASOLINE EURO5/6 WITH(AIR INJECTION)*699
EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),TYPE D:REFER ILLUST.
UKRAINE SPEC&COLD AREA SPEC(-10C AREA)&EXHAUST EMISSION CONTROL-EURO6,W(ON BOARD DIAGNOSIS),*681,W/C&FRONT HEATER-WITH(PTC HEATER),TYPE E:REFER ILLUST.
HONG KONG SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6C *699,*681,W/C,WLTP&FRONT HEATER-WITH,TYPE E:REFER ILLUST.
2 parts on this diagram · 14 diagrams in section
ENGINE OVERHAUL GASKET KIT for Toyota GRNVA/HIACE/MJSTY
This section contains 18 genuine Toyota parts for the ENGINE OVERHAUL GASKET KIT system of the Toyota GRNVA/HIACE/MJSTY. Key components include: GASKET KIT, ENGINE OVERHAUL, GASKET KIT, ENGINE VALVE GRIND, CYLINDER HEAD, CYLINDER BLOCK, TIMING GEAR COVER & REAR END PLATE.
