Toyota GRANVIA HYBRID — STEERING WHEEL

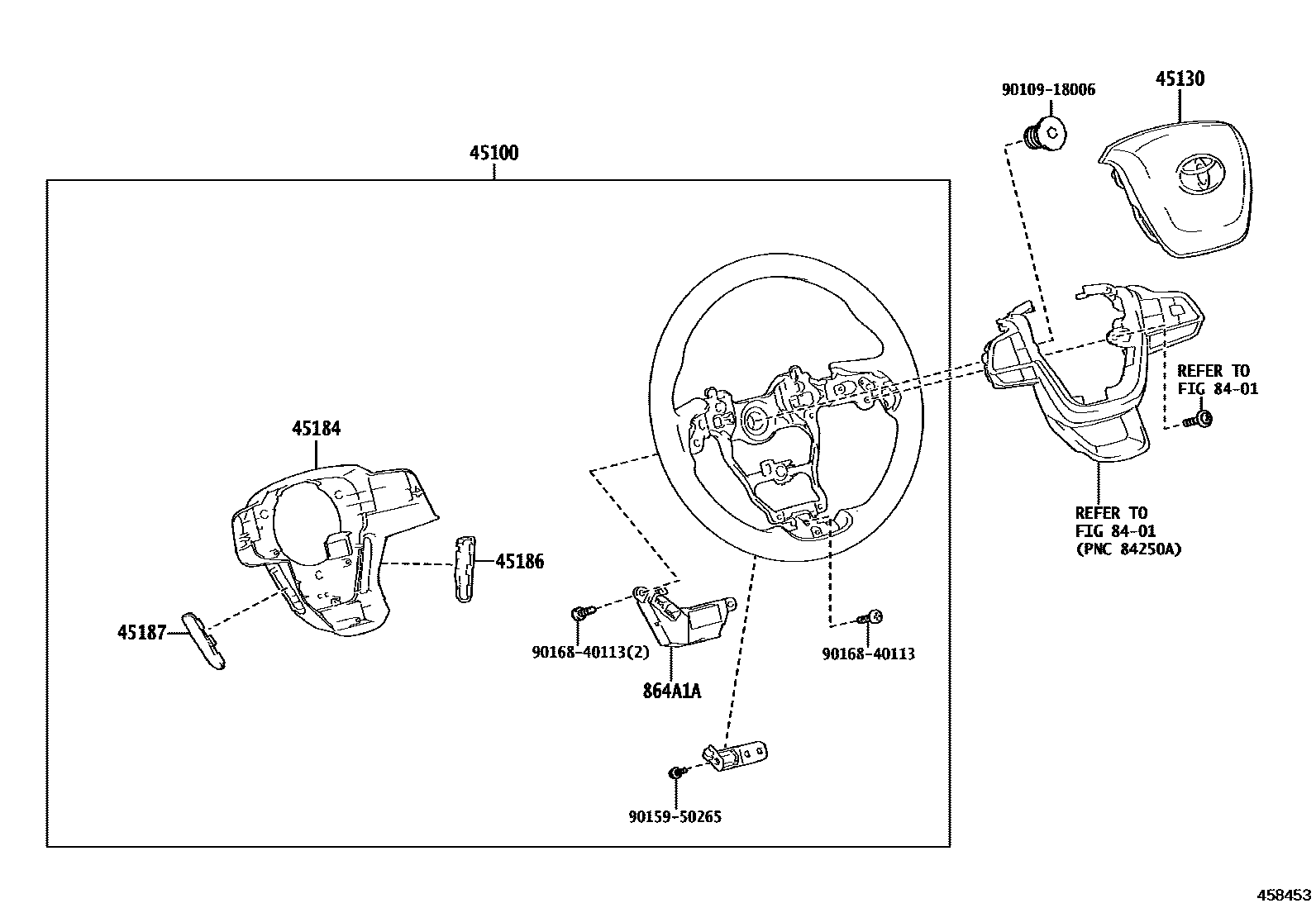

Parts diagram

45100WHEEL ASSY, STEERING

main45100-08330-C0i202211

3-SPOKE,URETHANE,BLACK,TRIM1#,2#

main45100-08340-C1i202211

3-SPOKE,LEATHER,DARK GRAY NO.163,TRIM2#

main45100-08340-C2i202211-202404

3-SPOKE,LEATHER,BLACK,TRIM0#,1#,4#

main45100-08340-E0i202404

3-SPOKE,LEATHER,NOBLE BROWN,TRIM4#; 3-SPOKE,LEATHER,NOBLE BROWN,TRIM40

main45100-08350-C0i202211

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-08350-C1i202404

3-SPOKE,LEATHER,BLACK,TRIM0#,41

main45100-08350-E0i202211-202404

3-SPOKE,LEATHER,NOBLE BROWN,TRIM4#

45130BUTTON ASSY, HORN

main45130-08130-C0i202211

BLACK,TRIM0#,1#,2#,41; BLACK,TRIM0#,2#,41; BLACK,TRIM1#,2#

main45130-08130-E0i202211

NOBLE BROWN,TRIM40

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-08070i202211

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-08050i202211

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-08040i202211

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-08060i202211

main864A1-08070i202211

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113

10 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota GRANVIA HYBRID

This section contains 10 genuine Toyota parts for the STEERING WHEEL system of the Toyota GRANVIA HYBRID. Key components include: WHEEL ASSY, STEERING, BUTTON ASSY, HORN, COVER, STEERING WHEEL BOSS, LOWER, COVER, STEERING WHEEL, LOWER NO.2, COVER, STEERING WHEEL, LOWER NO.3.
