Toyota GRANVIA HYBRID — ROOF PANEL & BACK PANEL

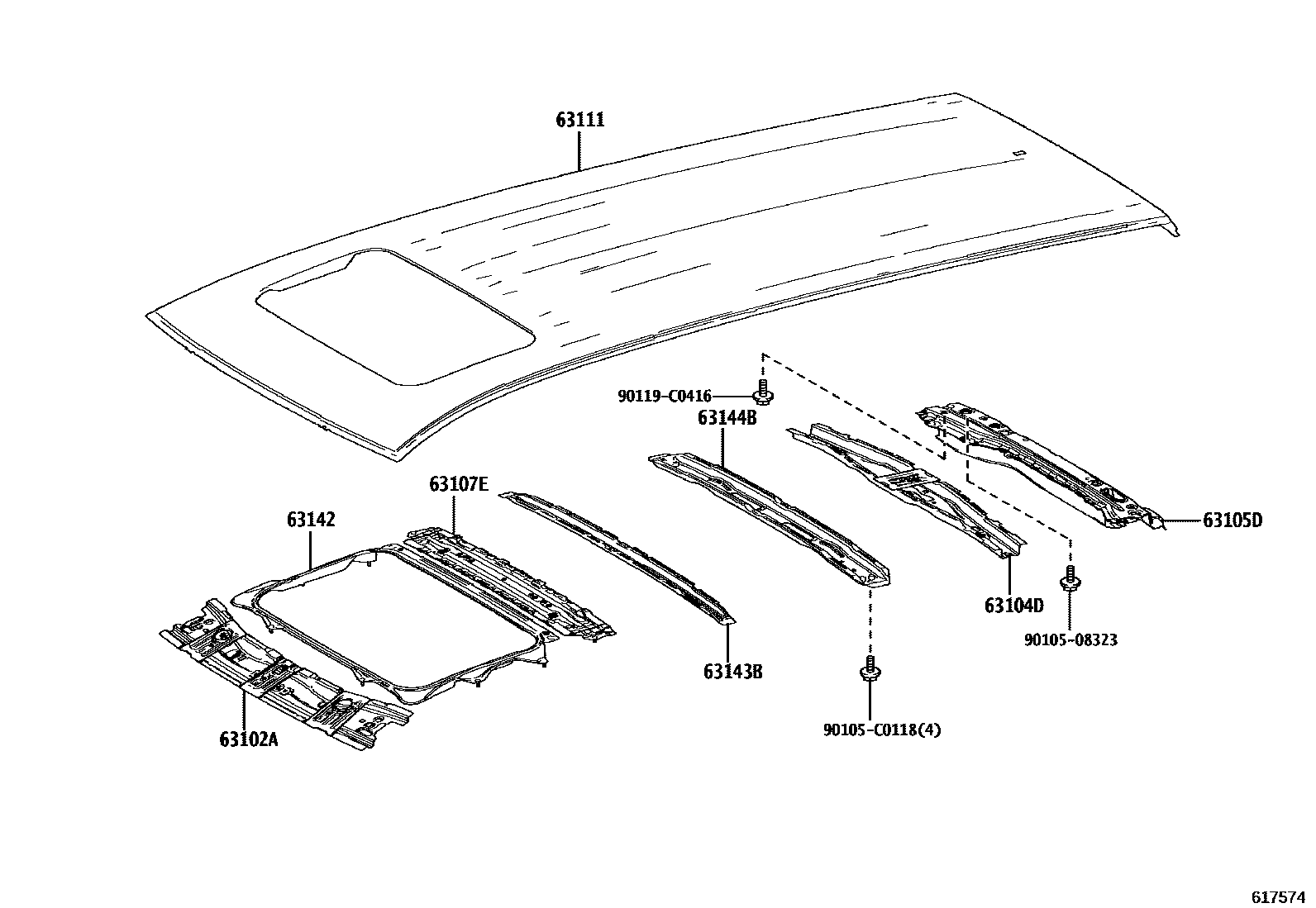

Parts diagram

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-08080i202211

63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2

main63104-08060i202211

main63104-08070i202211

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-08050i202211

63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5

main63107-08060i202211

63111PANEL, ROOF

main63111-08320i202211

main63111-08330i202211

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-08050i202211

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-08060i202211

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-08050i202211

9010508323

main90105-08323

90105C0118

main90105-C0118

90119C0416

main90119-C0416

11 parts on this diagram · 5 diagrams in section

ROOF PANEL & BACK PANEL for Toyota GRANVIA HYBRID

This section contains 65 genuine Toyota parts for the ROOF PANEL & BACK PANEL system of the Toyota GRANVIA HYBRID. Key components include: PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2, FRAME SUB-ASSY, BACK WINDOW, UPPER, REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5.
