Toyota GRANVIA HYBRID — REAR DOOR WINDOW REGULATOR & HINGE

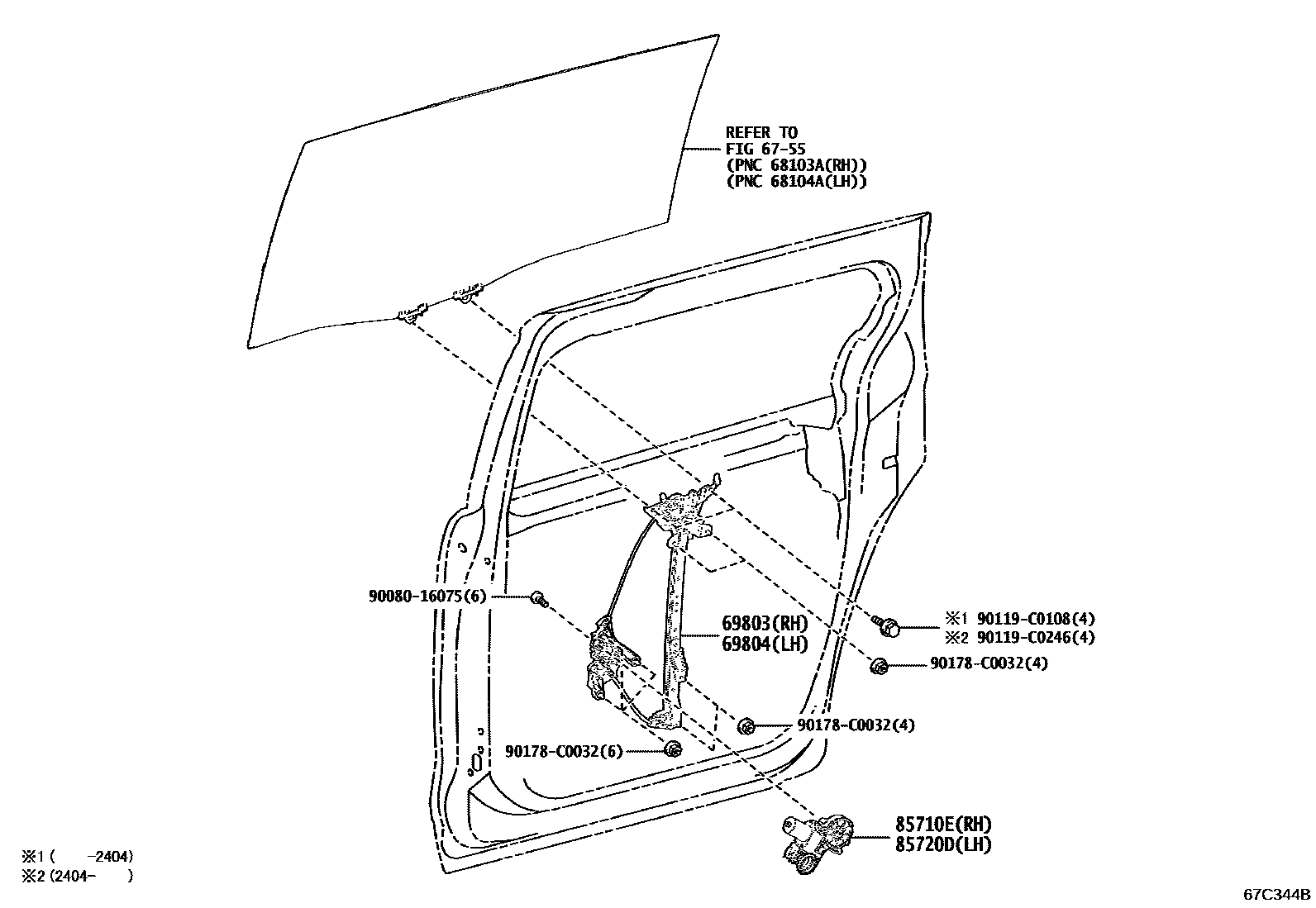

Parts diagram

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-08050i202211

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-08050i202211

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-08120i202211

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-08120i202211

9008016075

main90080-16075

90119C0108

main90119-C0108

90119C0246

main90119-C0246

90178C0032

main90178-C0032

8 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota GRANVIA HYBRID

This section contains 8 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota GRANVIA HYBRID. Key components include: REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, MOTOR ASSY, POWER WINDOW REGULATOR, RH, MOTOR ASSY, POWER WINDOW REGULATOR, LH.
