Toyota GRANVIA/GRAND HIACE — WINDSHIELD WIPER

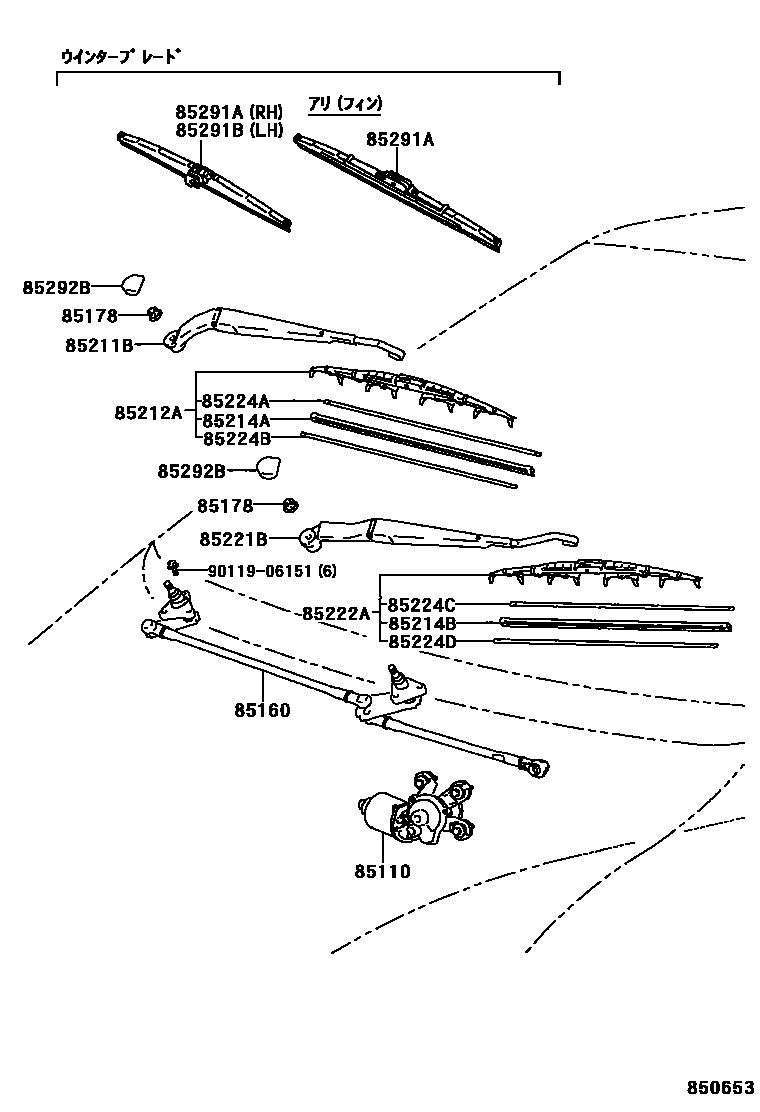

Parts diagram
85110MOTOR ASSY, WINDSHIELD WIPER
main85110-26060i199508-199708
main85110-26120i199804-200501
main85110-26150i199708-200501
85160LINK ASSY, WINDSHIELD WIPER
main85150-26060i199508-199708
main85150-26061i199708-200501
85178NUT (FOR FRONT WIPER ARM SETTING)
main90179-08113i199508-200501
85211BARM, FRONT WIPER, RH
main85211-26020i199508-199708
main85211-26021i199708-199804
main85211-26070i199804-200501
85212ABLADE, FR WIPER, RH
main85212-26030i199508-199608
sub85212-32241
main85212-26060i199608-199804
sub85212-36040
main85212-26090i199804-200501
sub85212-30370
85214ARUBBER, WIPER, RH
main85214-20280i199608-199804
sub85214-48031
main85214-33060i199508-199608
sub85214-40080
main85214-44010i199804-199907
sub85214-50120
main85214-50120i199907-200501
sub85214-50100
85214BRUBBER, WIPER, LH
main85214-20280i199608-200501
sub85214-48031
main85214-33060i199508-199608
sub85214-40080
85221BARM, FRONT WIPER, LH
main85221-26020i199508-199708
main85221-26021i199708-199804
main85221-26060i199804-200501
85222ABLADE, FR WIPER, LH
main85222-26030i199508-199608
main85222-26070i199608-200501
sub85222-26071
85224APLATE, WIPER RUBBER BACKING, NO.1
main85224-20280i199608-199804
main85224-26070i199804-200501
sub85224-44010
main85224-36010i199508-199608
sub85224-33050
85224BPLATE, WIPER RUBBER BACKING, NO.2
main85224-20280i199608-199804
main85224-26080i199804-200501
sub85224-44010
main85224-36020i199508-199608
sub85224-33050
85224CPLATE, WIPER RUBBER BACKING, NO.3
main85224-26020i199608-200501
main85224-36030i199508-199608
85224DPLATE, WIPER RUBBER BACKING, NO.4
main85224-26020i199608-200501
main85224-36040i199508-199608
85291ABLADE, FRONT WIPER, WINTER, RH
main85291-22050i199508-199708
sub85291-33060
main85291-26010i199708-199804
sub85291-33060
main85291-26030i199804-199907
sub85291-50060
main85291-26040i199804-199907
sub85291-50070
main85291-26060i199708-199804
sub85291-30050
main85291-30050i199605-199708
main85291-50060i199907-200501
main85291-50070i199907-200501
85291BBLADE, FRONT WIPER, WINTER, LH
main85291-24060i199508-199708
sub85291-24110
main85291-24110i199907-200501
main85291-26020i199708-199907
sub85291-24110
85292BCAP, FRONT WIPER ARM HEAD
main85292-26010i199508-200501
9011906151
main90119-06151

17 parts on this diagram · 1 diagram in section
