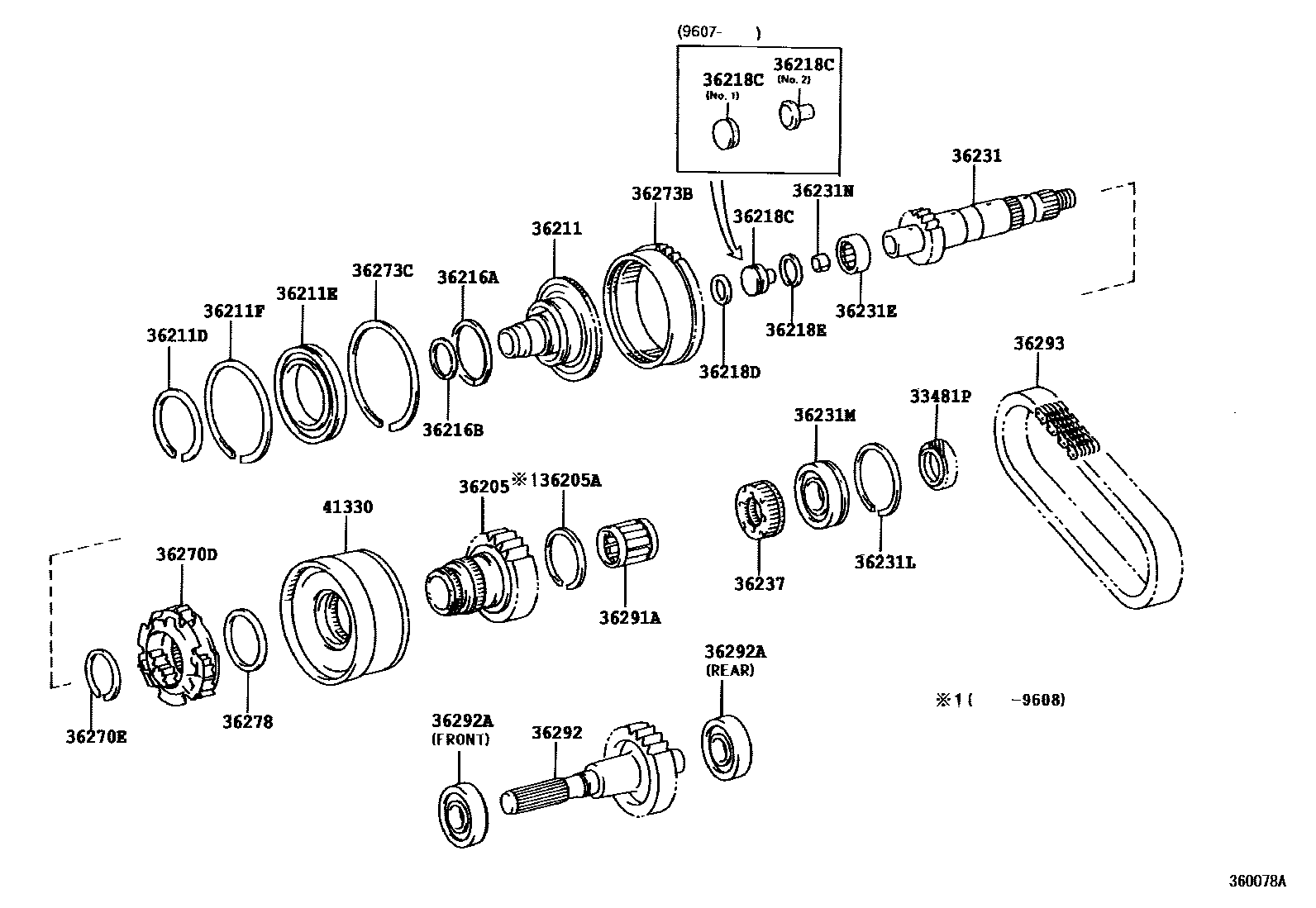

Toyota GRANVIA/GRAND HIACE — TRANSFER GEAR
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
36205ARING, SHAFT SNAP
36211SHAFT, TRANSFER INPUT
36211DRING, HOLE SNAP (FOR TRANSFER INPUT SHAFT)
36211EBEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT)
36211FRING, SHAFT SNAP (FOR TRANSFER INPUT SHAFT)
36216ARING, TRANSFER INPUT SHAFT SEAL, NO.1
36216BRING, TRANSFER INPUT SHAFT SEAL, NO.2
36218CPLUG, TRANSFER INPUT SHAFT
36218DRING, O (FOR TRANSFER INPUT SHAFT PLUG)
36218ERING, HOLE SNAP (FOR TRANSFER INPUT SHAFT PLUG)
36231EBEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT)
36231LRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT REAR)
36231MBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
36231NPIN, SLOTTED SPRING (FOR TRANSFER OUTPUT SHAFT REAR)
36270DGEAR ASSY, MANUAL TRANSFER PLANETARY
36270ERING, SHAFT SNAP (FOR MANUAL TRANSFER PLANETARY GEAR)
36273BGEAR, MANUAL TRANSFER PLANETARY RING
36273CRING, HOLE SNAP (FOR MANUAL TRANSFER PLANETARY RING GEAR)
36291ABEARING (FOR TRANSFER DRIVE SPROCKET)
36292SPROCKET, TRANSFER DRIVEN
36293CHAIN, TRANSFER FRONT DRIVE
27 parts on this diagram · 2 diagrams in section
