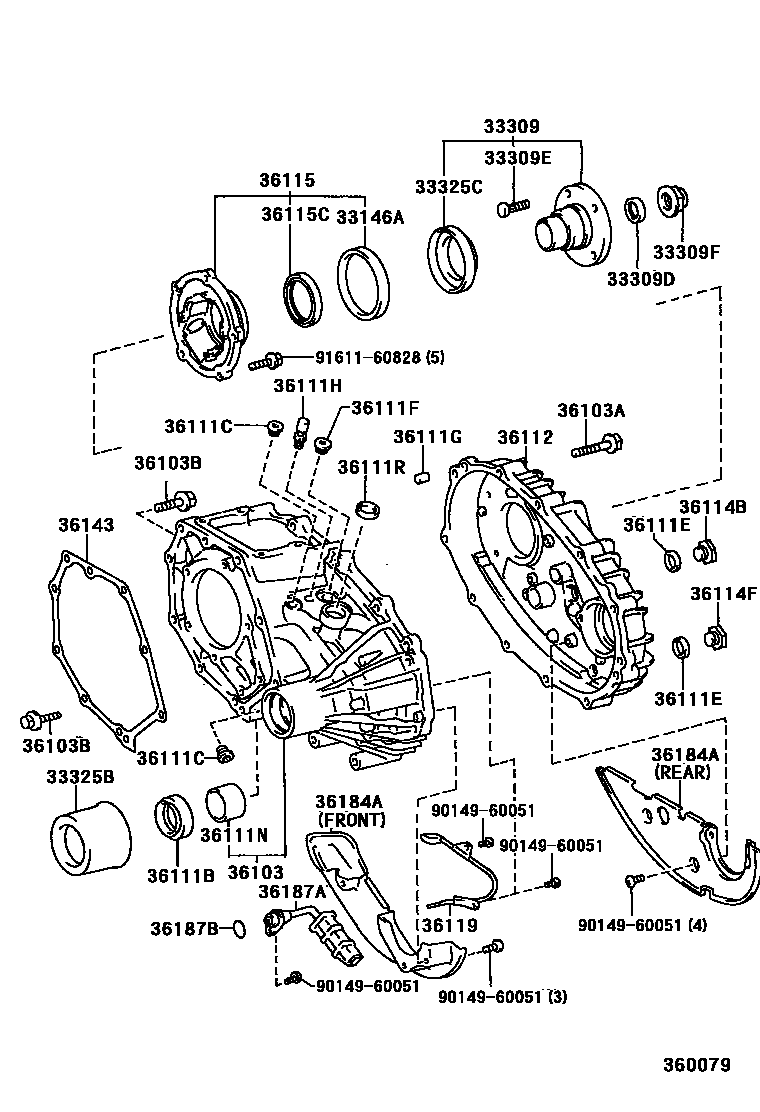

Toyota GRANVIA/GRAND HIACE — TRANSFER CASE & EXTENSION HOUSING
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
33309FLANGE SUB-ASSY, TRANSFER OUTPUT SHAFT COMPANION
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309EBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309FNUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33325BDEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING)
33325CDEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING)
36103CASE SUB-ASSY, TRANSFER
36103BBOLT (FOR TRANSFER CASE & ADAPTER SETTING)
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111NBUSH (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36115HOUSING, TRANSFER EXTENSION
36119RECEIVER, TRANSFER OIL, NO.1
36143GASKET, TRANSFER CASE, FRONT
36184ASEPARATOR, TRANSFER OIL
36187ASTRAINR, TRANSFER OIL, NO.1
36187BRING, O (FOR TRANSFER OIL STRAINER)
9014960051
main90149-60051
9161160828
main91611-60828
30 parts on this diagram · 2 diagrams in section
