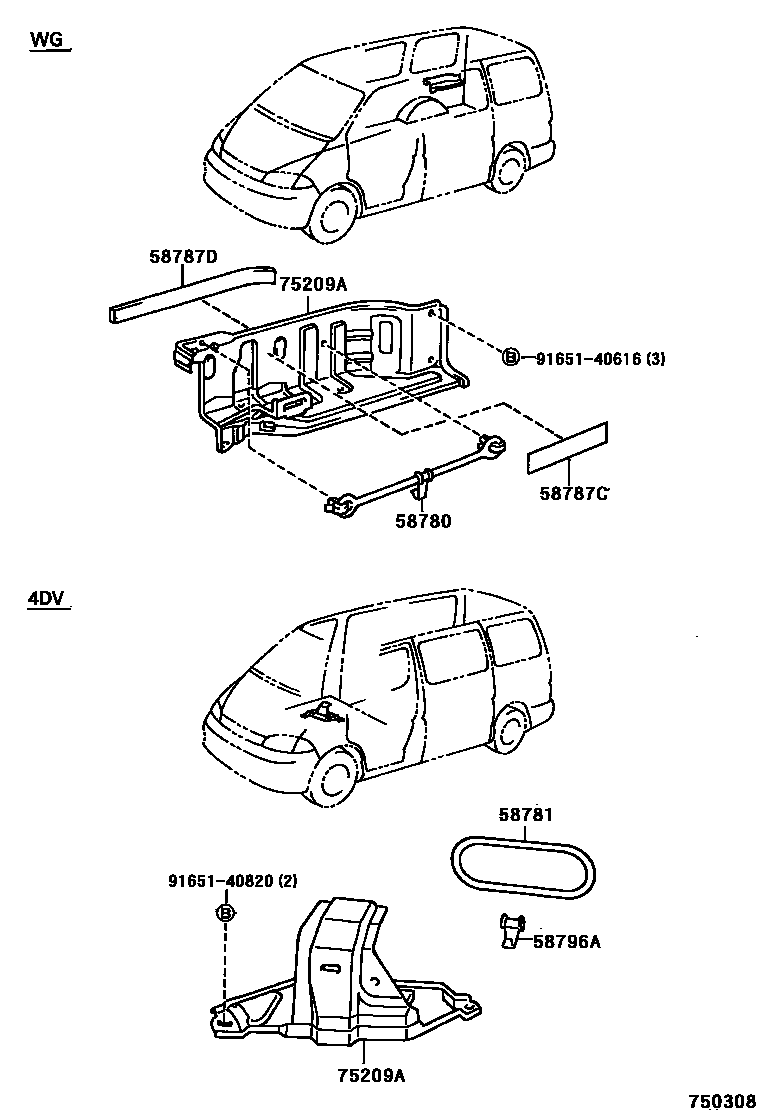

Toyota GRANVIA/GRAND HIACE — TOOL BOX & LICENSE PLATE BRACKET

58780BAND ASSY, TOOL BOX

main58780-26010iKCH1#,VCH1#199508-200205

58781BAND, TOOL BAG

main58781-95D00iKCH12199508-199708

58787CPACKING, JACK BOX HOLE COVER

main58787-26020iVCH1#..5D199708-200205

58787DPACKING, JACK BOX HOLE COVER

main58787-26030iKCH1#,VCH1#..5D199708-200205

58796AHOOK, JACK CLAMP

main58796-20012iKCH12199508-199708

75209ABASE SUB ASSY, JACK HOLDER

main75209-26020iKCH12199508-199708

main75209-26030iKCH10,16,RCH11,VCH1#..4D199508-200205

main75209-26050iVCH1#..5D199708-200205

9165140616

main91651-40616

9165140820

main91651-40820

8 parts on this diagram · 1 diagram in section
