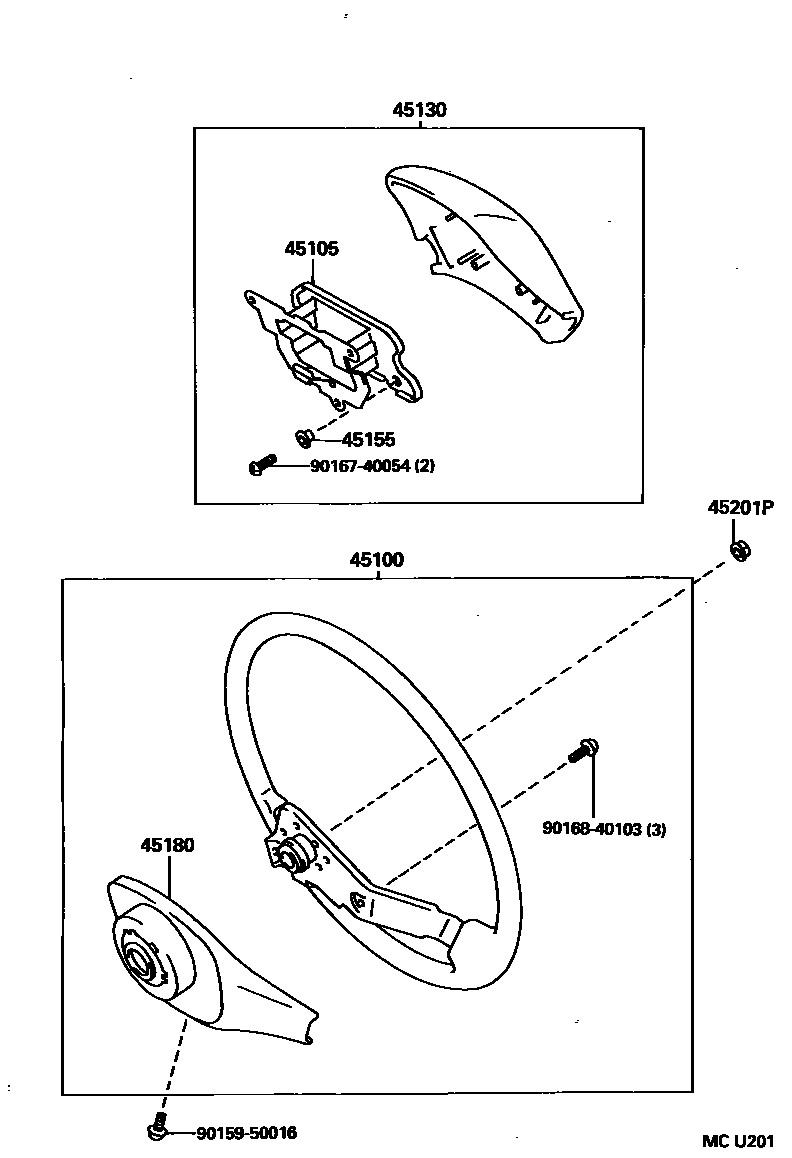

Toyota GRANVIA/GRAND HIACE — STEERING WHEEL

0001 1PP(����������) 0002 1���� 0003 12-SPOKE,��(*80) 0004 14-SPOKE,��(*80)

45100WHEEL ASSY, STEERING

main45100-0W040-E0iKCH1#,VCH1#..G199804-199907

main45100-0W040-E0iKCH1#,VCH1#..Q199708-199907

main45100-26210-B0iKCH10,16,RCH11199508-199708

sub45100-26210

main45100-26220-B0iKCH12199508-199708

sub45100-26220

main45100-26230-B0iKCH12199508-199708

sub45100-26230

main45100-26280-B0iKCH1#,RCH11,VCH1#..G199708-199907

sub45100-26280

main45100-26280-E0iKCH1#,VCH1#..Q199708-199907

sub45100-26280

main45100-26300-E1iKCH1#,VCH1#,2#199907-200501

sub45100-26300

main45100-26330-E1iKCH1#,VCH1#199907-200108

sub45100-26330

main45100-26330-E1iVCH1#..4D200108-200204

sub45100-26330

main45100-26330-E2iKCH1#,VCH1#200108-200205

sub45100-26330

main45100-26330-E3iKCH1#,VCH1#..G..5D200108-200204

sub45100-26330

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-12200iKCH12199508-199708

main45105-26100iKCH12199508-199708

45130BUTTON ASSY, HORN

main45130-26240-B0iKCH12199508-199708

sub45130-26240

main45130-26250-B0iKCH10,16,RCH11199508-199708

sub45130-26250

main45130-26260-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

sub45130-26260

main45130-26270-B0iKCH1#,RCH11,VCH1#..G199708-199907

BLUISH GRAY,TRIM1#

sub45130-26270

main45130-26270-E0iKCH1#,VCH1#..Q199708-199907

SANDAL WOOD,TRIM4#

sub45130-26270

main45130-26270-E0iKCH1#,VCH1#..G199804-199907

sub45130-26270

main45130-26330-E1iKCH1#,VCH1#,2#199907-200501

SANDAL WOOD,TRIM0#

sub45130-26320

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-12050iKCH12199508-199708

45180COVER SUB-ASSY, STEERING WHEEL

main45180-26030-B0iKCH12199508-199708

sub45180-26030

main45180-26040-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

sub45180-26040

45201PNUT, STEERING WHEEL SET

main90179-12071iKCH1#,RCH11,VCH1#199508-200501

9015950016

main90159-50016

9016740054

main90167-40054

9016840103

main90168-40103

9 parts on this diagram · 4 diagrams in section
