Toyota GRANVIA/GRAND HIACE — SLIDE ROLLER & RAIL

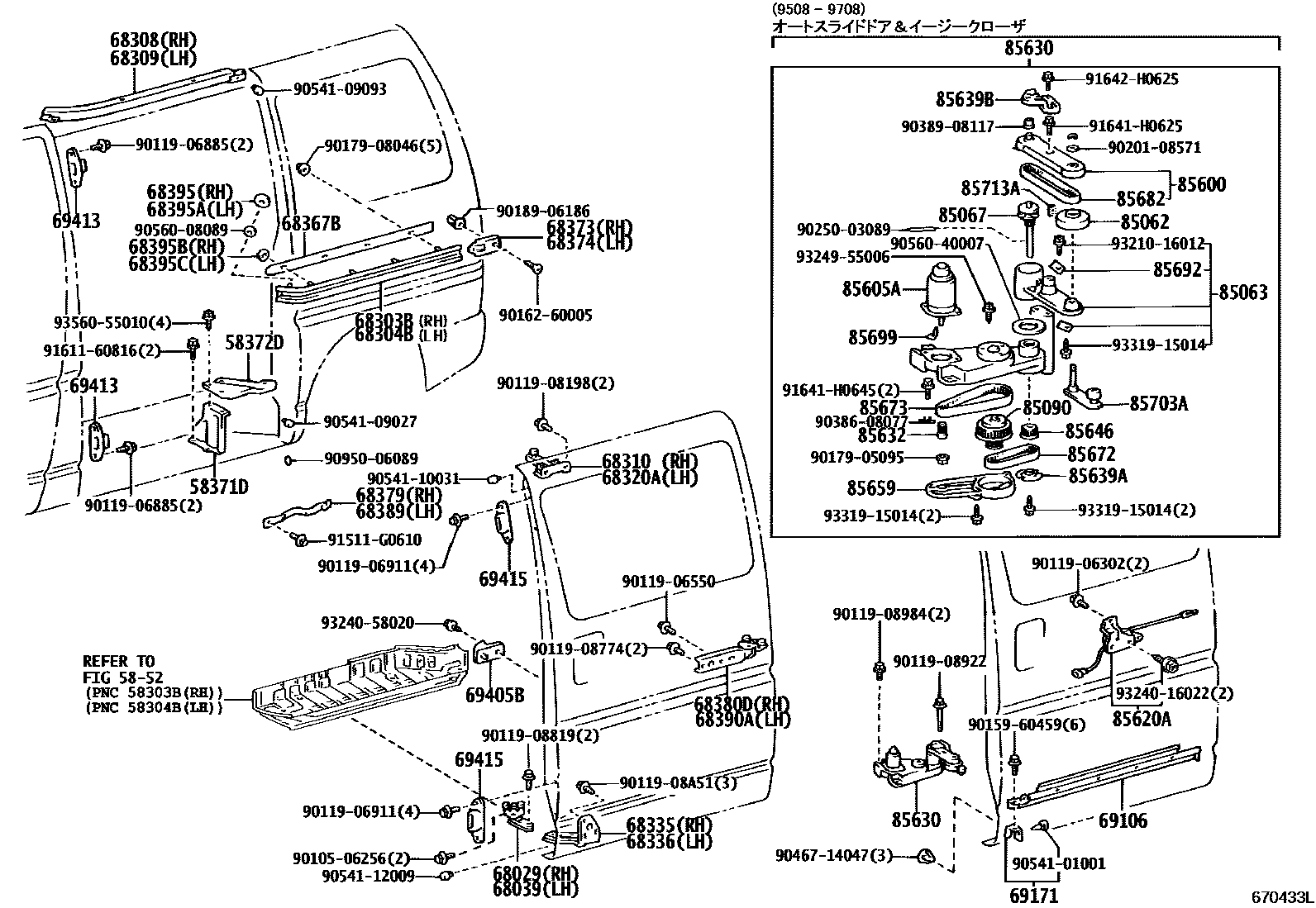

Parts diagram
58371DCOVER, REAR FLOOR STEP, NO.1
main58371-26010i199508-199708
main58371-26020i199804-199907
main58371-26020i199708-200205
58372DCOVER, REAR FLOOR STEP, NO.2
main58372-26010i199508-200205
main58372-26010i199804-199907
5852
68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER
main68029-26060i199708-200205
68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH
main68039-26010i199508-199708
sub68039-26070
main68039-26020i199508-200501
main68039-26030i199508-199708
main68039-26030i199608-199708
main68039-26040i199804-200205
main68039-26040i199907-200205
main68039-26040i199708-200205
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
main68303-26040-A0i200004-200107
sub68303-26040
main68303-26040-A0i199708-199907
WHITE PM,2CH
sub68303-26040
main68303-26040-A0i199907-200205
WHITE PM,2FX
sub68303-26040
main68303-26040-A1i200108-200204
sub68303-26040
main68303-26040-B0i199708-200205
SILVER ME,2BW
sub68303-26040
main68303-26040-B1i200004-200205
SILVER ME.,1C0 ,2FY
sub68303-26040
main68303-26040-B1i199907-200205
SILVER ME.,2FY
sub68303-26040
main68303-26040-C0i200108-200204
sub68303-26040
main68303-26040-C0i199907-200205
BLACK MC.,2FW
sub68303-26040
main68303-26040-D0i199708-200205
LT.GRAISH ROSE OP,2CJ
sub68303-26040
main68303-26040-H0i199708-199907
DEEP TEAL ME,2BA
sub68303-26040
main68303-26040-K0i199708-199907
DP.PURPLE MC .,2EC
sub68303-26040
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
main68304-26010i199508-199907
main68304-26020-A0i199804-199907
sub68304-26020
main68304-26020-A0i199604-199607
sub68304-26020
main68304-26020-A0i199708-199907
WHITE PEARL MC.,2CH
sub68304-26020
main68304-26020-A0i199708-199907
WHITE PEARL MC.,2CH ,2EE
sub68304-26020
main68304-26020-A0i200004-200107
sub68304-26020
main68304-26020-A0i199907-200205
WHITE PEARL MC.,2FX ,2GD
sub68304-26020
main68304-26020-A0i199907-200205
WHITE PEARL MC.,2FX
sub68304-26020
main68304-26020-A0i199608-199708
sub68304-26020
main68304-26020-A0i199609-199708
sub68304-26020
main68304-26020-A1i200108-200204
sub68304-26020
main68304-26020-B0i199601-200205
SILVER ME,2BW
sub68304-26020
main68304-26020-B2i199907-200205
SILVER ME.,1C0 ,2FY
sub68304-26020
main68304-26020-B2i199907-200205
SILVER ME.,2FY
sub68304-26020
main68304-26020-C0i200108-200204
sub68304-26020
main68304-26020-C0i199907-200205
BLACK MC.,2FW
sub68304-26020
main68304-26020-D0i199608-200205
LT.GRAISH ROSE OP,2CJ
sub68304-26020
main68304-26020-G0i199508-199708
GRAYISH BREEN M,2AZ
sub68304-26020
main68304-26020-G1i199508-199608
GR. GREEN ME,2BP
sub68304-26020
main68304-26020-H0i199608-199907
DEEP TEAL ME,2BA
sub68304-26020
main68304-26020-K0i199708-199907
DP.PURPLE MC .,2EC
sub68304-26020
main68304-26100-A0i199907-200307
SUPER WHITE 2,040
sub68304-26100
main68304-26100-A1i199907-200307
WHITE PM,2GD
sub68304-26100
main68304-26100-A2i200304-200501
WHITE,058
sub68304-26100
main68304-26100-B0i199907-200405
SILVER ME,199
sub68304-26100
main68304-26100-B1i200405-200501
SILVER M.M.,1E7
sub68304-26100
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
main68308-26020i199708-200205
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
main68309-26020i199508-200501
68310ROLLER ASSY, SLIDE DOOR, UPPER
main68310-26020i199708-200205
68320AROLLER ASSY, SLIDE DOOR, UPPER, LH
main68320-26010i199508-200501
68335PAD, SLIDE DOOR UPPER RAIL
main68335-26020i199708-200205
68336ARM, SLIDE DOOR LOWER ROLLER, LH
main68336-26030i199508-200501
68367BPAD, SLIDE DOOR CENTER RAIL
main68367-26010i199508-199705
sub68367-26020
main68367-26020i199705-200205
main68367-26030i199907-200501
68373MOULDING, SLIDE RAIL END, RH
main68373-26030-A0i199708-199907
WHITE PM,2CH
sub68373-26030
main68373-26030-A0i199907-200205
WHITE PM,2FX
sub68373-26030
main68373-26030-A0i200004-200107
sub68373-26030
main68373-26030-A1i200108-200204
sub68373-26030
main68373-26030-B0i199708-200205
SILVER ME,2BW
sub68373-26030
main68373-26030-B1i200004-200205
SILVER ME.,1C0 ,2FY
sub68373-26030
main68373-26030-B1i199907-200205
SILVER ME.,2FY
sub68373-26030
main68373-26030-C0i200108-200204
sub68373-26030
main68373-26030-C0i199907-200205
BLACK MC.,2FW
sub68373-26030
main68373-26030-D0i199708-200205
LT.GRAISH ROSE OP,2CJ
sub68373-26030
main68373-26030-H0i199708-199907
DEEP TEAL ME,2BA
sub68373-26030
main68373-26030-K0i199708-199907
DP.PURPLE MC .,2EC
sub68373-26030
68374MOULDING, SLIDE RAIL END, LH
main68374-26010i199508-199907
main68374-26020-A0i199708-199907
WHITE PEARL MC.,2CH
sub68374-26020
main68374-26020-A0i199604-199607
sub68374-26020
main68374-26020-A0i199608-199708
sub68374-26020
main68374-26020-A0i199609-199708
sub68374-26020
main68374-26020-A0i199708-199907
WHITE PEARL MC.,2CH ,2EE
sub68374-26020
main68374-26020-A0i199804-199907
sub68374-26020
main68374-26020-A0i200004-200107
sub68374-26020
main68374-26020-A0i199907-200205
WHITE PEARL MC.,2FX ,2GD
sub68374-26020
main68374-26020-A0i199907-200205
WHITE PEARL MC.,2FX
sub68374-26020
main68374-26020-A0i199907-200307
WHITE PEARL MC.,2GD
sub68374-26020
main68374-26020-A1i199907-200307
SUPER WHITE 2,040
sub68374-26020
main68374-26020-A2i200108-200204
sub68374-26020
main68374-26020-A3i200304-200501
WHITE,058
sub68374-26020
main68374-26020-B0i199907-200405
SILVER ME,199
sub68374-26020
main68374-26020-B0i199601-200205
SILVER ME,2BW
sub68374-26020
main68374-26020-B2i199907-200205
SILVER ME.,2FY
sub68374-26020
main68374-26020-B2i199907-200205
SILVER ME.,1C0 ,2FY
sub68374-26020
main68374-26020-B3i200405-200501
SILVER M.M.,1E7
sub68374-26020
main68374-26020-C0i200108-200204
sub68374-26020
main68374-26020-C0i199907-200205
BLACK MC.,2FW
sub68374-26020
main68374-26020-D0i199608-200205
LT.GRAISH ROSE OP,2CJ
sub68374-26020
main68374-26020-G0i199508-199708
GRAYISH BREEN M,2AZ
sub68374-26020
main68374-26020-G1i199508-199608
GR. GREEN ME,2BP
sub68374-26020
main68374-26020-H0i199608-199907
DEEP TEAL ME,2BA
sub68374-26020
main68374-26020-K0i199708-199907
DP.PURPLE MC .,2EC
sub68374-26020
68379SPRING, SLIDE DOOR CATCH, RH
main68379-26010i199708-199907
sub68379-26011
main68379-26020i199907-200205
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
main68380-26010i199708-200205
68389SPRING, SLIDE DOOR CATCH, LH
main68389-26010i199508-199907
sub68389-26040
main68389-26020i199508-199708
main68389-26020i199608-199708
main68389-26050i199907-200501
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
main68390-26020i199508-200501
68395PACKING, SLIDE DOOR CENTER RAIL
main68395-26010i199708-200205
68395APACKING, SLIDE DOOR CENTER RAIL
main68395-26010i199508-200501
68395BPACKING, SLIDE DOOR CENTER RAIL
main68395-95J00i199708-200205
68395CPACKING, SLIDE DOOR CENTER RAIL
main68395-95J00i199508-200501
69106RAIL SUB-ASSY, POWER SLIDE DOOR
main69106-26010i199508-199708
69171BRACKET, POWER SLIDE DOOR RAIL
main69171-26010i199508-199708
69405BSTOP SUB-ASSY, SLIDE DOOR OPEN
main69405-26010i199508-199907
main69405-26020i199508-199907
main69405-26020i199608-199907
main69405-26020i199804-199907
main69405-26030-E0i199907-200205
SANDAL WOOD,TRIM0#
sub69405-26050
sub69405-26030
main69405-26040-E0i199907-200205
sub69405-26040
main69405-26050i199907-200501
69413STOP, SLIDE DOOR DOWN MALE
main69416-26010i199608-200501
main69416-95J01i199508-199608
69415STOPPER, SLIDE DOOR DOWN FEMALE
main69415-26010i199508-200501
85062ROLLER SUB-ASSY, DRIVE
main85062-26010i199508-199708
85063ARM SUB-ASSY, SLIDE DOOR MOTOR
main85063-26020i199508-199708
85067GEAR SUB-ASSY, SLIDE DOOR, NO.1
main85067-26010i199508-199708
85090CLUTCH ASSY, SLIDE DOOR MOTOR
main85090-26010i199508-199708
main85090-26030i199708-200205
85600PULLEY ASSY, DRIVE ROLLER
main85600-26010i199508-199708
85605AMOTOR SUB-ASSY, SLIDE DOOR
main85605-26010i199508-199708
main85605-26030i199708-200205
85620AMOTOR ASSY, SLIDE DOOR LOCK RELEASE, LH
main85620-26010i199508-199708
main85620-26030i199708-199907
main85620-26040i199907-200205
85630MOTOR ASSY, SLIDE DOOR
main85006-26010i199708-199811
sub85006-26011
main85006-26011i199811-199812
sub85006-26012
main85006-26012i199812-200205
main85630-26020i199508-199708
85632PULLEY, SLIDE DOOR MOTOR
main85632-26010i199508-199708
85639ACAM, AUTO DOOR STOPPER, NO.1
main85659-26040i199508-199708
85639BSUPPORT, SLIDE DOOR MOTOR ARM
main85639-26010i199508-199708
85646PULLEY, MAIN
main85646-26010i199508-199708
main85646-26020i199708-200205
85659COVER, BELT
main85064-26020i199708-200205
main85659-26030i199508-199708
85672BELT, CLUTCH TO MAIN PULLEY
main85672-26010i199508-199708
main85672-26020i199708-200205
85673BELT, SLIDE DOOR MOTOR
main85673-26010i199508-199708
main85673-26030i199708-200205
85682BELT, DRIVE ROLLER
main85682-26010i199508-199708
85692STOPPER, SLIDE DOOR MOTOR GEAR
main85692-26010i199508-199708
85699BRACKET, SLIDE DOOR MOTOR CONNECTOR
main85699-26011i199508-199708
main85699-26020i199708-200205
85703AROLLER SUB-ASSY, GUIDE
main85703-26020i199508-199708
85713APIECE, SEAL
main83713-95J00i199508-199708
9010506256
main90105-06256
9011906302
main90119-06302
9011906550
main90119-06550
9011906885
main90119-06885
9011906911
main90119-06911
9011908198
main90119-08198
9011908774
main90119-08774
9011908819
main90119-08819
9011908922
main90119-08922
9011908984
main90119-08984
9011908A51
main90119-08A51
9015960459
main90159-60459
9016260005
main90162-60005
9017905095
main90179-05095
9017908046
main90179-08046
9018906186
main90189-06186
9020108571
main90201-08571
9025003089
main90250-03089
9038608077
main90386-08077
9038908117
main90389-08117
9046714047
main90467-14047
9054101001
main90541-01001
9054109027
main90541-09027
9054109093
main90541-09093
9054110031
main90541-10031
9054112009
main90541-12009
9056008089
main90560-08089
9056040007
main90560-40007
9095006089
main90950-06089
91511G0610
main91511-G0610
9161160816
main91611-60816
91641H0625
main91641-H0625
91641H0645
main91641-H0645
91642H0625
main91642-H0625
9321016012
main93210-16012
9324016022
main93240-16022
9324058020
main93240-58020
9324955006
main93249-55006
9331915014
main93319-15014
9356055010
main93560-55010

89 parts on this diagram · 3 diagrams in section
