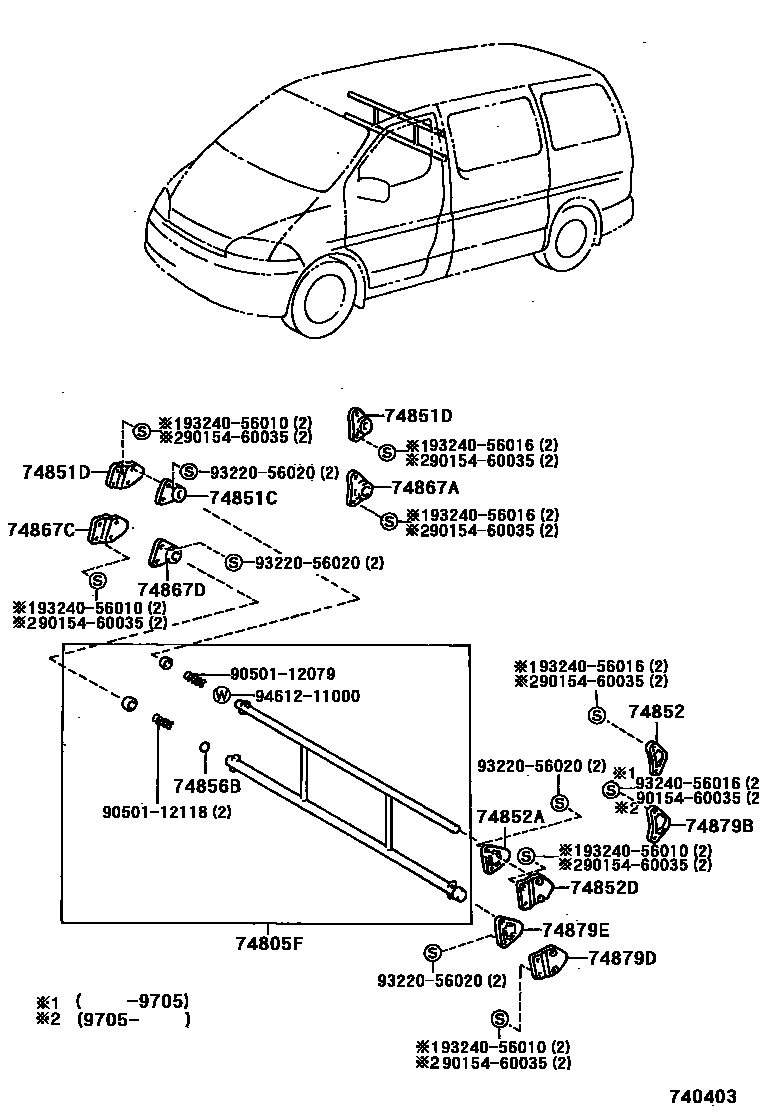

Toyota GRANVIA/GRAND HIACE — SEPARATOR & SEPARATOR CURTAIN

74805FBAR SUB-ASSY, SEPARATOR, A

main74810-26030-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

74851CBRACKET, SEPARATOR, UPPER RH

main74851-95J05-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

74851DBRACKET, SEPARATOR BAR, UPPER RH

main74851-26020-B0iKCH12199508-199708

main74851-95J01-B0iKCH12199508-199708

sub74851-95J01

74852BRACKET, SEPARATOR, RH

main74852-95J00-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

sub74852-95J00

74852ABRACKET, SEPARATOR, UPPER LH

main74852-95J05-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

74852DBRACKET, SEPARATOR BAR, UPPER LH

main74852-2F020-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

74856BPLATE, SPRING SET

main74856-95A00iKCH12199508-199708

74867ABRACKET, SEPARATOR BAR, NO.4

main74867-95J00-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

sub74867-95J00

74867CBRACKET, SEPARATOR BAR, LOWER

main74867-26010-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

74867DBRACKET, SEPARATOR BAR, LOWER

main74867-95J03-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

74879BBRACKET, SEPARATOR BAR, LOWER LH

main74879-95J01-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

sub74879-95J01

74879DBRACKET, SEPARATOR BAR, LOWER LH

main74879-26010-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

74879EBRACKET, SEPARATOR BAR, LOWER LH

main74879-95J02-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

9015460035

main90154-60035

9050112079

main90501-12079

9050112118

main90501-12118

9322056020

main93220-56020

9324056010

main93240-56010

9324056016

main93240-56016

9461211000

main94612-11000

20 parts on this diagram · 1 diagram in section
