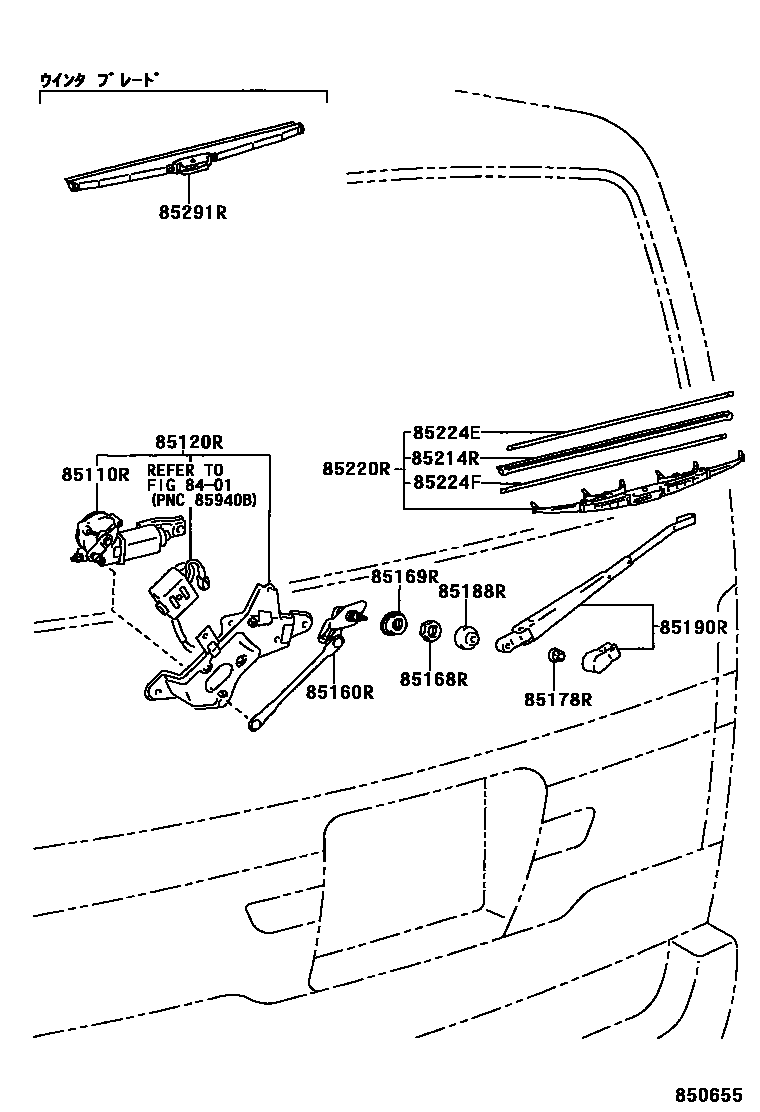

Toyota GRANVIA/GRAND HIACE — REAR WIPER

8401

85110RMOTOR ASSY, REAR WIPER

main85130-26070iKCH1#,VCH1#,2#199907-200501

sub85130-26071

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85080-26020iKCH1#,RCH11,VCH1#199508-199907

main85080-26040iKCH1#,VCH1#,2#199907-200501

sub85080-26041

85160RLINK ASSY, REAR WIPER

main85170-26030iKCH1#,RCH11,VCH1#199508-200501

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main85168-95700iKCH1#,RCH11,VCH1#199508-200501

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85134-26050iKCH1#,RCH11,VCH1#199508-200501

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06125iKCH1#,VCH1#199905-200501

main90179-06158iKCH1#,RCH11,VCH1#199508-199905

85188RCAP, REAR WIPER PIVOT, NO.1

main85178-95J00iKCH1#,RCH11,VCH1#199508-200501

85190RARM ASSY, REAR WIPER

main85241-26010iKCH1#,VCH1#,2#199508-200501

85214RRUBBER, REAR WIPER

main85214-20420iKCH1#,RCH11,VCH1#199608-200501

main85214-22360iKCH1#,RCH11199508-199608

sub85214-20330

85220RBLADE ASSY, REAR WIPER

main85242-26010iKCH1#,RCH11199508-199608

sub85242-22040

main85242-26030iKCH1#,RCH11,VCH1#199608-200501

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-1G010iKCH1#,RCH11,VCH1#199608-200501

main85224-60050iKCH1#,RCH11199508-199608

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-1G010iKCH1#,RCH11,VCH1#199608-200501

main85224-60050iKCH1#,RCH11199508-199608

85291RBLADE,REAR WIPER, WINTER

main85291-33050iKCH1#,VCH1#,2#199907-200501

main85291-60020iKCH1#,RCH11,VCH1#199508-199907

sub85291-33050

14 parts on this diagram · 1 diagram in section
