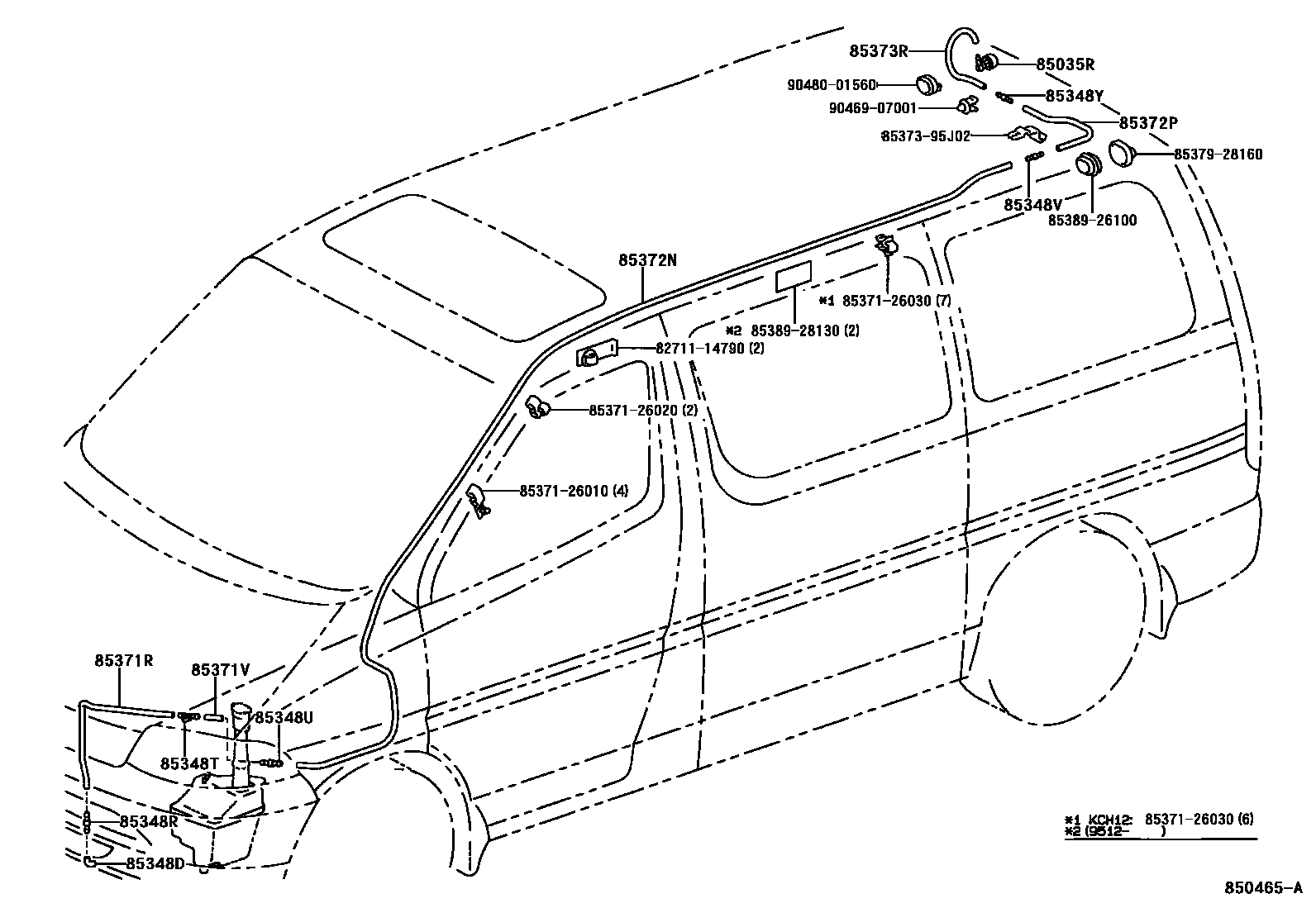

Toyota GRANVIA/GRAND HIACE — REAR WASHER

0001 1 0002 1 0003 1�����

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-26010iKCH1#,RCH11,VCH1#199508-200205

main85391-26010iVCH2#200003

main85391-26030iVCH2#199907-200501

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481iKCH1#,RCH11,VCH1#199508-200003

85348RJOINT, REAR WASHER HOSE, NO.1

main85031-90A00iKCH1#,RCH11199508-199608

sub85375-12520

main85349-89122iKCH1#,RCH11,VCH1#199702-199907

main85375-12520iKCH1#,RCH11199608-199702

85348TJOINT, REAR WASHER HOSE, NO.2

main85375-20800iKCH1#,VCH1#,2#199508-200501

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iKCH1#,VCH1#,2#199508-200501

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iVCH2#199508-200501

main85355-20200iKCH1#,VCH1#200005-200205

main85355-20200iVCH2#200003

85348YJOINT, REAR WASHER HOSE, NO.5

main85031-12250iKCH1#,RCH11199605-199702

main85349-89122iKCH1#,RCH11199508-200501

main85375-10260iKCH1#,VCH1#199702-200205

main85375-10260iVCH2#200003

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iKCH1#,RCH11,VCH1#199508-200003

main90446-07001iKCH1#,VCH1#,2#200003-200012

main90446-07001iKCH1#,VCH1#,2#200012-200501

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main90099-33080iKCH1#,RCH11,VCH1#199608-200501

main90099-33299iKCH1#,RCH11199508-199608

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iVCH2#200003

main90099-59142iKCH1#,RCH11,VCH1#199508-200205

sub90099-33595

main90446-07001iVCH2#199907-200501

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-33299iKCH1#,RCH11,VCH1#199612-200205

main90099-33299iKCH1#,RCH11199609-199612

main90099-33299iVCH2#199907-200501

main90099-33299iVCH2#200003

main90099-59143iKCH1#,RCH11199508-199609

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-59110iVCH2#200003

main90099-59110iKCH1#,RCH11,VCH1#199508-200205

main90099-59224iVCH2#199907-200501

8271114790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14790

8537126010HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26010

8537126020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26020

8537126030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-26030

8537395J02HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-95J02

8537928160JOINT

main85379-28160

8538926100PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-26100

8538928130PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-28130

9046907001

main90469-07001

9048001560

main90480-01560

22 parts on this diagram · 3 diagrams in section
