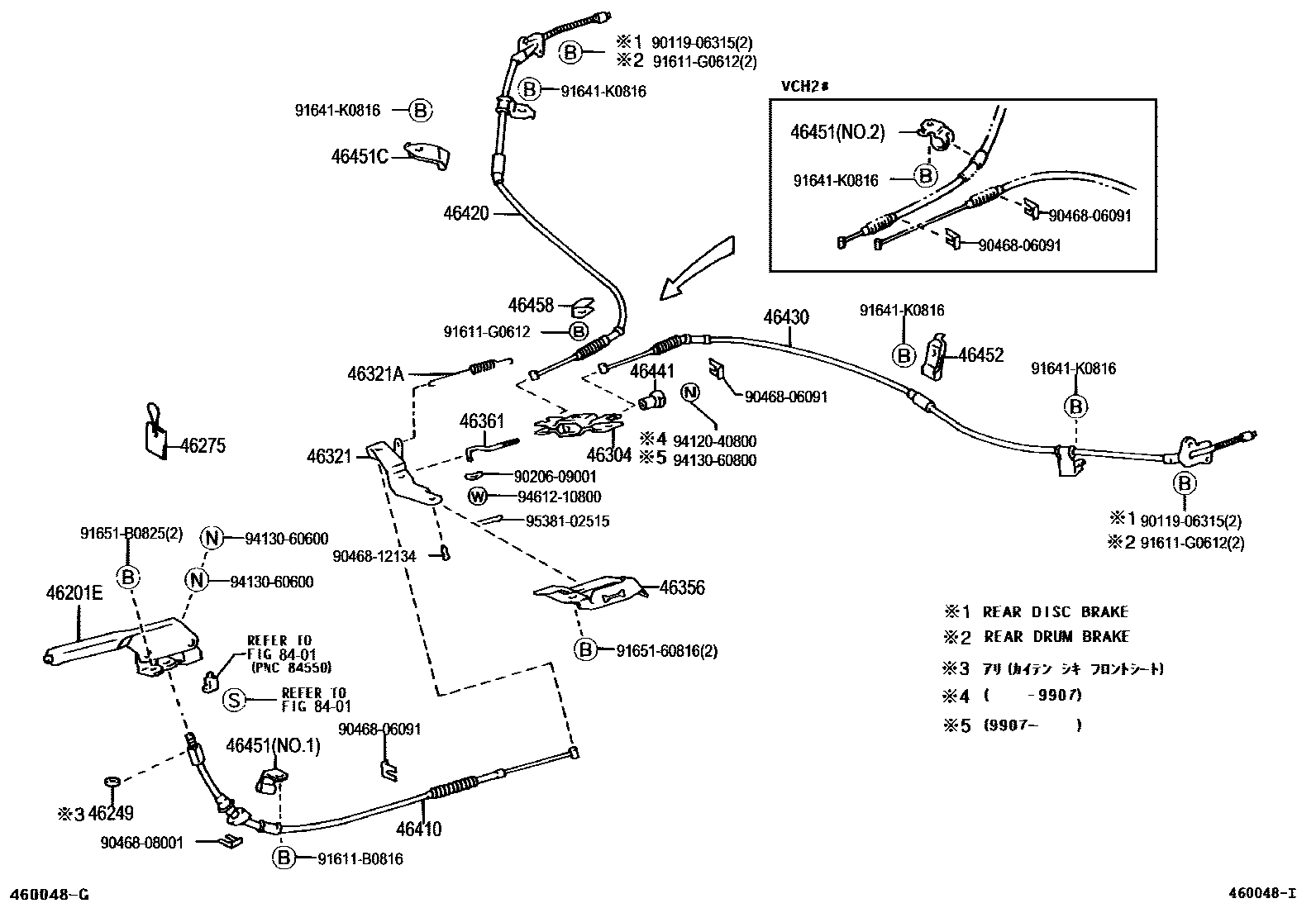

Toyota GRANVIA/GRAND HIACE — PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26030-B0iKCH12199508-199708

BLUISH GRAY,TRIM1#

main46201-26040-B0iKCH10,16,RCH11199508-199708

BLUISH GRAY,TRIM1#

sub46201-26040

main46201-26060-B0iKCH1#,RCH11,VCH1#..G199708-199907

BLUISH GRAY,TRIM1#

main46201-26060-E0iKCH1#,VCH1#199907-200205

SANDAL WOOD,TRIM0#

main46201-26060-E0iKCH1#,VCH1#..Q199708-199907

SANDAL WOOD,TRIM4#

main46201-26060-E0iKCH1#,VCH1#..G199804-199907

main46201-26091-B0iKCH1#,RCH11,VCH16..G199708-199804

sub46201-26092

sub46275-26031

sub46410-26411

main46201-26092-B0iKCH1#,VCH1#..G199804-199907

sub46201-26092

main46201-26092-E1iKCH1#,VCH1#..4D199907-200205

sub46201-26092

main46201-26092-E1iVCH2#199907-200501

SANDAL WOOD,TRIM0#

sub46201-26092

46249SHIELD, PARKING BRAKE HOLE

main46249-28010iKCH1#,RCH11,VCH1#..G199708-200501

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26030iKCH1#,RCH11,VCH16..G199708-199804

main46275-26031iKCH1#,VCH1#..4D199804-200501

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-28010iKCH1#,RCH11,VCH1#199508-200501

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26180iKCH1#,RCH11,VCH1#199508-200501

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-14067iKCH1#,RCH11,VCH1#199508-200205

main90905-06031iVCH2#199907-200501

46356BRACKET, EQUALIZER SUPPORT

main46356-28031iKCH1#,RCH11,VCH1#199508-200501

46361ROD, PARKING BRAKE PULL

main46361-26070iKCH1#,RCH11,VCH1#199508-200501

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26400iKCH1#,VCH1#199708-200205

main46410-26410iKCH1#,RCH11,VCH16..G199708-199804

main46410-26411iKCH1#,VCH1#..G199804-200205

main46410-26411iVCH2#199907-200501

main46410-26440iKCH1#,RCH11199508-199703

sub46410-26441

main46410-26441iKCH1#,RCH11199703-199708

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26410iKCH10,12,RCH11199508-199708

main46420-26420iKCH16199510-199708

main46420-26510iVCH28199907-200501

main46420-26520iVCH22199907-200501

main46420-26540iKCH10,RCH11,VCH10199708-200205

main46420-26550iKCH16,VCH16199708-200205

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26260iKCH10,12,RCH11199508-199708

main46430-26270iKCH16199510-199708

main46430-26360iVCH28199907-200405

main46430-26361iVCH28200405-200501

main46430-26370iVCH22199907-200405

main46430-26371iVCH22200405-200501

main46430-26390iKCH10,RCH11,VCH10199708-200205

main46430-26400iKCH16,VCH16199708-200205

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iKCH1#,RCH11,VCH1#199508-200501

46451BRACKET, CABLE SUPPORT

main46451-26210iKCH1#,RCH11199508-199611

main46451-26240iKCH1#,RCH11,VCH1#199611-200501

main46452-26131iVCH2#199907-200501

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-26220iKCH1#,RCH11,VCH1#199508-200501

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-26160iKCH1#,VCH1#,2#199508-200405

main46452-26220iVCH2#200405-200501

46458RETAINER, CABLE

main46458-28010iKCH1#,RCH11,VCH1#199508-200205

8401

9011906315

main90119-06315

9020609001

main90206-09001

9046806091

main90468-06091

9046808001

main90468-08001

9046812134

main90468-12134

91611B0816

main91611-B0816

91611G0612

main91611-G0612

91641K0816

main91641-K0816

9165160816

main91651-60816

91651B0825

main91651-B0825

9412040800

main94120-40800

9413060600

main94130-60600

9413060800

main94130-60800

9461210800

main94612-10800

9538102515

main95381-02515

32 parts on this diagram · 2 diagrams in section
