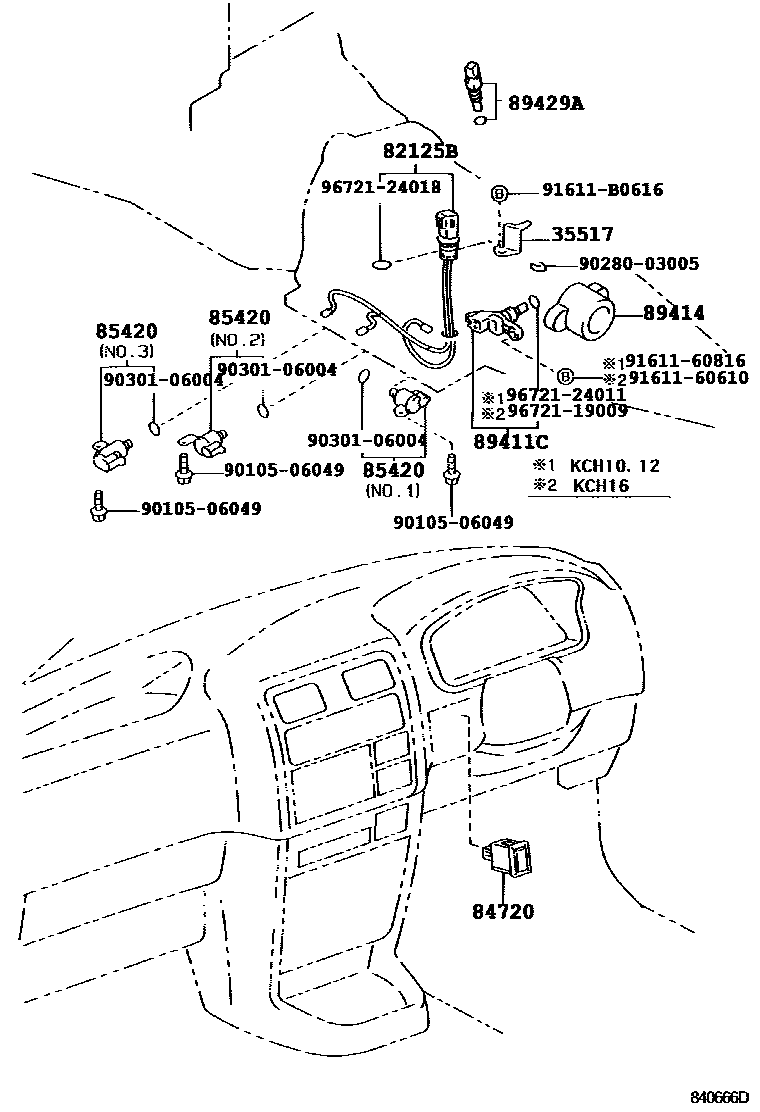

Toyota GRANVIA/GRAND HIACE — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1

35517PLATE, TRANSMISSION WIRE LOCK

main35517-30010iKCH1#,VCH1#199508-200501

82125BWIRE, TRANSMISSION

main82125-22230iVCH1#,2#199907-200501

main82125-28010iRCH11199508-199804

main82125-30400iKCH1#,VCH1#199508-199907

main82125-60310iKCH1#199907-200205

84720SWITCH ASSY, PATTERN SELECT

main84720-20160iKCH1#,RCH11,VCH1#199508-199907

main84720-26040iKCH1#,VCH1#,2#199907-200501

85420SOLENOID ASSY, TRANSMISSION

main35250-30050iVCH1#,2#199907-200501

main35250-30070iVCH1#..4D;VCH1#,2#..DX,QLTD199907-200501

main85420-21090iKCH1#,VCH1#199809-199907

main85420-21100iKCH1#,VCH1#199809-199907

main85420-22150iKCH1#,VCH1#,2#199907-200206

sub35250-30050

main85420-22170iKCH1#,VCH1#,2#199907-200206

sub35250-30070

main85420-30050iRCH11199508-199804

main85420-30070iRCH11199508-199804

main85420-30200iKCH1#,VCH1#199508-199809

sub85420-21090

main85420-30220iKCH1#,VCH1#199508-199809

sub85420-30260

main85420-30260iKCH1#,VCH1#199809-200205

sub35250-50030

main85420-30270iKCH1#199809-200205

sub35250-50030

89411CSENSOR, SPEED

main89411-28020iKCH10199508-200205

main89411-35030iKCH16,VCH16199510-200205

main89411-50010iVCH1#,2#199907-200501

89414ROTOR, SENSOR

main89414-26010iVCH16,28199907-200101

sub89414-60020

main89414-30011iRCH11199508-199804

main89414-30021iKCH10,12,VCH10199508-200205

main89414-35010iKCH16,VCH16199510-200205

main89414-60020iVCH16,28200101-200501

89429ASENSOR, TEMPERATURE

main89429-34010iKCH1#199508-200205

main89429-35042iVCH1#,2#199708-200501

9010506049

main90105-06049

9028003005

main90280-03005

9030106004

main90301-06004

9161160610

main91611-60610

9161160816

main91611-60816

91611B0616

main91611-B0616

9672119009

main96721-19009

9672124011

main96721-24011

9672124018

main96721-24018

16 parts on this diagram · 5 diagrams in section
