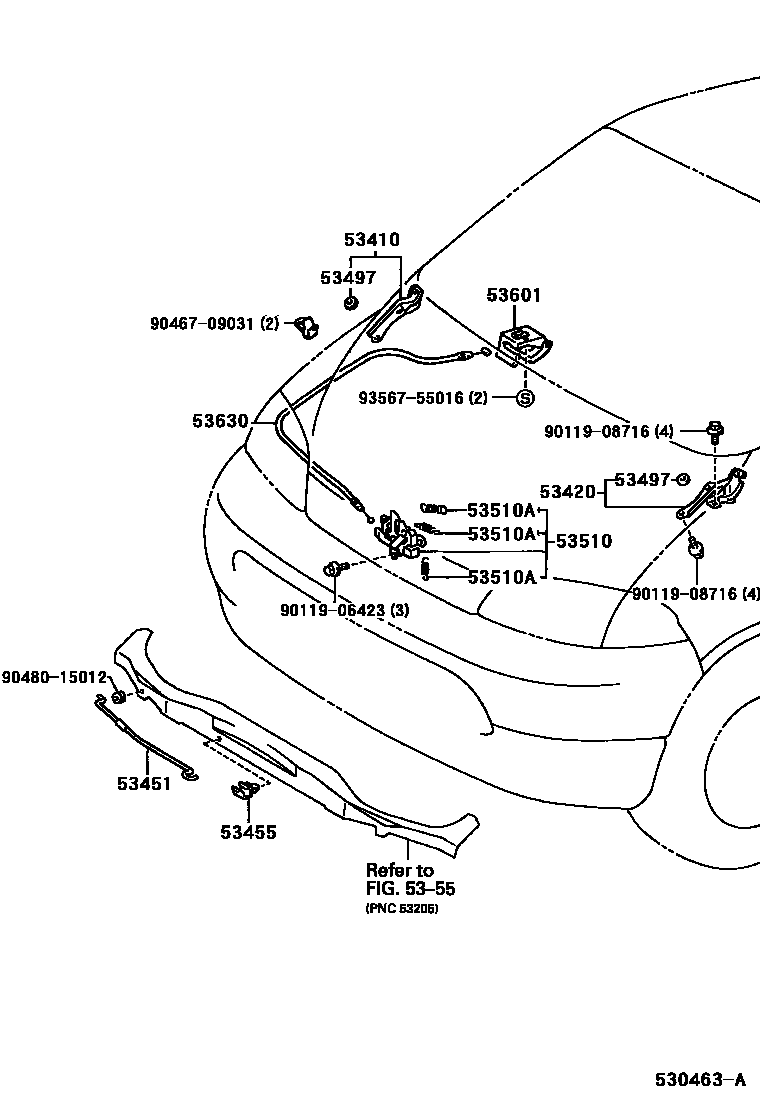

Toyota GRANVIA/GRAND HIACE — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-26010iKCH1#,RCH11,VCH1#199508-199907

sub53410-26030

main53410-26030iKCH1#,VCH1#,2#199907-200501

53420HINGE ASSY, HOOD, LH

main53420-26010iKCH1#,RCH11,VCH1#199508-199907

sub53420-26030

main53420-26030iKCH1#,VCH1#,2#199907-200501

53451ROD, HOOD SUPPORT

main53440-26010iKCH1#,RCH11,VCH1#199508-199907

sub53440-26020

main53451-26040iKCH1#,VCH1#,2#199907-200501

53455CLAMP, HOOD SUPPORT ROD

main53455-14020iKCH1#,RCH11199508-199702

main53455-26010iKCH1#,RCH11,VCH1#199703-199907

53497PAD, HOOD HINGE, NO.1

main53497-12050iKCH1#,RCH11,VCH1#199508-199907

main53497-42010iKCH1#,VCH1#,2#199907-200501

53510LOCK ASSY, HOOD

main53510-26020iKCH1#,RCH11,VCH1#199508-199907

main53510-26040iKCH1#,VCH1#,2#199907-200501

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09051iKCH1#,RCH11,VCH1#199508-200501

main90506-09055iKCH1#,RCH11,VCH1#199508-200501

main90506-18067iKCH1#,RCH11,VCH1#199508-200501

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-10020-C0iRCH11,VCH10..G199508-199907

BLACK,TRIM1#

sub53601-10020

sub53601-20060

main53601-10020-C0iKCH1#,VCH1#..Q199708-199907

BLACK,TRIM4#

sub53601-10020

sub53601-20060

main53601-10020-C0iKCH1#,VCH1#..G199804-199907

sub53601-10020

sub53601-20060

main53601-10020-C0iKCH1#,VCH1#,2#199907-200501

BLACK,TRIM0#

sub53601-10020

sub53601-20060

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-26020iKCH1#,RCH11,VCH1#199508-200108

sub53630-26021

main53630-26021iKCH1#,VCH1#,2#200108-200501

9011906423

main90119-06423

9011908716

main90119-08716

9046709031

main90467-09031

9048015012

main90480-15012

9356755016

main93567-55016

14 parts on this diagram · 2 diagrams in section
