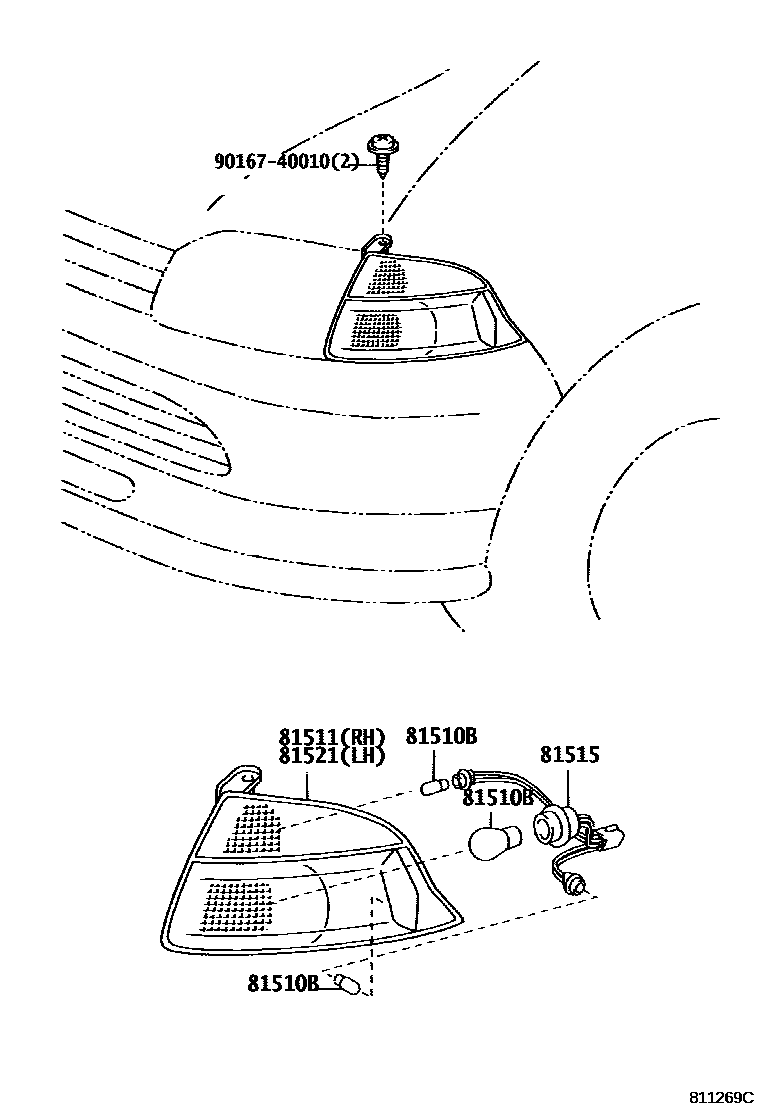

Toyota GRANVIA/GRAND HIACE — FRONT TURN SIGNAL LAMP

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-11210×2i199508-199907

main99132-12050×4i199508-199907

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-26080i199508-199708

main81511-26090i199508-199802

main81511-26091i199802-199907

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-26080×2i199508-199907

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-26080i199508-199708

main81521-26090i199508-199802

main81521-26091i199802-199907

9016740010

main90167-40010

5 parts on this diagram · 1 diagram in section

FRONT TURN SIGNAL LAMP for Toyota GRANVIA/GRAND HIACE

This section contains 5 genuine Toyota parts for the FRONT TURN SIGNAL LAMP system of the Toyota GRANVIA/GRAND HIACE. Key components include: BULB (FOR FRONT TURN SIGNAL LAMP), LENS, FRONT TURN SIGNAL LAMP, RH, WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY, LENS, FRONT TURN SIGNAL LAMP, LH.
