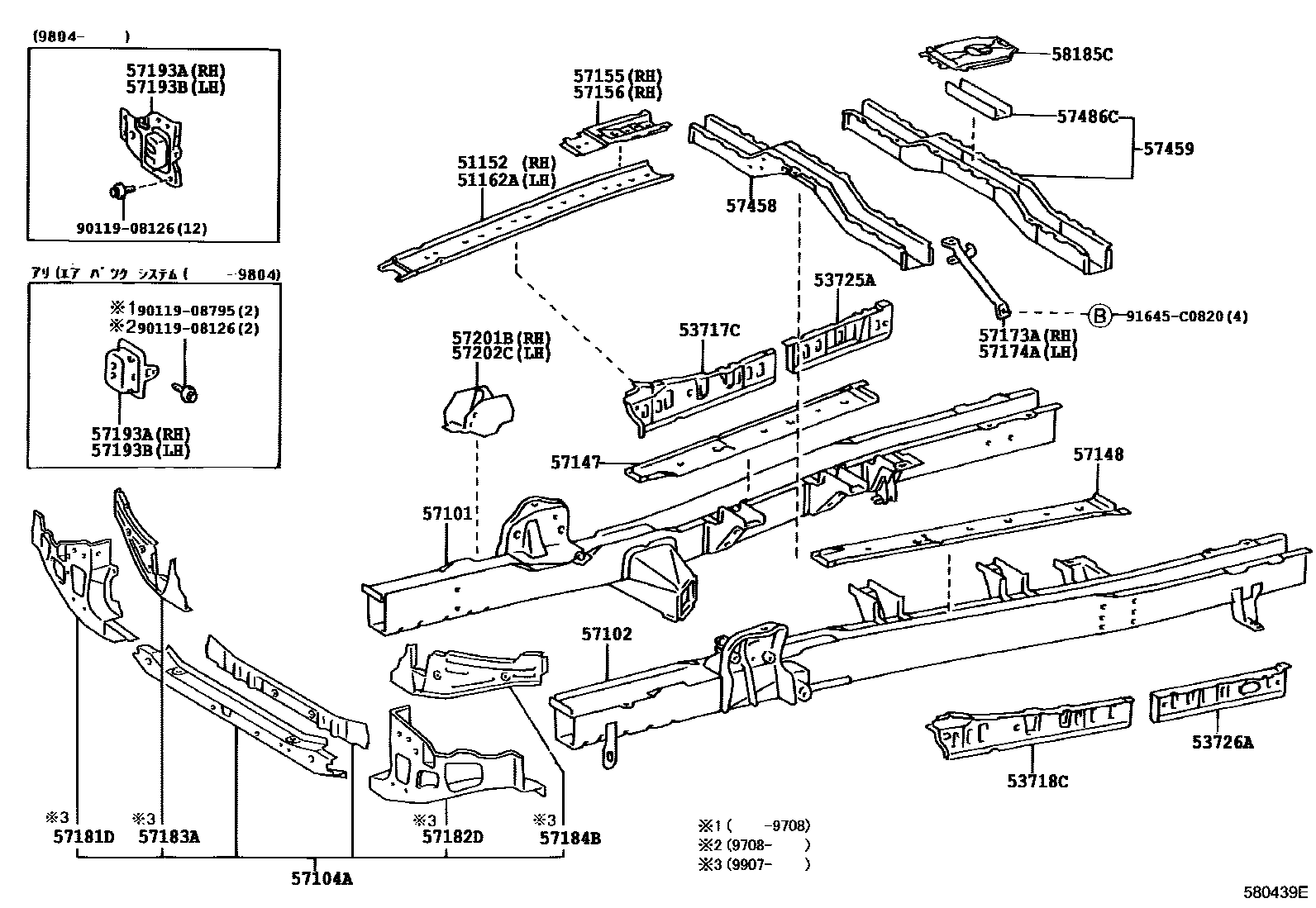

Toyota GRANVIA/GRAND HIACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1 0002 1 0003 1

51152REINFORCEMENT, FRONT FRAME RAIL, NO.4 RH

main51152-26020iKCH1#,RCH11,VCH1#199708-200501

51162AREINFORCEMENT, FRONT FRAME RAIL, NO.4 LH

main51162-26010iKCH1#,RCH11,VCH1#199708-200501

53717CAPRON, FRPNT FENDER, NO.2 RH

main53717-26010iKCH1#,VCH1#,2#199508-200501

53718CAPRON, FRONT FENDER, NO.2 LH

main53718-26010iKCH1#,RCH11,VCH1#199508-200501

53725AAPRON, FRONT FENDER NO.2 SIDE, RH

main53725-26010iKCH1#,VCH1#,2#199508-200501

53726AAPRON, FRONT FENDER NO.2 SIDE, LH

main53726-26010iKCH1#,VCH1#199907-200205

sub53726-26030

main53726-26030iKCH1#,RCH11199508-200501

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-26240iKCH10,12,RCH11199508-199708

sub57101-26230

main57101-26270iKCH16199510-199708

sub57101-26260

main57101-26340iKCH10,VCH10,22199708-200403

main57101-26350iKCH16,VCH16,28199708-200403

main57101-26390iVCH22200403-200501

sub57101-26660

main57101-26400iVCH28200403-200501

main57101-26510iKCH10,VCH10..4D199907-200205

main57101-26520iKCH16,VCH16..4D199907-200205

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-26240iKCH10,12,RCH11199508-199708

sub57102-26230

main57102-26260iKCH16199510-199708

sub57102-26250

main57102-26280iKCH10,RCH11..G199508-199608

main57102-26360iKCH10,RCH11,VCH10199708-200403

main57102-26370iKCH16,VCH16199708-200403

sub57102-26420

main57102-26410iVCH22200403-200501

sub57102-26730

main57102-26420iVCH28200403-200501

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-26090iKCH1#,RCH11,VCH1#199508-199811

main57104-26091iKCH1#,VCH1#199811-200501

57147PLATE, FRONT SIDE MEMBER, REAR RH

main57147-26010iKCH1#,VCH1#,2#199508-200501

57148PLATE, FRONT SIDE MEMBER, REAR LH

main57148-26010iKCH1#,VCH1#,2#199508-200501

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-26030iKCH1#,RCH11,VCH1#199708-200501

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-26010iKCH1#,VCH1#199708-200205

sub57156-26020

main57156-26020iVCH2#200112-200501

57173AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 RH

main57173-26010iKCH1#,RCH11,VCH1#199708-200501

57174AREINFORCEMENT, FRONT CROSSMEMBER, NO.3 LH

main57174-26010iKCH1#,VCH1#,2#199708-200501

57181DEXTENSION, FRONT CROSSMEMBER, FRONT RH

main57181-26011iKCH1#,VCH1#,2#199907-200501

57182DEXTENSION, FRONT CROSSMEMBER, FRONT LH

main57182-26011iKCH1#,VCH1#,2#199907-200501

57183AEXTENSION, FRONT CROSSMEMBER, RR RH

main57183-26010iKCH1#,VCH1#,2#199907-200501

57184BEXTENSION, FRONT CROSSMEMBER, RR LH

main57184-26010iKCH1#,VCH1#,2#199907-200501

57193ABLOCK, FRONT CROSSMEMBER, NO.1

main57029-26010iKCH1#,RCH11,VCH1#199708-199811

sub57029-26011

main57029-26011iKCH1#,VCH1#,2#199811-200501

main57193-26020iKCH10,16,RCH11199508-199708

57193BBLOCK, FRONT CROSSMEMBER, NO.1

main57029-26020iKCH1#,RCH11,VCH1#199708-199811

sub57029-26021

main57029-26021iKCH1#,VCH1#199811-200501

main57193-26030iKCH10,16,RCH11199508-199708

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-26020iKCH16,VCH16,28199604-200501

main57201-26030iKCH16199510-199604

sub57201-26020

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-26010iKCH16,VCH16,28199604-200501

main57202-26010iKCH16..G199512-199604

main57202-26020iKCH16199510-199604

sub57202-26010

57458MEMBER, FRONT FLOOR CROSS, NO.1

main57408-26010iKCH1#,RCH11199508-199607

sub57408-26040

main57408-26020iKCH10,RCH11..G199508-199608

main57408-26040iKCH1#,RCH11,VCH1#199607-200501

57459MEMBER, FRONT FLOOR CROSS, NO.2

main57459-26010iKCH1#,RCH11,VCH1#199508-200501

sub57459-26050

57486CREINFORCEMENT, FRONT FLOOR CROSS, NO.2

main57486-26010iKCH1#,RCH11199508-199708

main57486-26030iKCH1#,VCH1#,2#199708-200501

sub57486-26060

58185CREINFORCEMENT, FLOOR SHIFT

main58185-26010iKCH1#,RCH11199704-200501

9011908126

main90119-08126

9011908795

main90119-08795

91645C0820

main91645-C0820

30 parts on this diagram · 3 diagrams in section
