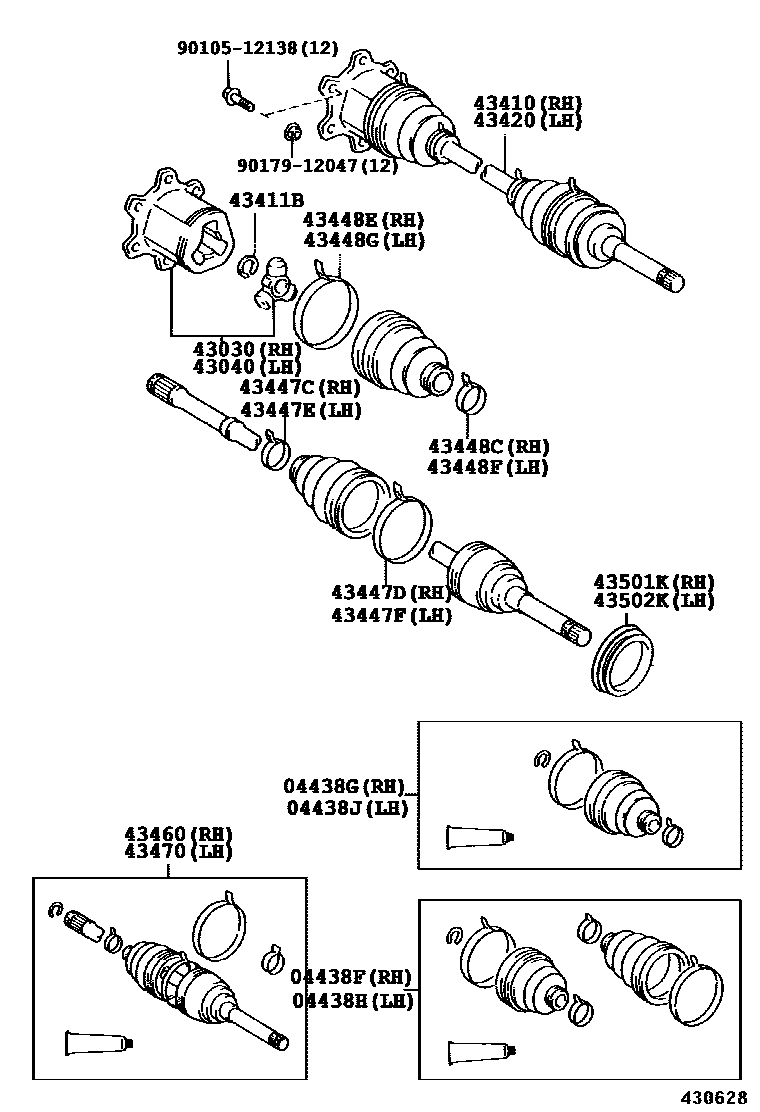

Toyota GRANVIA/GRAND HIACE — FRONT DRIVE SHAFT

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04428-26010iVCH28200401-200501

sub04428-26011

main04438-26020iKCH16199510-199606

sub04438-26021

main04438-26021iKCH16,VCH16,28199606-200401

sub04428-26010

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-25010iVCH28200401-200501

sub04437-25011

main04438-26010iKCH16199510-199606

sub04438-26011

main04438-26011iKCH16,VCH16,28199606-200401

sub04438-25010

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-26010iVCH28200401-200501

sub04428-26011

main04438-26020iKCH16199510-199606

sub04438-26021

main04438-26021iKCH16,VCH16199606-200401

sub04428-26010

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-25010iVCH28200401-200501

sub04437-25011

main04438-26010iKCH16199510-199606

sub04438-26011

main04438-26011iKCH16,VCH16,28199606-200401

sub04438-25010

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-26010iKCH16,VCH16,28199510-200501

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43403-26010iKCH16,VCH16199510-200501

43410SHAFT ASSY, FRONT DRIVE, RH

main43430-26030iKCH16199510-199606

sub43430-26031

main43430-26031iKCH16,VCH16199606-200107

sub43430-26032

sub90316-60004

main43430-26032iKCH16,VCH16,28200107-200501

sub43430-26033

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-29028iKCH16,VCH16199510-200501

43420SHAFT ASSY, FRONT DRIVE, LH

main43430-26030iKCH16199510-199606

sub43430-26031

main43430-26031iKCH16,VCH16199606-200107

sub43430-26032

sub90316-60004

main43430-26032iKCH16,VCH16,28200107-200501

sub43430-26033

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01221iKCH16,VCH16199510-200501

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main90949-01135iKCH16,VCH16199510-200501

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main90949-01221iKCH16,VCH16199510-200501

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main90949-01135iKCH16,VCH16199510-200501

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01221iKCH16,VCH16199510-200501

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01222iKCH16,VCH16199510-200501

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main90949-01221iKCH16,VCH16199510-200501

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main90949-01222iKCH16,VCH16199510-200501

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-29285iKCH16,VCH16199510-200107

sub43460-29455

sub90316-60004

main43460-29455iKCH16,VCH16,28200107-200401

sub43460-29595

main43460-29595iVCH28200401-200501

sub43460-29596

43470SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH

main43460-29285iKCH16,VCH16199510-200107

sub43460-29455

sub90316-60004

main43460-29455iKCH16,VCH16,28200107-200401

sub43460-29595

main43460-29595iVCH28200401-200501

sub43460-29596

43501KSEAL, DUST (FOR FRONT AXLE HUB RH)

main90304-76002iKCH16,VCH16199510-200107

sub90304-76005

sub90316-60004

main90304-76005iKCH16,VCH16,28200107-200501

43502KSEAL, DUST (FOR FRONT AXLE HUB LH)

main90304-76002iKCH16,VCH16199510-200107

sub90304-76005

sub90316-60004

main90304-76005iKCH16,VCH16,28200107-200501

9010512138

main90105-12138

9017912047

main90179-12047

23 parts on this diagram · 1 diagram in section
