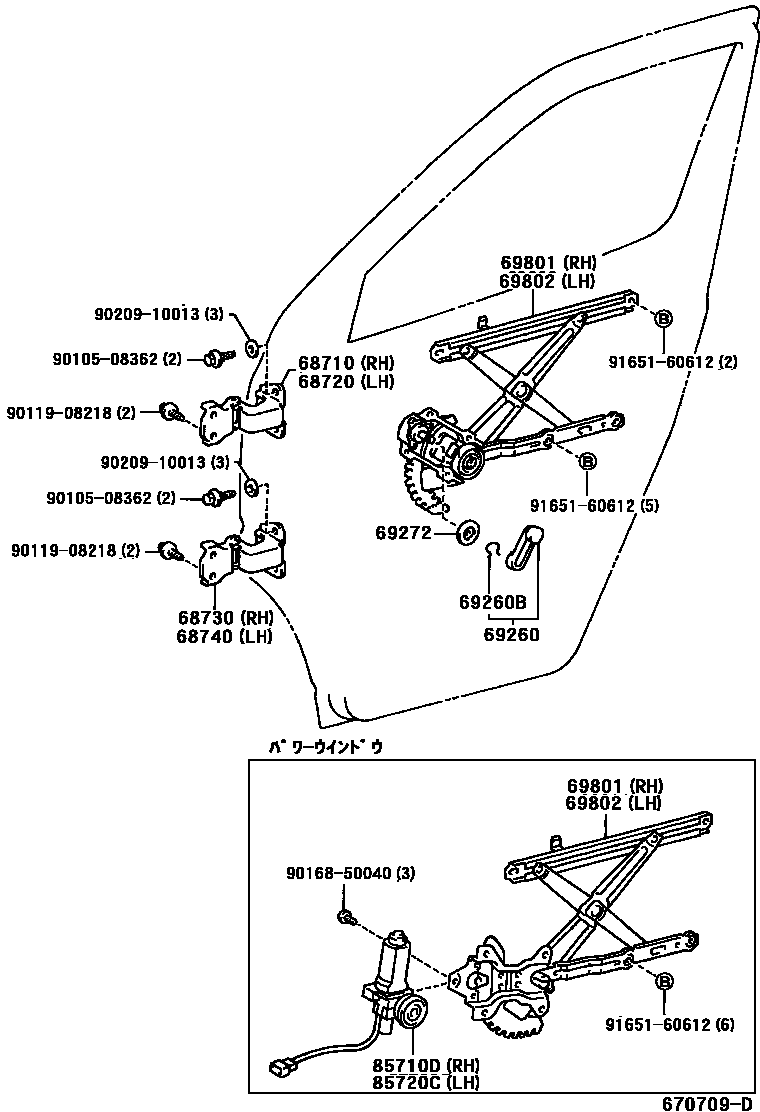

Toyota GRANVIA/GRAND HIACE — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68720-26010iKCH1#,RCH11,VCH1#199705-200501

main68720-28010iKCH1#,RCH11199508-199705

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-26010iKCH1#,RCH11,VCH1#199705-200501

main68710-28010iKCH1#,RCH11199508-199705

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-26010iKCH1#,RCH11,VCH1#199705-200501

main68720-28010iKCH1#,RCH11199508-199705

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-26010iKCH1#,RCH11,VCH1#199705-200501

main68710-28010iKCH1#,RCH11199508-199705

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-95J00-B1iKCH12199508-199708

SHADOW GRAY,TRIM1#

sub69260-95J00

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iKCH12199508-199708

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iKCH12199508-199708

NATURAL WHITE,TRIM1#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-26010iKCH10,16,RCH11199508-199708

main69801-26020iKCH1#,RCH11,VCH1#199708-200501

main69810-26010iKCH12199508-199703

main69810-26040iKCH12199703-199708

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-26010iKCH10,16,RCH11199508-199708

main69802-26020iKCH1#,VCH1#,2#199708-200501

main69820-26010iKCH12199508-199703

main69820-26040iKCH12199703-199708

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-20080iKCH10,16,RCH11199508-199708

sub85710-28030

main85710-26030iKCH1#,VCH1#,2#199708-200501

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-20080iKCH10,16,RCH11199508-199708

sub85720-28030

main85720-28030iKCH1#,RCH11,VCH1#199708-199710

sub85720-28080

main85720-28080iKCH1#,RCH11,VCH1#199710-200501

9010508362

main90105-08362

9011908218

main90119-08218

9016850040

main90168-50040

9020910013

main90209-10013

9165160612

main91651-60612

16 parts on this diagram · 1 diagram in section
