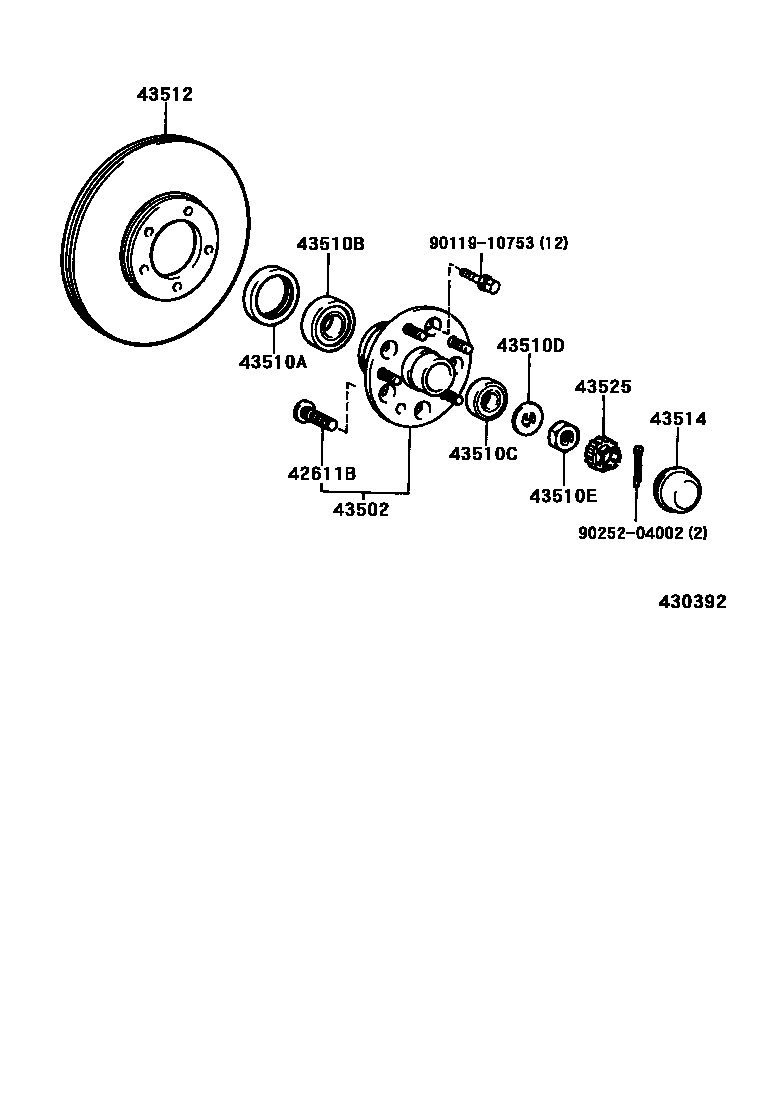

Toyota GRANVIA/GRAND HIACE — FRONT AXLE HUB

0001 1��(ABS) 0002 1��(ABS) 0003 1��(ABS) 0004 1��(ABS)

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iKCH10,12,RCH11,VCH10199508-200501

main90942-02049iKCH16,VCH16199510-200501

43502HUB SUB-ASSY, FRONT AXLE

main43502-26070iKCH12199508-199708

main43503-26040iKCH10,RCH11,VCH10199508-200501

main43503-26040iKCH12199508-199708

main43503-29015iKCH16199510-199612

sub43503-29085

main43503-29025iKCH16,VCH16199612-200501

sub43503-29026

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50005iKCH10,VCH10,22199508-200501

main90311-66003iKCH16,VCH16,28199510-200501

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90080-36064iKCH16,VCH16,28199907-200501

main90368-34001iKCH10,VCH10,22199508-200501

main90368-49084iKCH16,VCH16199510-199907

main90368-49084iKCH16,VCH16,28199907-200501

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90080-36067iKCH16,VCH16,28199907-200501

main90368-21001iKCH10,12,RCH11,VCH10199508-200501

main90368-45087iKCH16,VCH16199510-199907

main90368-45087iKCH16,VCH16,28199907-200501

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20007iKCH10,12,RCH11,VCH10199508-200501

main90214-42030iKCH16,VCH16199510-200501

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iKCH10,12,RCH11,VCH10199508-200501

43512DISC, FRONT

main43512-26130iKCH16,VCH16199510-200501

main43512-26140iKCH10,12,RCH11,VCH10199508-200501

main43512-26160iKCH10,12,RCH11,VCH10199704-200501

sub43512-26140

43514CAP, FRONT HUB GREASE

main43514-35010iKCH10,VCH10,22199508-200501

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iKCH10,12,RCH11,VCH10199508-200501

9011910753

main90119-10753

9025204002

main90252-04002

12 parts on this diagram · 4 diagrams in section
