Toyota GRANVIA/GRAND HIACE — ENGINE OVERHAUL GASKET KIT

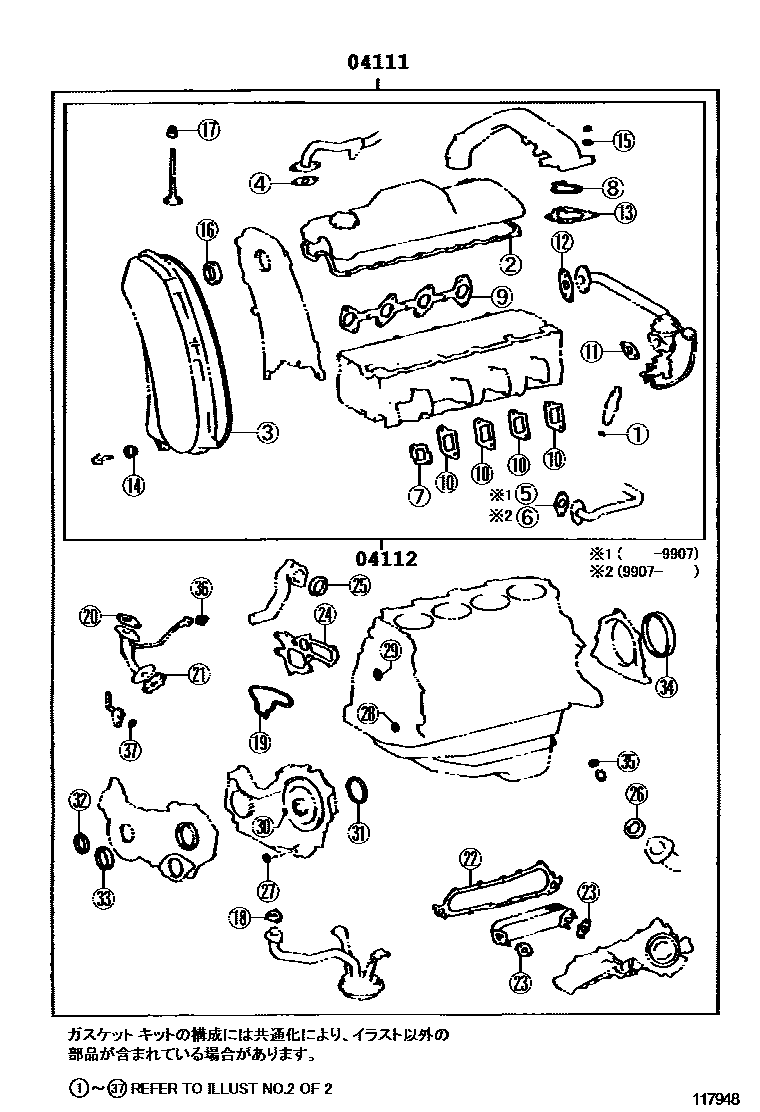

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-62081i199708-199901
main04111-62130i199901-200401
main04111-62210i200401-200501
main04111-67020i199508-199607
sub04111-67021
main04111-67022i199607-199805
sub04111-67024
main04111-67024i199805-200002
sub04111-67025
main04111-67025i200002-200205
main04111-75110i199508-199804
sub04111-75111
04112GASKET KIT, ENGINE VALVE GRIND
main04112-62071i199708-199901
main04112-62110i199901-200401
main04112-62180i200401-200501
main04112-67020i199508-199607
main04112-67021i199907-200002
sub04112-67022
main04112-67021i199607-199907
sub04112-67022
main04112-67022i200002-200205
main04112-75110i199508-199804
sub04112-75111

2 parts on this diagram · 6 diagrams in section
