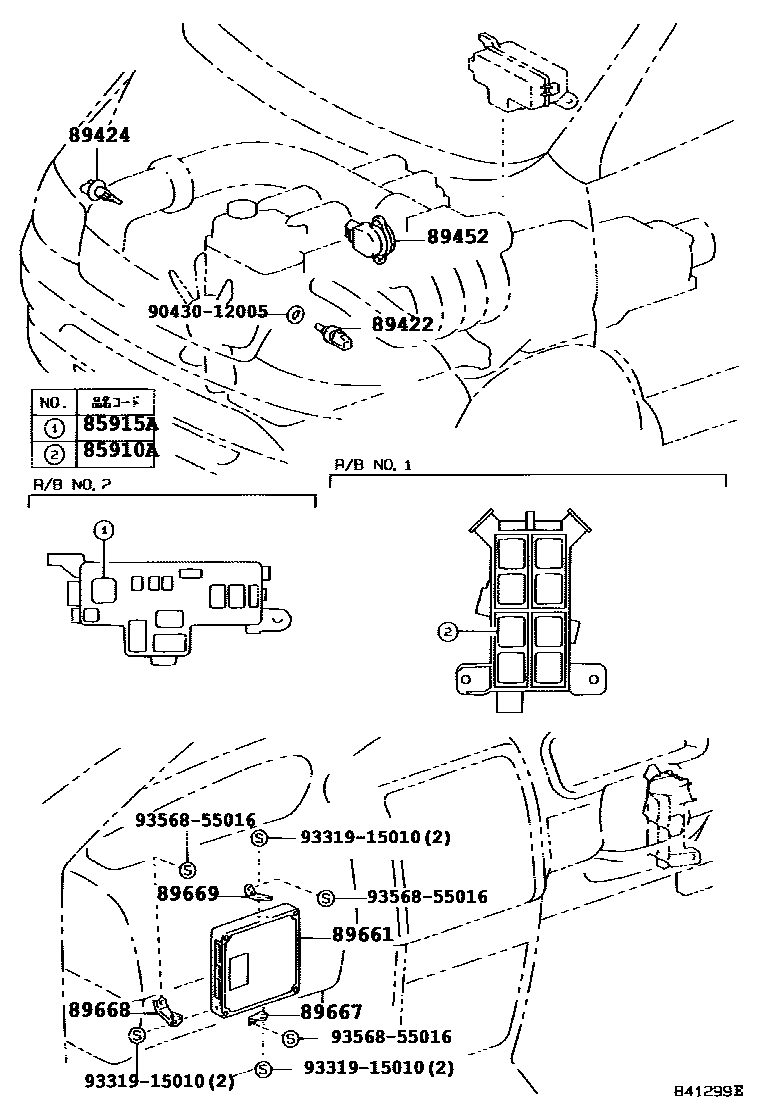

Toyota GRANVIA/GRAND HIACE — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02009iRCH11,VCH1#199508-199804

main90987-02012iVCH1#199804-200501

85915ARELAY, MAIN

main90987-02009iRCH11,VCH1#199508-199907

main90987-02012iVCH1#,2#199907-200501

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iRCH11,VCH1#199508-200501

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iRCH11199508-199804

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22080iRCH11199508-199804

main89452-35020iVCH1#199708-200501

89661COMPUTER, ENGINE CONTROL

main89661-26250iRCH11199508-199708

main89661-26460iRCH11199708-199804

main89661-26480iVCH1#199708-199907

main89661-26700iVCH1#199907-200205

main89661-26710iVCH2#199907-200205

main89661-26840iVCH2#200205-200501

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-26040iRCH11,VCH1#199508-199907

main89667-26041iVCH1#,2#199907-200501

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-26040iRCH11199508-199708

main89668-26060iRCH11,VCH1#199708-199907

main89668-26061iVCH1#,2#199907-200501

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-26030iRCH11,VCH1#199508-199907

main89669-26031iVCH1#,2#199907-200501

9043012005

main90430-12005

9331915010

main93319-15010

9356855016

main93568-55016

12 parts on this diagram · 2 diagrams in section
