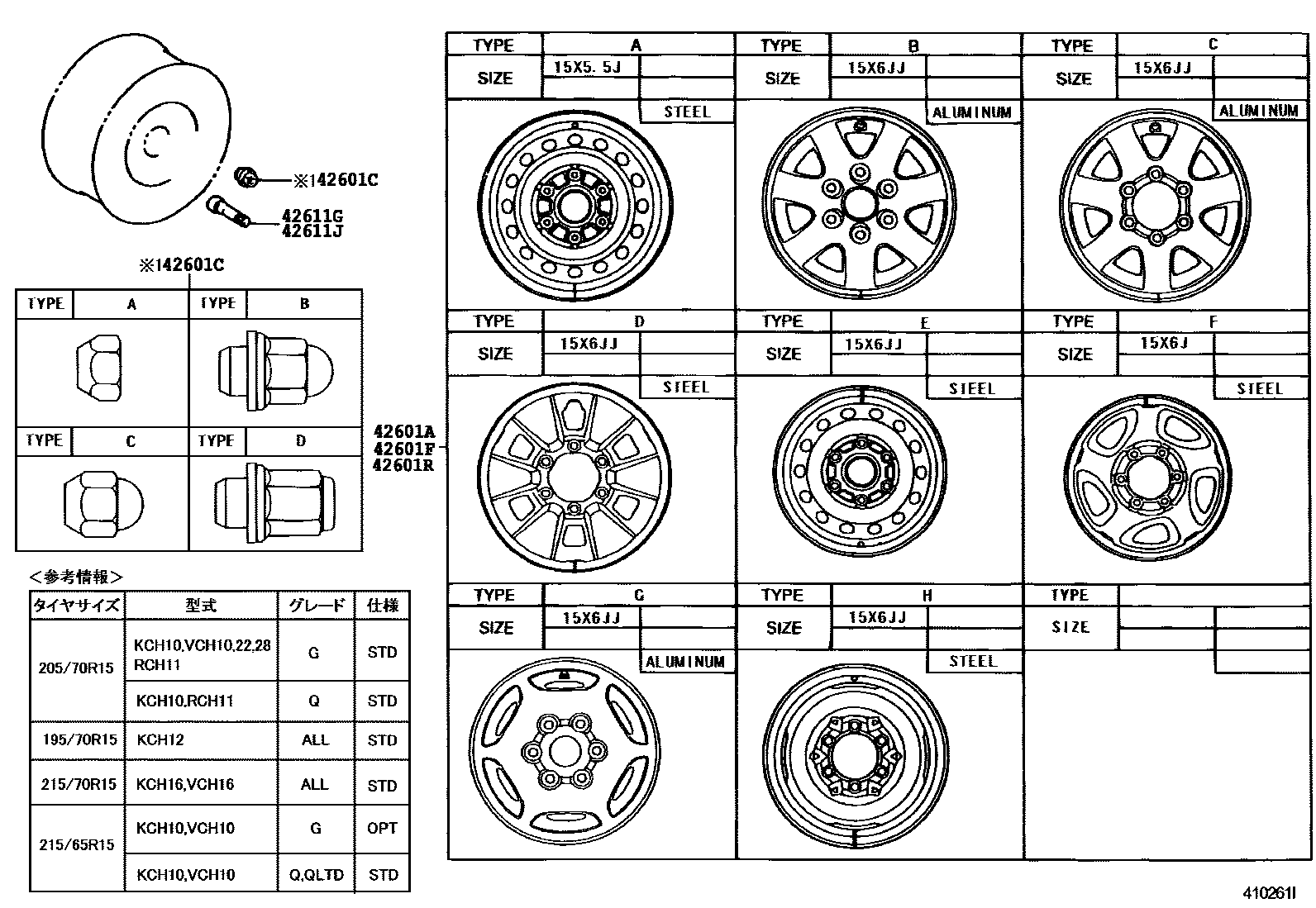

Toyota GRANVIA/GRAND HIACE — DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601AWHEEL, DISC (FOR SPARE)

main42601-26281-03iVCH28199907-200501

sub42601-26281

main42601-26400iKCH12199508-199708

main42601-26400iVCH22199907-200501

main42601-26410iVCH22199907-200501

main42601-26410iKCH10,12,RCH11199508-199708

main42601-26470iKCH10,VCH10199907-200205

main42601-26470iKCH10,RCH11,VCH10199708-199907

main42601-26480iKCH16,VCH16199708-199907

main42601-26480iKCH16,VCH16199907-200205

main42601-35510-03iKCH16199510-199708

sub42601-35510

main42601-35510-03iVCH28199907-200107

sub42601-35510

42601CNUT, HUB (FOR AXLE)

main90942-01007iKCH12199508-199708

main90942-01007iKCH10,RCH11,VCH10..G199508-199907

main90942-01007iKCH10,VCH10,22..DX,G199907-200501

main90942-01026iKCH10,16,RCH11,VCH10..G199508-199907

main90942-01026iVCH16;KCH10,16,RCH11,VCH10..Q199508-199907

main90942-01047iKCH12,16,VCH16..DX,G199508-200501

main90942-01095iKCH1#,VCH1#199907-200205

42601FWHEEL, DISC (FOR FRONT)

main42601-26400iVCH22199907-200501

main42601-26400iKCH12199508-199708

main42601-26410iVCH22199907-200501

main42601-26410iKCH10,12,RCH11..DX,G199508-199708

main42601-26420iKCH10,RCH11,VCH10199508-199907

main42601-26430iKCH16,VCH16199510-199907

main42601-26470iKCH10,RCH11,VCH10..G199708-199907

main42601-26470iKCH10,VCH10..G199907-200205

main42601-26480iKCH16,VCH16..G199708-199907

main42601-26480iKCH16,VCH16..G199907-200205

main42601-35510-03iVCH28199907-200501

sub42601-35510

main42601-35510-03iKCH16..G199510-199708

sub42601-35510

main42611-26090iKCH10,VCH10199907-200205

main42611-26100iKCH16,VCH16199907-200205

main42611-26130iVCH10..G;KCH10..G..5D200108-200204

main42611-26140iVCH16..G;KCH16..G..5D200108-200204

42601RWHEEL, DISC (FOR REAR)

main42601-26400iVCH22199907-200501

main42601-26400iKCH12199508-199708

main42601-26410iKCH10,12,RCH11..DX,G199508-199708

main42601-26410iVCH22199907-200501

main42601-26420iKCH10,RCH11,VCH10199508-199907

main42601-26430iKCH16,VCH16199510-199907

main42601-26470iKCH10,VCH10..G199907-200205

main42601-26470iKCH10,RCH11,VCH10..G199708-199907

main42601-26480iKCH16,VCH16..G199708-199907

main42601-26480iKCH16,VCH16..G199907-200205

main42601-35510-03iVCH28199907-200501

sub42601-35510

main42601-35510-03iKCH16..G199510-199708

sub42601-35510

main42611-26090iKCH10,VCH10199907-200205

main42611-26100iKCH16,VCH16199907-200205

main42611-26130iVCH10..G;KCH10..G..5D200108-200204

main42611-26140iVCH16..G;KCH16..G..5D200108-200204

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iKCH1#,VCH1#199508-200501

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iKCH1#,RCH11,VCH1#199508-200501

6 parts on this diagram · 3 diagrams in section
