Toyota GRANVIA/GRAND HIACE — CRANKSHAFT & PISTON

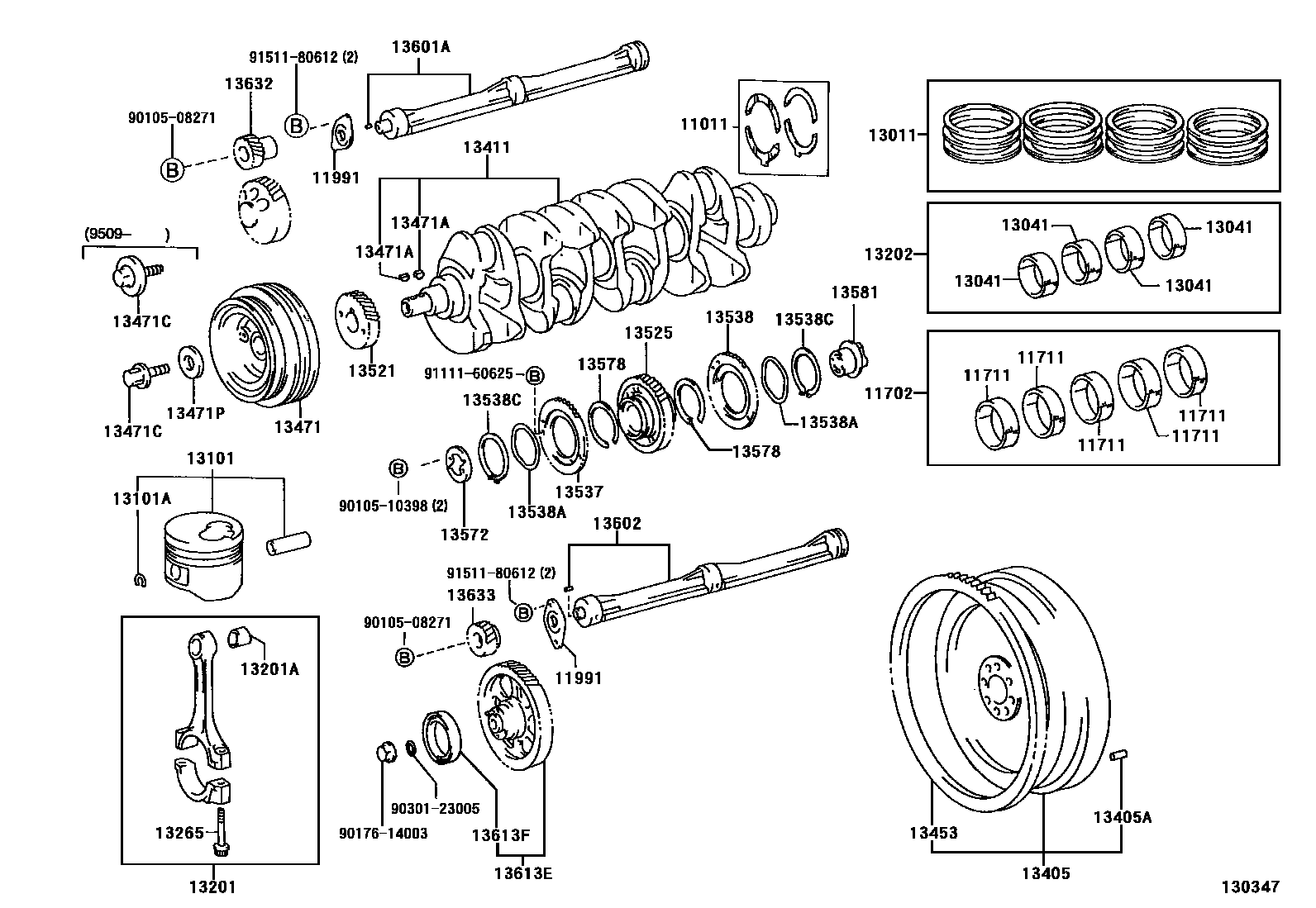

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-62010i199708-200501
main11011-67020i199508-200205
main11011-75010i199508-199804
main11012-67020i199508-200205
sub11012-30010
main11013-67020i199508-200205
sub11013-30010
11702BEARING SET, CRANKSHAFT
main11704-65013i199708-200501
main11704-67020i199508-200008
sub11704-67021
main11704-67021i200008-200205
sub11704-30020
main11704-75020i199508-199804
sub11704-75021
main11705-67020i199508-200008
sub11705-67021
main11705-67021i200008-200205
sub11705-30020
11711BEARING, CRANKSHAFT
main11071-65011-01i199708-200501
main11071-65011-02i199708-200501
main11071-65011-03i199708-200501
main11071-65011-04i199708-200501
main11071-65011-05i199708-200501
main11071-75020-01i199508-199804
sub11071-75021
main11071-75020-02i199508-199804
sub11071-75021
main11071-75020-03i199508-199804
sub11071-75021
main11701-62022-01i199708-200501
main11701-62022-02i199708-200501
main11701-62022-03i199708-200501
main11701-62022-04i199708-200501
main11701-62022-05i199708-200501
main11701-62022-06i199708-200501
main11701-67020-02i199508-200008
sub11701-67021
main11701-67020-03i199508-200008
sub11701-67021
main11701-67020-04i199508-200008
sub11701-67021
main11701-67020-05i199508-200008
sub11701-67021
main11701-67020-06i199508-200008
sub11701-67021
main11701-67021-02i200008-200205
sub11701-30020
main11701-67021-03i200008-200205
sub11701-30020
main11701-67021-04i200008-200205
sub11701-30020
main11701-67021-05i200008-200205
sub11701-30020
main11701-67021-06i200008-200205
sub11701-30020
main11701-75020-01i199508-199804
sub11701-75021
main11701-75020-02i199508-199804
sub11701-75021
main11701-75020-03i199508-199804
sub11701-75021
11991WASHER, BALANCESHAFT THRUST
main11991-67010i199508-200205
main11991-75010i199508-199804
13011RING SET, PISTON
main13011-62110i199708-199907
sub13011-62100
main13011-62130i199907-200501
main13011-67020i199508-199604
sub13011-67030
main13011-67030i199604-200205
main13011-75040i199508-199804
main13013-62110i199708-199907
sub13013-62100
main13013-62130i199907-200501
main13013-67020i199508-199604
sub13013-67030
main13013-67030i199604-200205
main13013-75040i199508-199804
main13014-67020i199508-199604
sub13014-67030
main13014-67030i199604-200205
main13015-67020i199508-199604
sub13015-67030
main13015-67030i199604-200205
13041BEARING, CONNECTING ROD
main13041-62030-01i199708-200501
main13041-62030-02i199708-200501
main13041-62030-03i199708-200501
main13041-67030i200007-200008
sub13041-67031
main13041-67030-02i199508-200007
sub13041-67031
main13041-67030-03i199508-200007
sub13041-67031
main13041-67030-04i199508-200007
sub13041-67031
main13041-67030-05i199508-200007
sub13041-67031
main13041-67030-06i199508-200007
sub13041-67031
main13041-67031-02i200008-200205
sub13041-30020
main13041-67031-03i200008-200205
sub13041-30020
main13041-67031-04i200008-200205
sub13041-30020
main13041-67031-05i200008-200205
sub13041-30020
main13041-67031-06i200008-200205
sub13041-30020
main13041-75020-04i199508-199701
MARK 4
sub13041-75021
main13041-75020-05i199508-199701
MARK 5
sub13041-75021
main13041-75020-06i199508-199701
MARK 6
sub13041-75021
main13041-75021-04i199701-199804
MARK 4
sub13041-75022
main13041-75021-05i199701-199804
MARK 5
sub13041-75022
main13041-75021-06i199701-199804
MARK 6
sub13041-75022
13101PISTON SUB-ASSY, W/PIN
main13101-62060-01i199708-199907
main13101-62060-02i199708-199907
main13101-62060-03i199708-199907
main13101-62070-01i199907-200501
main13101-62070-02i199907-200501
main13101-62070-03i199907-200501
main13101-67020-01i199508-199604
sub13101-67030
main13101-67020-02i199508-199604
sub13101-67030
main13101-67020-03i199508-199604
sub13101-67030
main13101-67030-01i199604-199907
main13101-67030-02i199604-199907
main13101-67030-03i199604-199907
main13101-67050-01i199907-200205
main13101-67050-02i199907-200205
main13101-67050-03i199907-200205
main13101-75040i199508-199804
main13103-62060i199708-199907
main13103-62070i199907-200501
main13103-67020i199508-199604
sub13103-67030
main13103-67030i199604-199907
main13103-67050i199907-200205
main13103-75040i199508-199804
main13104-67020i199508-199604
sub13104-67030
main13104-67030i199604-199907
main13104-67050i199907-200205
main13105-67020i199508-199604
sub13105-67030
main13105-67030i199604-199907
main13105-67050i199907-200205
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-37014i199508-200205
main90521-25004i199708-200501
sub90520-22025
main90521-28003i199508-199804
13201ROD SUB-ASSY, CONNECTING
main13201-67020i199508-200007
sub13201-67021
main13201-67021i200007-200205
main13201-69145i199708-200501
main13201-79205i199508-199804
sub13201-79466
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73129i199508-199804
main90999-73130i199708-200501
main90999-73136i199508-200205
13202BEARING SET, CONNECTING ROD
main13204-62030i199708-200501
main13204-67030i199508-200008
sub13204-67031
main13204-67031i200008-200205
sub13204-30020
main13204-75020i199508-199701
sub13204-75021
main13204-75021i199701-199804
sub13204-75022
main13205-67030i199508-200008
sub13205-67031
main13205-67031i200008-200205
sub13205-30020
13265BOLT, CONNECTING ROD
main13265-62030i199708-200501
sub13265-74030
main13265-67020i199508-200007
sub13265-67021
main13265-67021i200007-200205
main13265-75030i199508-199804
13405FLYWHEEL SUB-ASSY
main13405-67030i199508-200205
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-05121i199508-200205
13411CRANKSHAFT
main13401-30010i200005-200205
main13401-62040i199708-200501
main13401-67010i199508-200005
sub13401-30010
main13411-75020i199508-199804
sub13411-75901
13453GEAR, FLYWHEEL RING
main13453-67020i199508-199701
main13453-67030i199701-200205
13471PULLEY, CRANKSHAFT
main13408-62050i199708-200501
main13408-67020i199508-200205
main13408-75030i199508-199804
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005i199508-200501
main95161-30516i199508-200205
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16031i199708-199809
main90105-16041i199508-199804
main90105-18010i199508-199509
sub90119-18003
main90119-16006i199809-200501
main90119-18003i199509-200205
13471PSPACER(FOR CRANKSHAFT PULLEY)
main90560-19006i199508-199509
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-67020i199508-200205
main13521-75010i199508-199804
13525GEAR, IDLE, NO.1
main13508-67900i199508-200205
sub13508-67011
13537GEAR, IDLE SUB, NO.1
main13537-67900i199508-200205
13538GEAR, IDLE SUB, NO.2
main13538-67900i199508-200205
13538AWASHER, WAVE
main90206-69001i199508-200205
13538CRING, SHAFT SNAP
main90520-58002i199508-200205
13572PLATE, IDLE GEAR THRUST
main13572-67041i199508-200205
13578SPRING, IDLE GEAR
main13578-67010i199508-200205
13581SHAFT, IDLE GEAR, NO.1
main13581-67041i199508-200205
13601ABALANCESHAFT SUB-ASSY, NO.1
main13601-67010i199508-199903
sub13601-67020
main13601-67020i199903-200205
sub13601-0L020
13602BALANCESHAFT SUB-ASSY, NO.2
main13602-67010i199508-199903
sub13602-67020
main13602-67020i199903-200205
sub13602-0L020
13613EGEAR, INJECTION
main13613-67900i199508-199907
sub13613-67902
main13613-67902i199907-200205
13613FBEARING, RADIAL BALL
main90363-60004i199508-200205
13632GEAR, BALANCESHAFT DRIVEN, NO.1
main13632-67010i199508-200205
main13632-75010i199508-199804
13633GEAR, BALANCESHAFT DRIVEN, NO.2
main13633-67010i199508-200205
9010508271
main90105-08271
9010510398
main90105-10398
9017614003
main90176-14003
9030123005
main90301-23005
9111160625
main91111-60625
9151180612
main91511-80612

41 parts on this diagram · 3 diagrams in section
