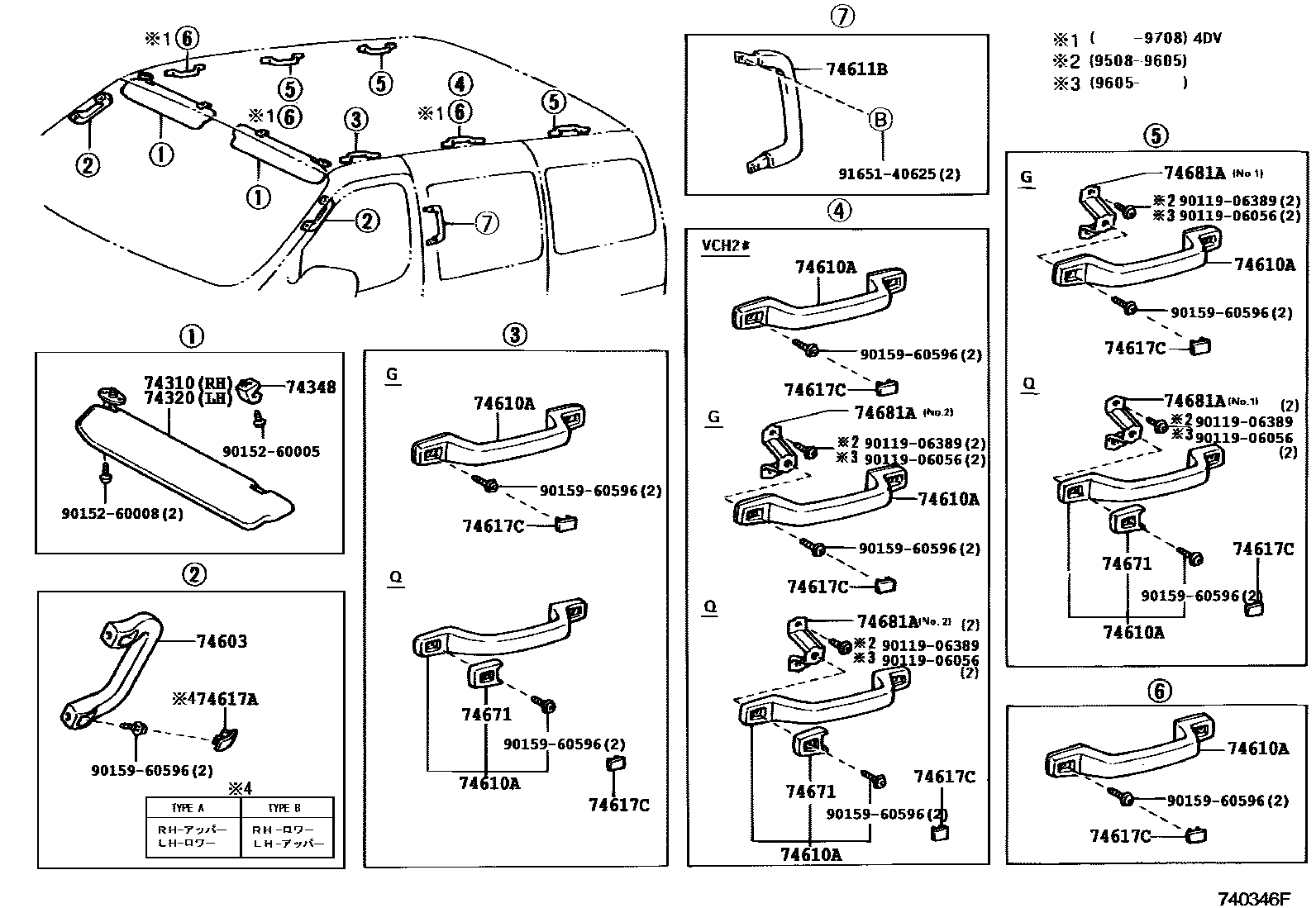

Toyota GRANVIA/GRAND HIACE — ARMREST & VISOR

0001 1����� 0002 1�-����

74310VISOR ASSY, RH

main74310-26150-B0iKCH12199508-199608

LT. BLUISH GRAY

main74310-26310-B0iKCH10,RCH11199508-199608

LT. BL. GRAY,TRIM1#

main74310-26320-B0iKCH16199510-199608

LT. BL. GRAY,TRIM1#

main74310-26500-B0iKCH10,RCH11199608-199708

LT. BL. GRAY,TRIM1#

main74310-26501-A1iKCH10,VCH10..Q199708-199907

sub74310-26502

main74310-26501-B1iKCH10,RCH11,VCH10..G199708-199907

sub74310-26502

main74310-26502-A1iKCH10,VCH10,22199907-200501

IVORY,TRIM0#

main74310-26510-B0iKCH16199608-199708

LT. BL. GRAY,TRIM1#

main74310-26511-A1iKCH16,VCH16..Q199708-199907

sub74310-26512

main74310-26511-B1iKCH16,VCH16..G199708-199907

sub74310-26512

main74310-26512-A1iKCH16,VCH16,28199907-200501

IVORY,TRIM0#

main74310-26520-B0iKCH12199608-199708

LT. BL. GRAY,TRIM1#

main74310-26660-A1iKCH10,VCH10..Q199708-199907

sub74310-26661

main74310-26660-A1iKCH10,VCH10..G199804-199907

sub74310-26661

main74310-26660-B0iKCH10,RCH11,VCH10..G199708-199907

sub74310-26661

main74310-26661-A1iKCH10,VCH10199907-200205

main74310-26670-A1iKCH16,VCH16..G199804-199907

sub74310-26671

main74310-26670-A1iKCH16,VCH16..Q199708-199907

sub74310-26671

main74310-26670-B0iKCH16,VCH16..G199708-199907

sub74310-26671

main74310-26671-A1iKCH16,VCH16199907-200205

74320VISOR ASSY, LH

main74320-26010-B0iKCH12199508-199708

LT. BLUISH GRAY,TRIM1#

main74320-26200-B0iKCH10,16,RCH11199508-199608

LT. BL. GRAY,TRIM1#

main74320-26260-B0iKCH10,16,RCH11199608-199708

LT. BL. GRAY,TRIM1#

main74320-26261-A1iKCH1#,VCH1#..Q199708-199907

sub74320-26262

main74320-26261-A1iKCH1#,VCH1#..G199804-199907

sub74320-26262

main74320-26261-B1iKCH1#,RCH11,VCH1#..G199708-199907

sub74320-26262

main74320-26262-A1iKCH1#,VCH1#,2#199907-200501

IVORY,TRIM0#

74348HOLDER, VISOR

main74348-26020-A0iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

sub74348-26020

main74348-26020-A0iKCH1#,VCH1#..G199804-199907

sub74348-26020

main74348-26020-A0iKCH1#,VCH1#,2#199907-200501

IVORY,TRIM0#

sub74348-26020

main74348-26020-B0iKCH1#,RCH11199508-199708

LT.BLUISH GRAY,TRIM1#

sub74348-26020

main74348-26020-B4iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

sub74348-26020

74603GRIP SUB-ASSY, ASSIST, FRONT

main74610-26010-A0iKCH1#,VCH1#..G199804-199907

sub74610-26010

main74610-26010-A0iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

sub74610-26010

main74610-26010-A0iKCH1#,VCH1#,2#199907-200501

IVORY,TRIM0#

sub74610-26010

main74610-26010-B2iKCH10,16,RCH11199508-199708

LT.BLUISH GRAY,TRIM1#

sub74610-26010

main74610-26010-B4iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

sub74610-26010

74610AGRIP SUB-ASSY, ASSIST

main74610-20040-B1iKCH12199508-199708

LT.BLUISH GRAY,TRIM1#

sub74610-20040

main74610-26020-A0iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

sub74610-26020

main74610-26020-A0iKCH1#,VCH1#..QLTD199907-200205

IVORY,TRIM0#

sub74610-26020

main74610-26020-B0iKCH10,16,RCH11..Q199508-199708

LT.BLUISH GRAY,TRIM1#

sub74610-26020

main74610-32010-A0iVCH2#199907-200501

IVORY,TRIM0#

sub74610-32010

sub74610-20040

main74610-32010-A0iKCH1#,VCH1#..G199804-199907

sub74610-32010

sub74610-20040

main74610-32010-B1iKCH10,16,RCH11..G199508-199708

LT.BLUISH GRAY,TRIM1#

sub74610-32010

sub74610-20040

main74610-32010-B2iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

sub74610-32010

sub74610-20040

74611BGRIP, ASSIST

main74610-26050-A0iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

sub74610-26050

main74610-26050-A0iKCH1#,VCH1#..Q199708-199907

sub74610-26050

main74610-26050-A0iKCH1#,VCH1#..4D199907-200205

IVORY,TRIM0#

sub74610-26050

main74610-26050-A0iKCH1#,VCH1#..G199804-199907

sub74610-26050

main74610-26050-A0iKCH1#,VCH1#..4D199907-200205

sub74610-26050

main74610-26050-B2iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

sub74610-26050

main74610-26060-A0iVCH1#..5D199708-199907

sub74610-26060

main74610-26060-A0iKCH1#,VCH1#..5D199907-200205

sub74610-26060

74617APLUG, ASSIST GRIP

main74617-26010-A0iVCH2#199907-200501

sub74617-26010

main74617-26010-A0iKCH1#,VCH1#..Q199708-199907

sub74617-26010

main74617-26010-A0iKCH1#,VCH1#..G199804-199907

sub74617-26010

main74617-26010-A0iKCH1#,VCH1#199907-200205

sub74617-26010

main74617-26010-B2iKCH10,16,RCH11199508-199708

sub74617-26010

main74617-26010-B4iKCH1#,RCH11,VCH1#..G199708-199907

sub74617-26010

main74617-26020-A0iVCH2#199907-200501

sub74617-26020

main74617-26020-A0iKCH1#,VCH1#..G199804-199907

sub74617-26020

main74617-26020-A0iKCH1#,VCH1#199907-200205

sub74617-26020

main74617-26020-A0iKCH1#,VCH1#..Q199708-199907

sub74617-26020

main74617-26020-B2iKCH10,16,RCH11199508-199708

sub74617-26020

main74617-26020-B4iKCH1#,RCH11,VCH1#..G199708-199907

sub74617-26020

74617CPLUG, ASSIST GRIP

main74617-16010-A4iKCH1#,VCH1#..G199907-200501

IVORY,TRIM0#

sub74617-16010

main74617-16010-A4iKCH1#,VCH1#..G199804-199907

sub74617-16010

main74617-16010-B7iKCH10,16,RCH11..G199508-199708

LT.BLUISH GRAY,TRIM1#

sub74617-16010

main74617-16010-P5iKCH1#,RCH11,VCH1#..G199708-199907

LT.GRAY,TRIM1#

sub74617-16010

main74617-22010-A2iKCH1#,VCH1#..QLTD199907-200205

IVORY,TRIM0#

sub74617-22010

main74617-22010-A2iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

sub74617-22010

main74617-22010-B1iKCH10,16,RCH11..Q199508-199708

LT.BLUISH GRAY,TRIM1#

sub74617-22010

74671SUPPORT, ASSIST GRIP

main74671-22010-A1iKCH1#,VCH1#..Q199708-199907

IVORY,TRIM4#

sub74671-22010

main74671-22010-A1iKCH1#,VCH1#..QLTD199907-200205

IVORY,TRIM0#

sub74671-22010

main74671-22010-B1iKCH10,16,RCH11..Q199508-199708

LT.BLUISH GRAY,TRIM1#

sub74671-22010

74681ARETAINER, ASSIST GRIP

main74681-26030iKCH1#,VCH1#..4D199508-200205

main74681-26040iKCH10,16,RCH11,VCH1#..4D199508-200205

9011906056

main90119-06056

9011906389

main90119-06389

9015260005

main90152-60005

9015260008

main90152-60008

9015960596

main90159-60596

9165140625

main91651-40625

16 parts on this diagram · 2 diagrams in section
