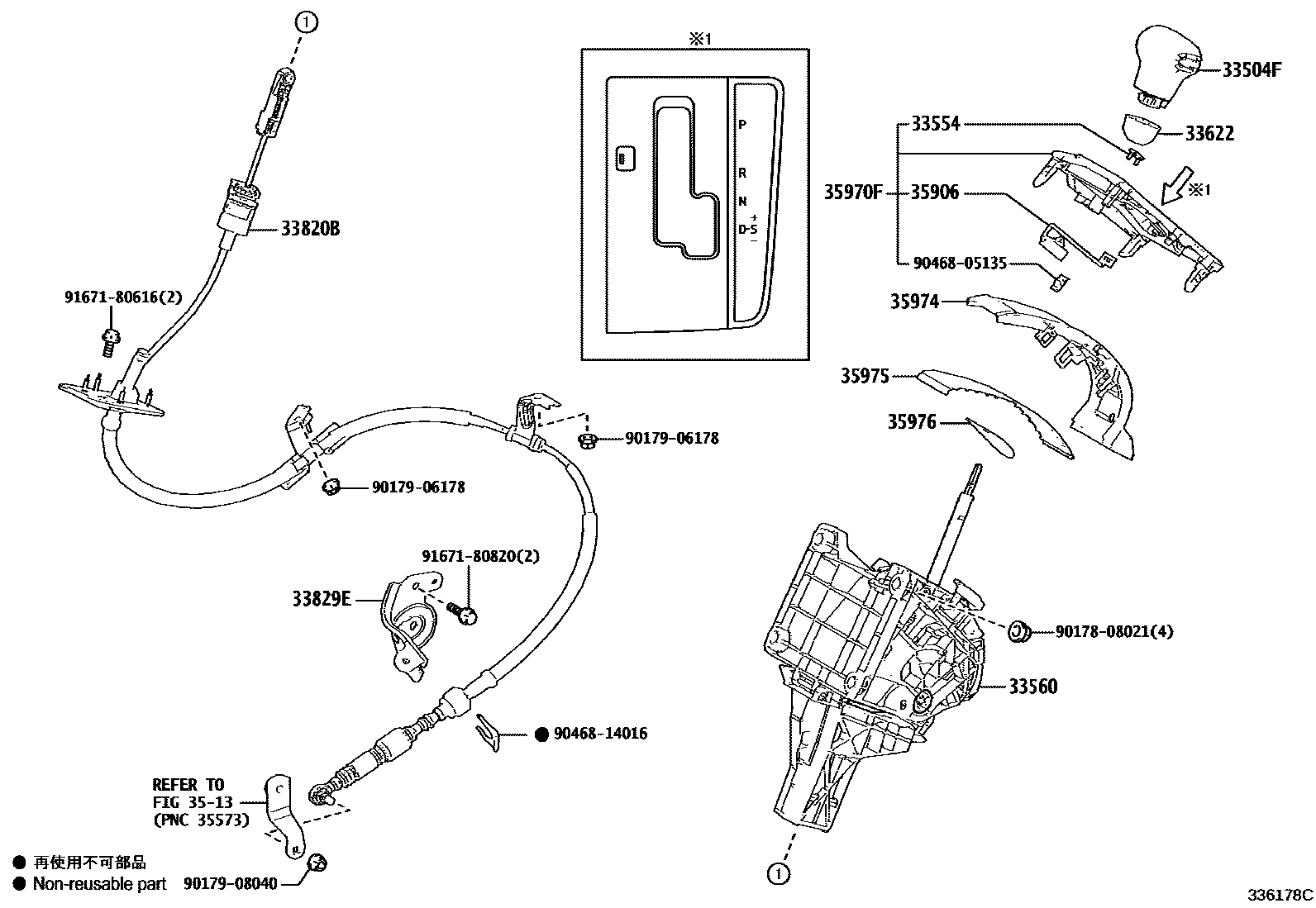

Toyota GRANACE — SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
33554CAP, SHIFT LEVER
33560UNIT ASSY, SHIFT LOCK CONTROL
33622COVER, SHIFT LEVER KNOB, NO.1
33820BCABLE ASSY, TRANSMISSION CONTROL
33829EBRACKET, TRANSMISSION CONTROL CABLE
3513THROTTLE LINK & VALVE LEVER (ATM)
35906WIRE SUB-ASSY, INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
9017808021
main90178-08021
9017906178
main90179-06178
9017908040
main90179-08040
9046805135
main90468-05135
9046814016
main90468-14016
9167180616
main91671-80616
9167180820
main91671-80820
19 parts on this diagram · 1 diagram in section
SHIFT LEVER & RETAINER for Toyota GRANACE
This section contains 19 genuine Toyota parts for the SHIFT LEVER & RETAINER system of the Toyota GRANACE. Key components include: KNOB SUB-ASSY, SHIFT LEVER, CAP, SHIFT LEVER, UNIT ASSY, SHIFT LOCK CONTROL, COVER, SHIFT LEVER KNOB, NO.1, CABLE ASSY, TRANSMISSION CONTROL.
