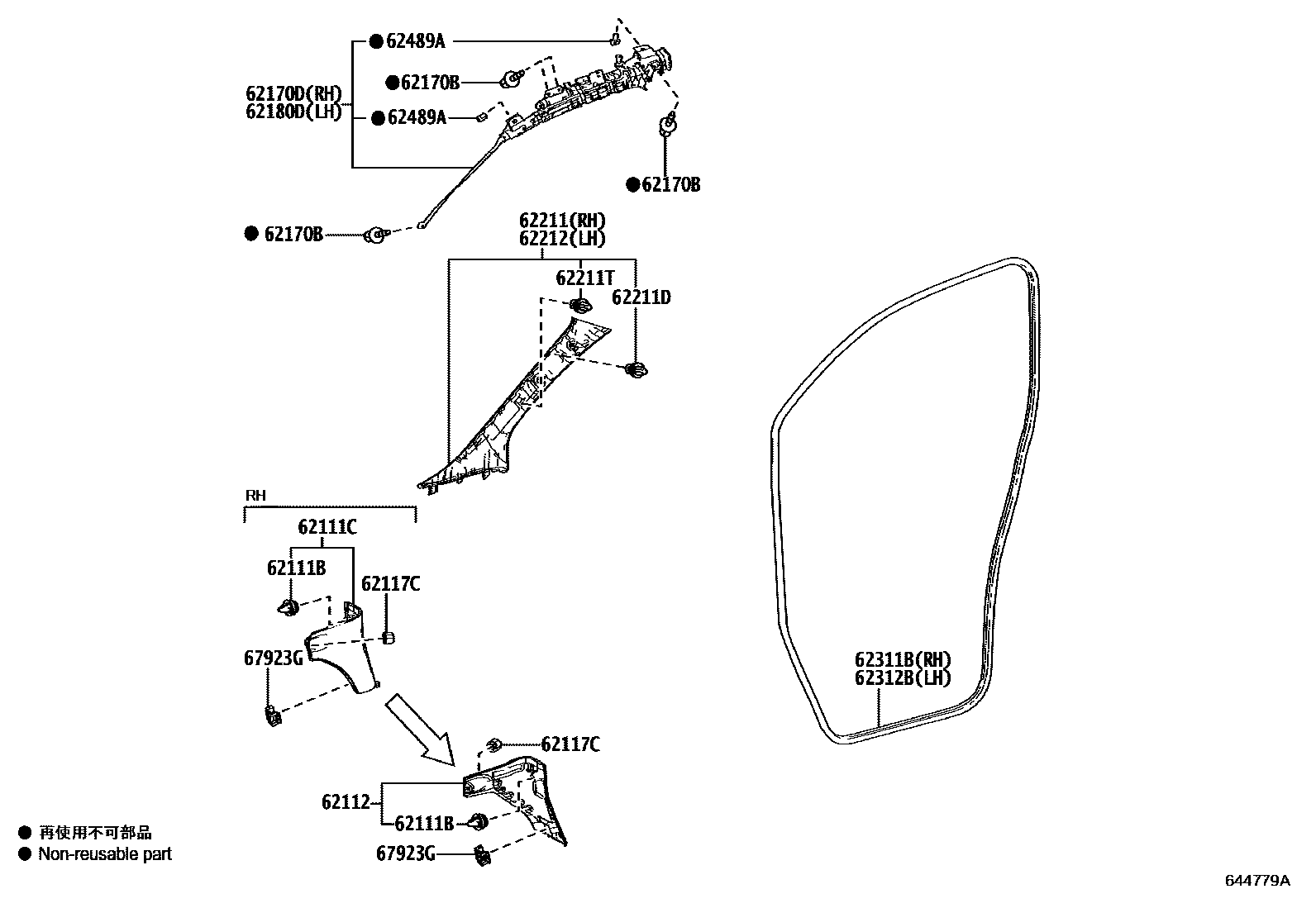

Toyota GRANACE — INSIDE TRIM BOARD

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09240×2i201912-202003

main90467-09245×2i202004

62111CBOARD, COWL SIDE TRIM, RH

main62111-26030-C0i201912

BLACK,TRIM2#

62112BOARD, COWL SIDE TRIM, LH

main62112-26030-C0i201912

BLACK,TRIM2#

62117CCLIP, NO.2(FOR COWL SIDE TRIM)

main90467-06147×2i201912

62170BBOLT, W/WASHER

main90119-06869×8i201912

62170DAIRBAG ASSY, CURTAIN SHIELD, FRONT RH

main62170-26010i201912

62180DAIRBAG ASSY, CURTAIN SHIELD, FRONT LH

main62180-26010i201912

62211GARNISH, FRONT PILLAR, RH

main62210-26090-A0i201912

FROMAGE,TRIM2#

main62210-26160-A1i201912

FROMAGE,TRIM21,22

main62210-26160-C1i201912

BLACK,TRIM23,24

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161×2i201912

62211TCLIP(FOR FRONT PILLAR GARNISH)

main90467-10167×2i201912

62212GARNISH, FRONT PILLAR, LH

main62220-26090-A0i201912

FROMAGE,TRIM2#

main62220-26160-A1i201912

FROMAGE,TRIM21,22

main62220-26160-C1i201912

BLACK,TRIM23,24

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-26100i201912-202506

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-26100i201912-202506

62489ACLIP, ROOF SIDE INNER GARNISH

main62489-28010×4i201912

67923GCLAMP, COWL SIDE TRIM BOARD

main67923-26040×2i201912

15 parts on this diagram · 4 diagrams in section

INSIDE TRIM BOARD for Toyota GRANACE

This section contains 76 genuine Toyota parts for the INSIDE TRIM BOARD system of the Toyota GRANACE. Key components include: PLATE, STEP BRACKET, BRACKET, STEP PANEL, COVER SUB-ASSY, JACK BOX HOLE, RH, COVER SUB-ASSY, JACK BOX HOLE, LH, LOCK, BATTERY SERVICE HOLE COVER.
