Toyota GRANACE — HEATING & AIR CONDITIONING - COMPRESSOR

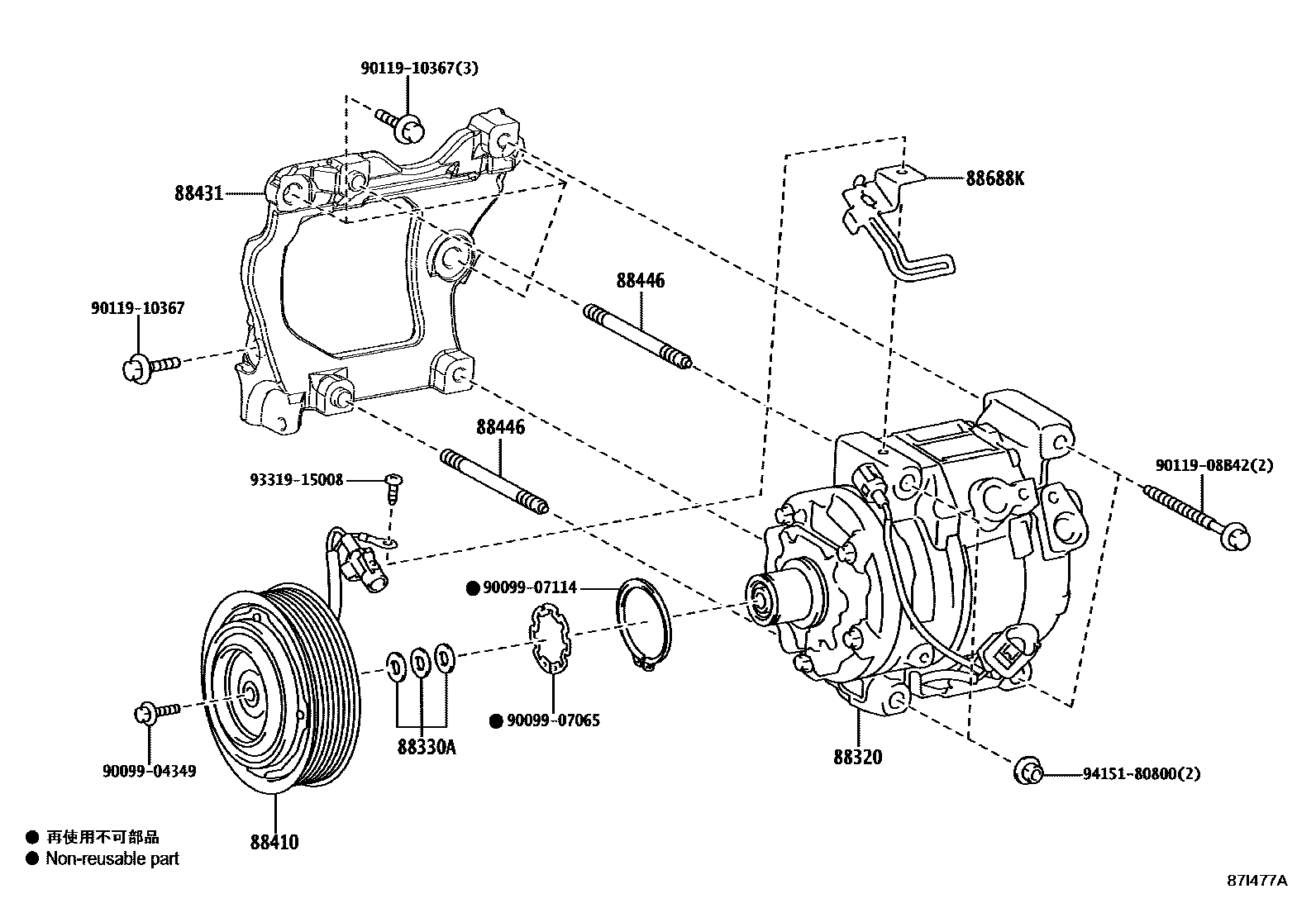

Parts diagram

88320COMPRESSOR ASSY, COOLER

main88320-26740i201912

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020i201912

88410CLUTCH ASSY, MAGNET

main88410-60450i201912

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-60330i201912-202506

88446BOLT, IDLE PULLEY

main88446-60050×2i201912

88688KBRACKET, COOLER COMPRESSOR

main88688-6B260i201912

9009904349

main90099-04349

9009907065

main90099-07065

9009907114

main90099-07114

9011908B42

main90119-08B42

9011910367

main90119-10367

9331915008

main93319-15008

9415180800

main94151-80800

13 parts on this diagram · 1 diagram in section

HEATING & AIR CONDITIONING - COMPRESSOR for Toyota GRANACE

This section contains 13 genuine Toyota parts for the HEATING & AIR CONDITIONING - COMPRESSOR system of the Toyota GRANACE. Key components include: COMPRESSOR ASSY, COOLER, WASHER (FOR MAGNET CLUTCH), CLUTCH ASSY, MAGNET, BRACKET, COMPRESSOR MOUNTING, NO.1, BOLT, IDLE PULLEY.

Toyota GRANACE HEATING & AIR CONDITIONING - COMPRESSOR — Parts Diagram | EPC Data
