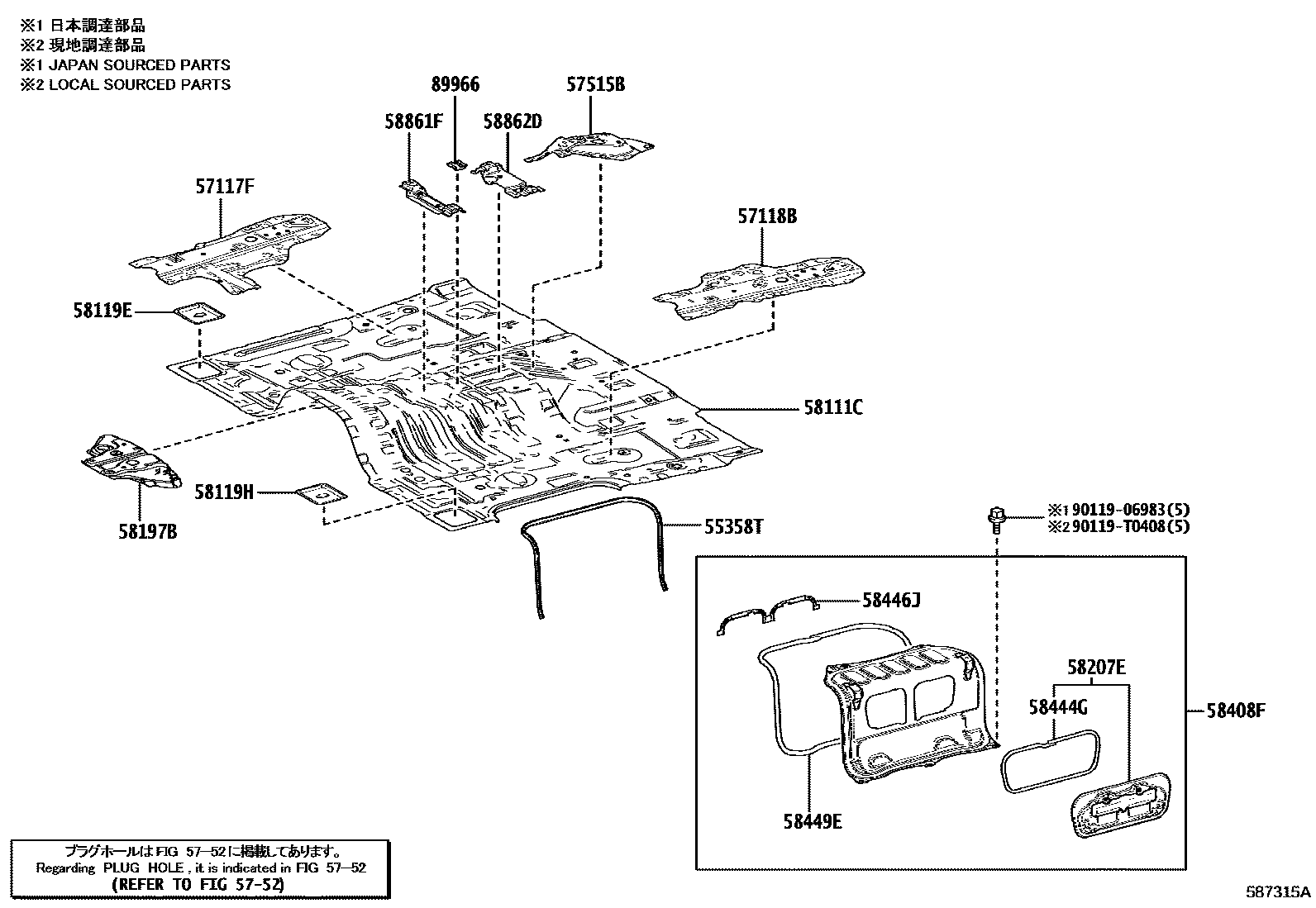

Toyota GRANACE — FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1FLOOR MEMBER

55358TPROTECTOR, EDGE

main55358-26080iGDH303201912-202506

57117FPLATE, FRONT SIDE MEMBER, NO.2 RH

main57117-26050iGDH303201912-202506

57118BPLATE, FRONT SIDE MEMBER, NO.2 LH

main57118-26050iGDH303201912-202506

57515BBRACKET, PARKING BRAKE, RH

main57515-26110iGDH303201912-202506

5752

58111CPAN, FRONT FLOOR

main58111-26D00iGDH303201912-202506

58119ECOVER, FRONT FLOOR SIDE, FRONT

main58119-26020iGDH303201912-202506

58119HCOVER, FRONT FLOOR SIDE, FRONT

main58119-26020iGDH303201912-202506

58197BRETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET

main58197-26030iGDH303201912-202506

58207ECOVER SUB-ASSY, BATTERY SERVICE HOLE, FRONT LH

main58207-26080iGDH303201912-202506

58408FCOVER SUB-ASSY, BATTERY SERVICE HOLE, LH

main58408-26020iGDH303201912-202506

58444GPACKING, BATTERY SERVICE OPENING LID

main58444-26030iGDH303201912-202506

58446JPROTECTOR, BATTERY SERVICE OPENING LID

main58446-26020iGDH303201912-202506

58449EPACKING, BATTERY SERVICE HOLE COVER

main58449-26030iGDH303201912-202506

58861FSUPPORT, CONSOLE BOX, NO.1

main58861-26030iGDH303201912-202506

58862DSUPPORT, CONSOLE BOX, NO.2

main58862-26010iGDH303201912-202506

89966BRACKET, OSCILLATOR ELECTRICAL KEY

main89966-28010iGDH303201912-202506

9011906983

main90119-06983

90119T0408

main90119-T0408

19 parts on this diagram · 2 diagrams in section
