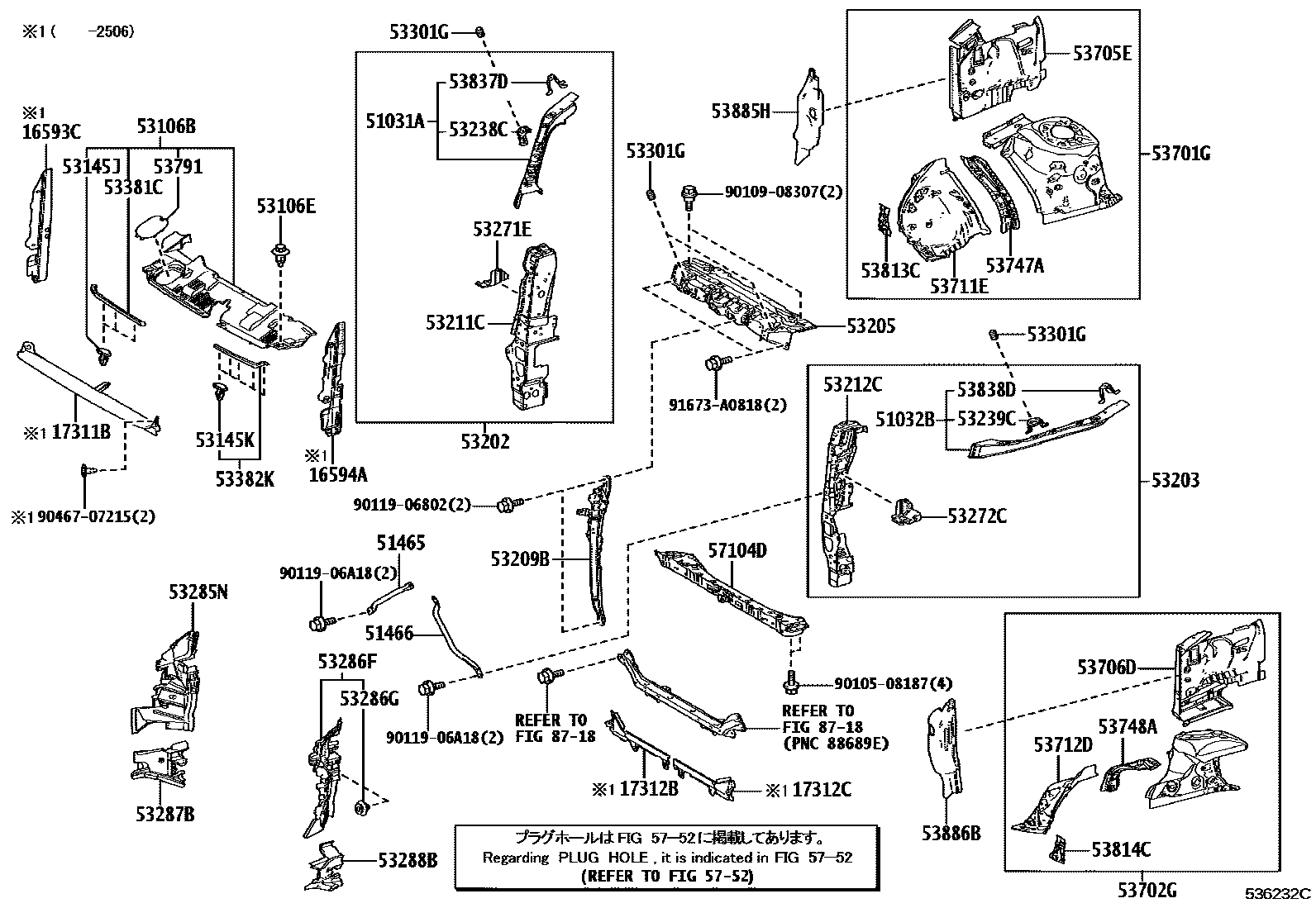

Toyota GRANACE — FRONT FENDER APRON & DASH PANEL
16593CGUIDE, RADIATOR AIR, NO.1
16594AGUIDE, RADIATOR AIR, NO.2
17311BDUCT, AIR INLET, NO.1
17312BDUCT, AIR INLET, NO.2
17312CDUCT, AIR INLET, NO.2
51031AGUSSET SUB-ASSY, FRONT CROSSMEMBER, RH
51032BGUSSET SUB-ASSY, FRONT CROSSMEMBER, LH
51465BRACE, RADIATOR SUPPORT, UPPER RH
51466BRACE, RADIATOR SUPPORT, UPPER LH
53106BCOVER SUB-ASSY, RADIATOR
53106ECLIP, RADIATOR COVER
53145JCLIP, RADIATOR GRILLE
53145KCLIP, RADIATOR GRILLE
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT
53211CSUPPORT, RADIATOR, RH
53212CSUPPORT, RADIATOR, LH
53238CBRACKET, HOOD BUMPER MOUNTING, RH
53239CBRACKET, HOOD BUMPER MOUNTING, LH
53271EBRACKET, HEADLAMP MOUNTING, RH
53272CBRACKET, HEADLAMP MOUNTING, LH
53285NSEAL, RADIATOR SIDE AIR, RH
53286FSEAL, RADIATOR SIDE AIR, LH
53286GCLIP, RADIATOR SIDE AIR SEAL
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53301GCUSHION, HOOD BUMPER
53381CSEAL, HOOD TO RADIATOR SUPPORT, RH
53382KSEAL, HOOD TO RADIATOR SUPPORT, LH
53701GAPRON SUB-ASSY, FRONT FENDER, RH
53702GAPRON SUB-ASSY, FRONT FENDER, LH
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53711EAPRON, FRONT FENDER, RH
53712DAPRON, FRONT FENDER, LH
53747AEXTENSION, APRON FENDER SIDE, RH
53748AEXTENSION, APRON FENDER SIDE, LH
53791COVER, COOL AIR INTAKE HOLE
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53837DBRACKET, FRONT SIDE PANEL, NO.2 RH
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
53885HSEAL, FENDER APRON MUDGUARD, RH
53886BSEAL, FENDER APRON MUDGUARD, LH
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
8718
9010508187
main90105-08187
9010908307
main90109-08307
9011906802
main90119-06802
9011906A18
main90119-06A18
9046707215
main90467-07215
91673A0818
main91673-A0818
55 parts on this diagram · 2 diagrams in section
