Toyota GRANACE — FRONT DOOR LOCK & HANDLE

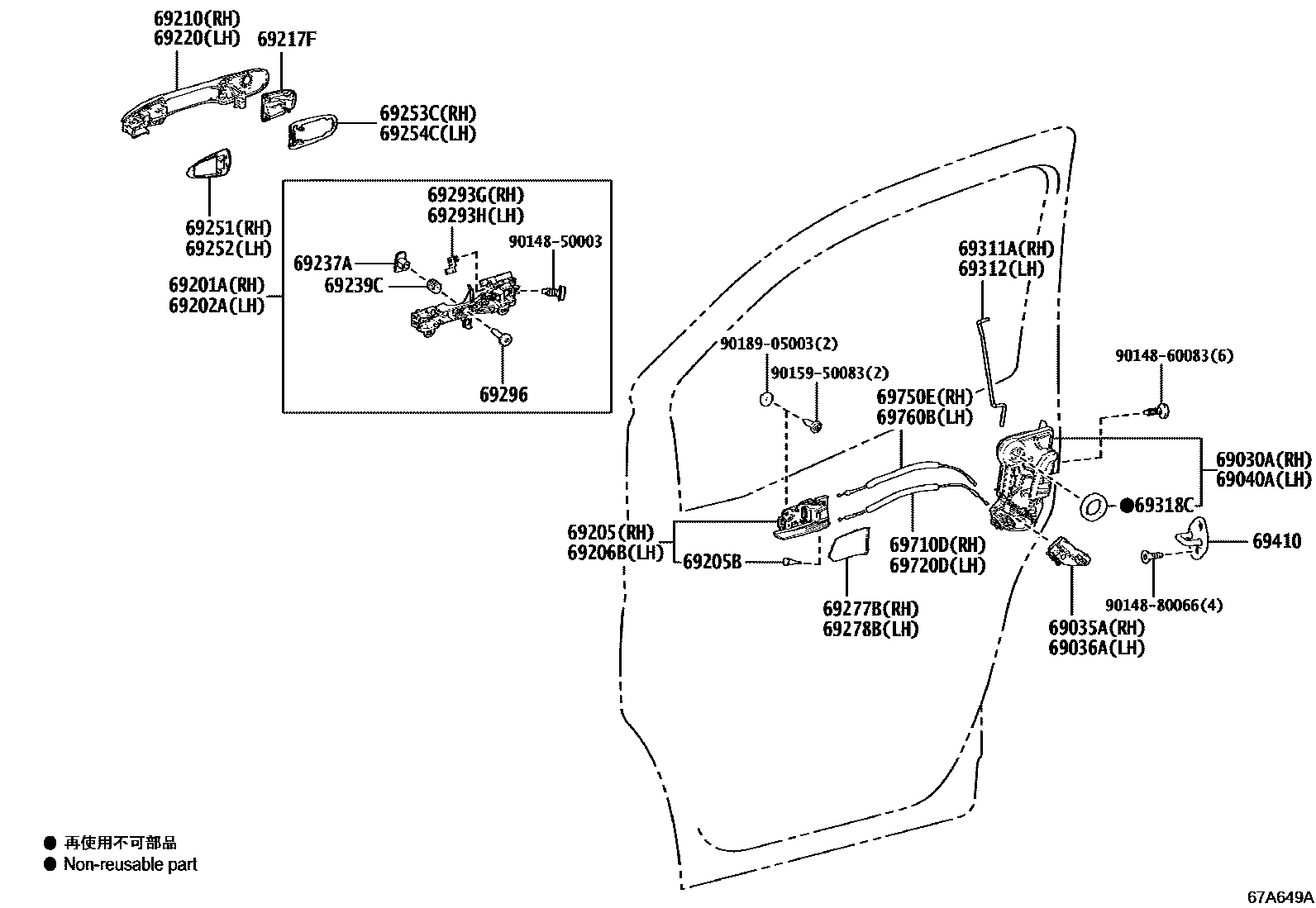

Parts diagram
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-30A70i201912-202506
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-30010i201912-202506
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-30010i201912-202506
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-30A80i201912-202506
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-47070i201912-202506
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-47040i201912-202506
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-33140-C0i201912-202506
BLACK,TRIM2#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×2i201912-202506
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-33150-C0i201912-202506
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-33101i201912-202506
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69217-47020i201912-202506
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-33141i201912-202506
69237ANUT, FRONT DOOR HANDLE
main69237-62010×2i201912-202506
69239CBUSH, FRONT DOOR HANDLE
main69239-47010×2i201912-202506
69251PAD, FRONT DOOR OUTSIDE HANDLE, FRONT RH
main69241-47020i201912-202506
69252PAD, FRONT DOOR OUTSIDE HANDLE, FRONT LH
main69241-47020i201912-202506
69253CPAD, FRONT DOOR OUTSIDE HANDLE, REAR RH
main69242-47030i201912-202506
69254CPAD, FRONT DOOR OUTSIDE HANDLE, REAR LH
main69242-47030i201912-202506
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
main69277-26010-C1i201912
BLACK,TRIM2#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
main69278-26010-C1i201912
BLACK,TRIM2#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i201912-202506
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i201912-202506
69296SCREW, DOOR INSIDE HANDLE
main69296-30010i201912-202204
main90148-50006i202205-202506
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-26020i201912-202506
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-26020i201912-202506
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010×2i201912-202506
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110×2i201912-202506
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69710-26020i201912-202506
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-26020i201912-202506
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69750-26060i201912-202506
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-26060i201912-202506
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9015950083
main90159-50083
9018905003
main90189-05003

36 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE for Toyota GRANACE

This section contains 36 genuine Toyota parts for the FRONT DOOR LOCK & HANDLE system of the Toyota GRANACE. Key components include: LOCK ASSY, FRONT DOOR W/MOTOR, RH, COVER SUB-ASSY, FRONT DOOR LOCK, RH, COVER SUB-ASSY, FRONT DOOR LOCK, LH, LOCK ASSY, FRONT DOOR W/MOTOR, LH, FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
