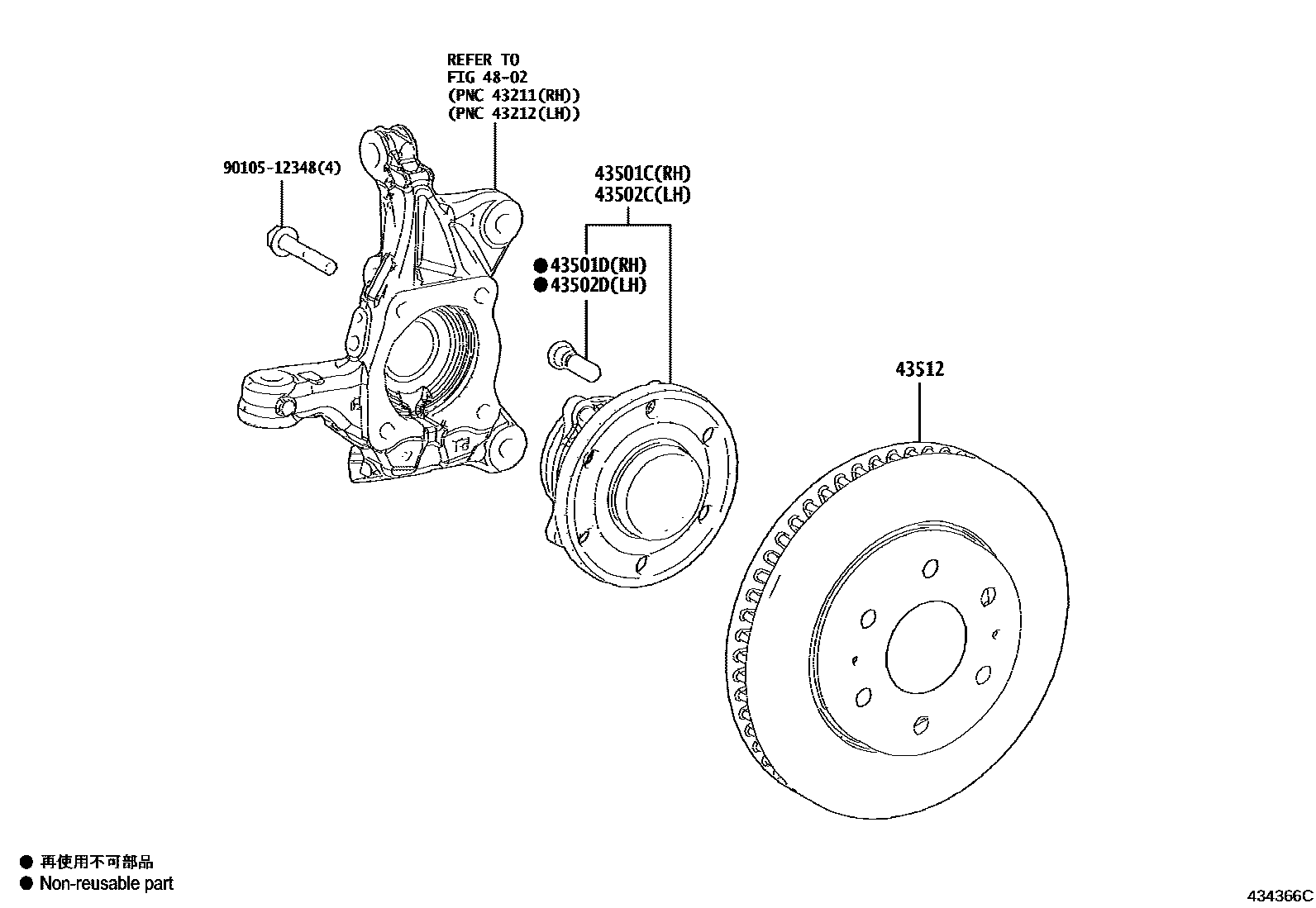

Toyota GRANACE — FRONT AXLE HUB

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-26010i201912-202506

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02083×6i201912-202506

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-26010i201912-202506

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02083×6i201912-202506

43512DISC, FRONT

main43512-26200×2i201912

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512348

main90105-12348

7 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota GRANACE

This section contains 7 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota GRANACE. Key components include: HUB SUB-ASSY, FRONT AXLE, RH, BOLT, HUB (FOR FRONT AXLE RH), HUB SUB-ASSY, FRONT AXLE, LH, BOLT, HUB (FOR FRONT AXLE LH), DISC, FRONT.
