Toyota GRANACE — ABS & VSC

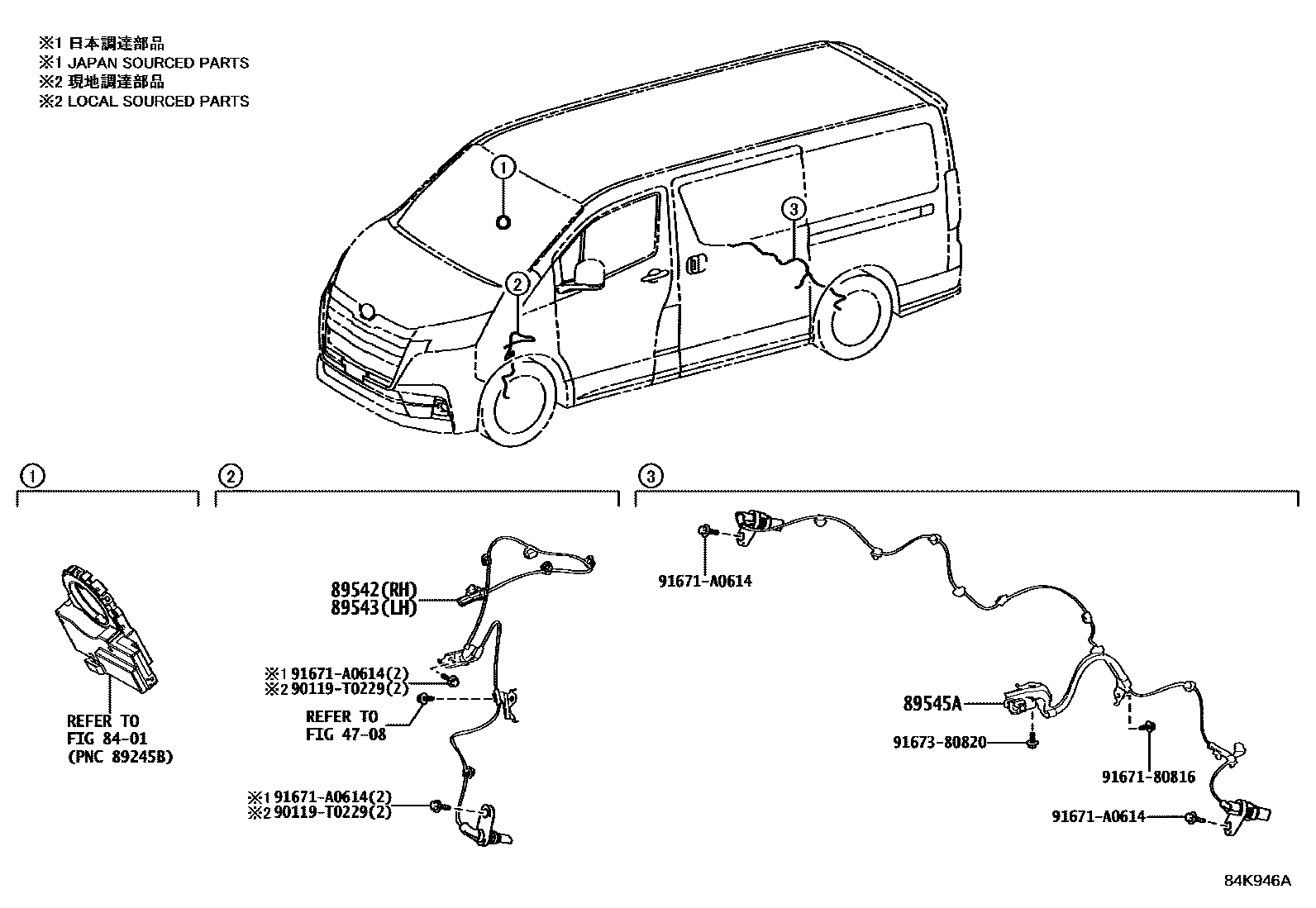

Parts diagram

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89542SENSOR, SPEED, FRONT RH

main89542-26180i201912-202006

main89542-26181i202006-202505

89543SENSOR, SPEED, FRONT LH

main89543-26190i201912-202006

main89543-26191i202006-202505

89545ASENSOR, SPEED, REAR

main89545-26100i201912-202506

90119T0229

main90119-T0229

9167180816

main91671-80816

91671A0614

main91671-A0614

9167380820

main91673-80820

9 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota GRANACE

This section contains 9 genuine Toyota parts for the ABS & VSC system of the Toyota GRANACE. Key components include: BRAKE TUBE & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR, SPEED, FRONT RH, SENSOR, SPEED, FRONT LH, SENSOR, SPEED, REAR.
