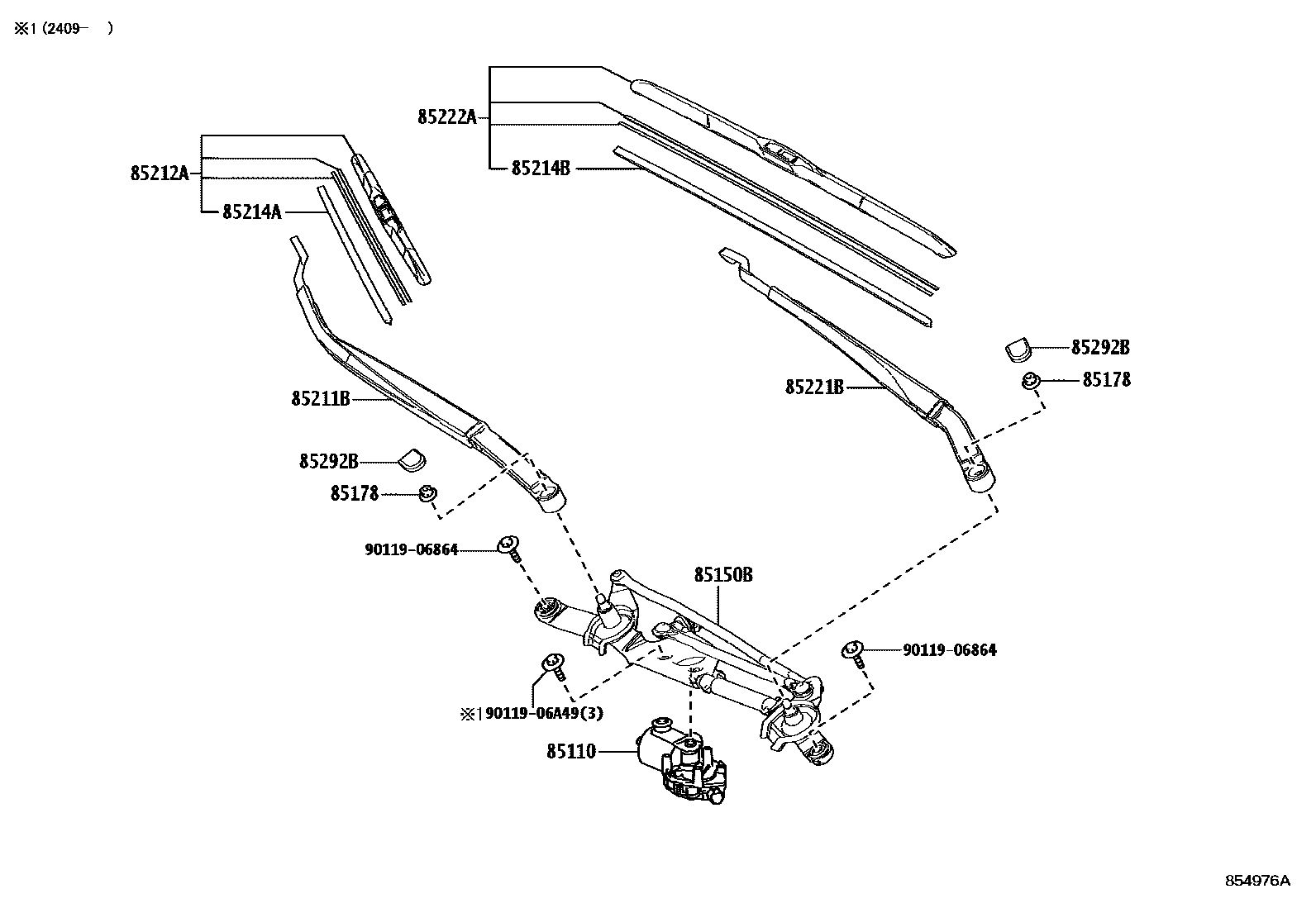

Toyota GR COROLLA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C30iGZEA14202409

85150BLINK ASSY, WIPER

main85150-12B81iGZEA14202409

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006×2iGZEA14202409

85211BARM, FRONT WIPER, RH

main85211-12660iGZEA14202409

85212ABLADE, FR WIPER, RH

main85212-52220iGZEA14202409

85214ARUBBER, WIPER, RH

main85214-68030iGZEA14202409

85214BRUBBER, WIPER, LH

main85214-28080iGZEA14202409

85221BARM, FRONT WIPER, LH

main85221-12591iGZEA14202409

85222ABLADE, FR WIPER, LH

main85222-12A90iGZEA14202409

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGZEA14202409

9011906864

main90119-06864

9011906A49

main90119-06A49

12 parts on this diagram · 1 diagram in section
