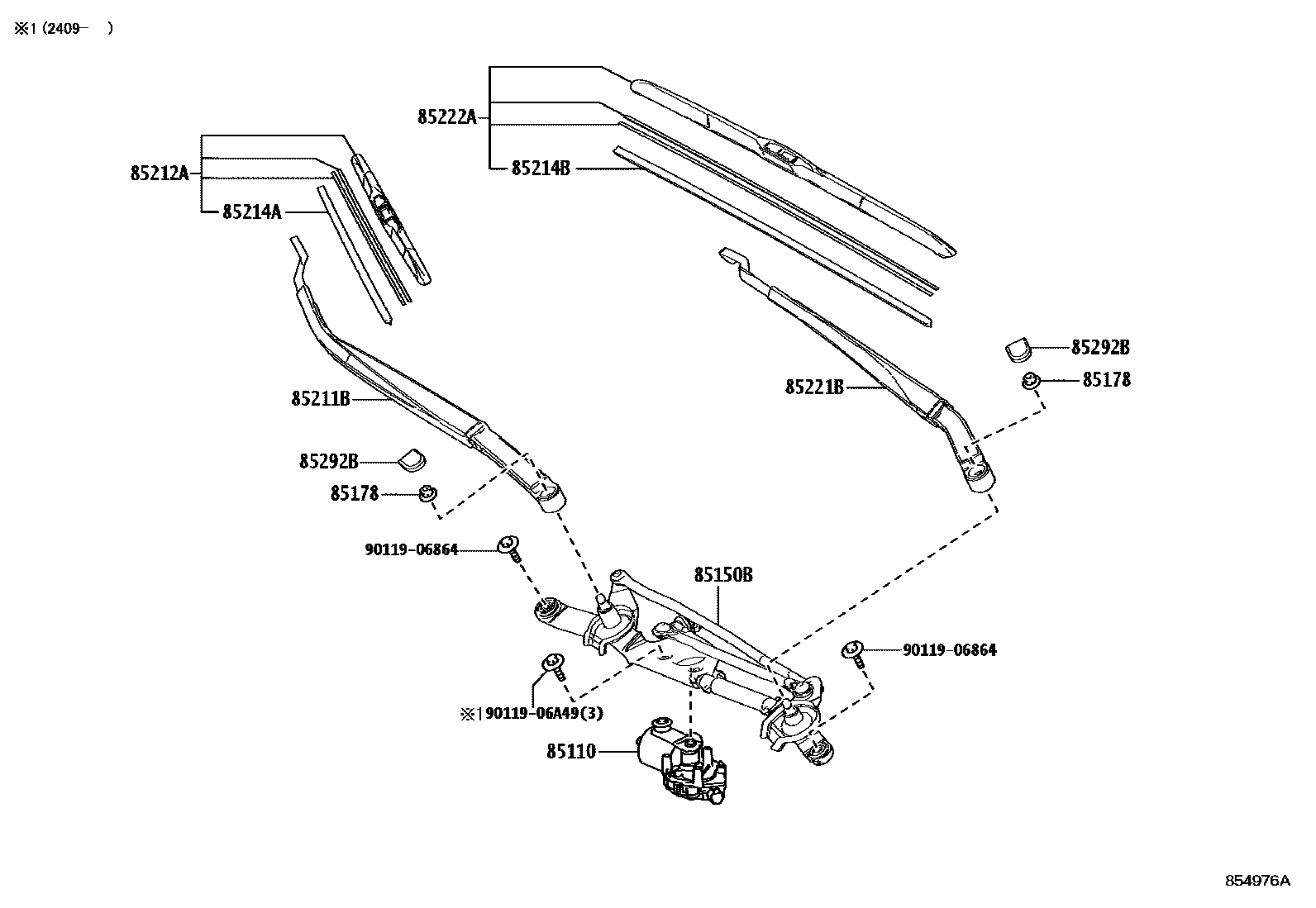

Toyota GR COROLLA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-12C30i202210-202409

85150BLINK ASSY, WIPER

main85150-12B81i202210-202409

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006i202210-202409

85211BARM, FRONT WIPER, RH

main85211-12660i202210-202409

85212ABLADE, FR WIPER, RH

main85212-52220i202210-202409

85214ARUBBER, WIPER, RH

main85214-68030i202210-202409

85214BRUBBER, WIPER, LH

main85214-28080i202210-202409

85221BARM, FRONT WIPER, LH

main85221-12591i202210-202409

85222ABLADE, FR WIPER, LH

main85222-12A90i202210-202409

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010i202210-202409

9011906864

main90119-06864

9011906A49

main90119-06A49

12 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota GR COROLLA

This section contains 12 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota GR COROLLA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, NUT (FOR FRONT WIPER ARM SETTING), ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH.
