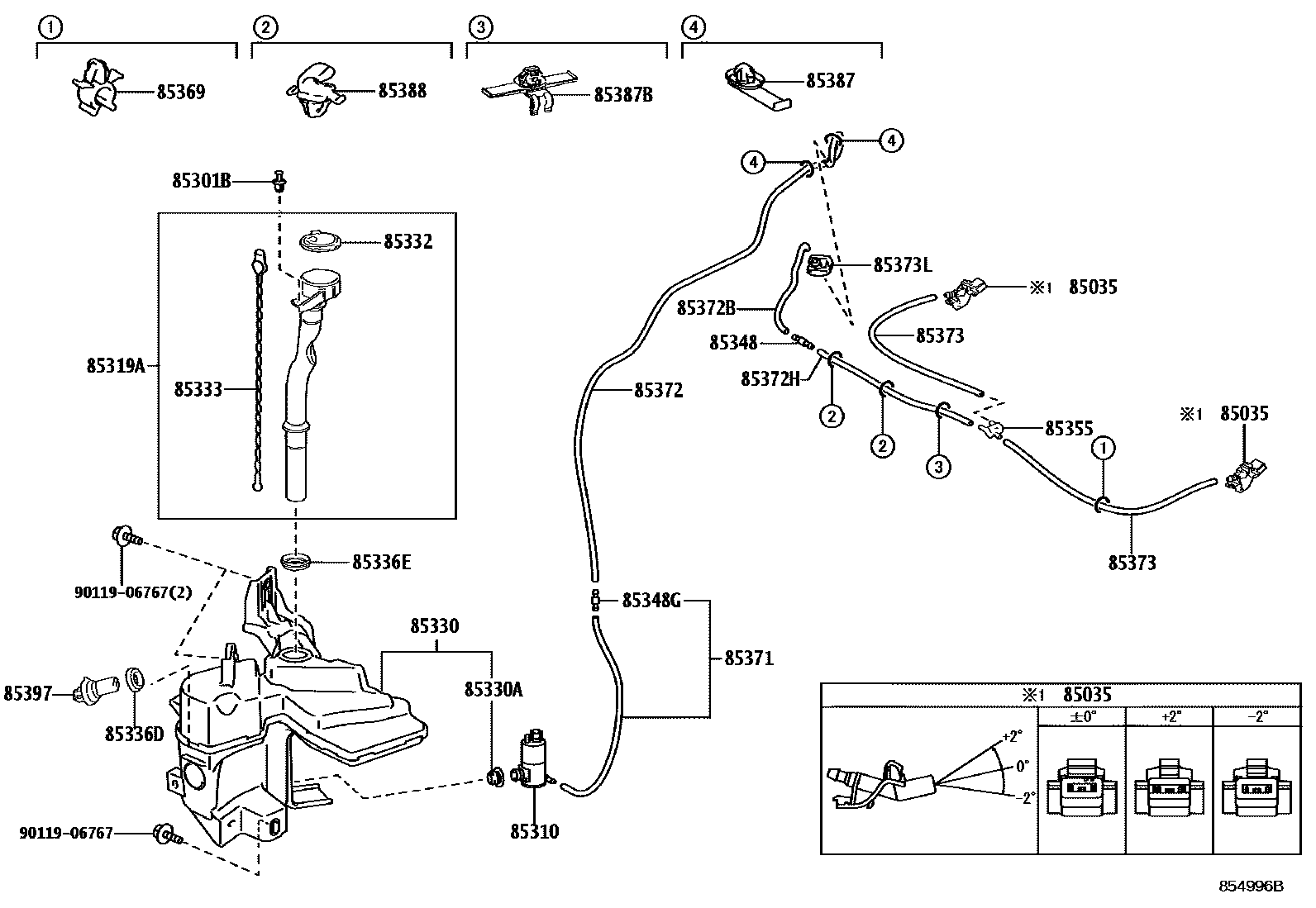

Toyota GR COROLLA — WINDSHIELD WASHER

0001 1 0002 1

85035NOZZLE SUB-ASSY, WASHER

main85381-12360×2iGZEA14..05S202210-202409

ANGLE 0

main85381-12440×2iGZEA14..05S202210-202409

ANGLE +2

main85381-33080×2iGZEA14202409

ANGLE -2

85301BCLIP, WASHER

main90467-07214iGZEA14202409

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47100iGZEA14202210-202211

main85330-48030iGZEA14202409

main85330-48040iGZEA14..02S202212-202304

85319AHOSE, INLET

main85301-12030iGZEA14..05S..CND202211-202409

main85301-12040iGZEA14202210-202211

main85301-12050iGZEA14..05S..USA202211-202409

85330JAR ASSY, WINDSHIELD WASHER

main85315-12720iGZEA14..CND202210-202211

main85315-12730iGZEA14..USA202210-202211

##

main85315-12810iGZEA14..USA202409

main85315-12820iGZEA14..CND202409

85330ABUSH, WINDSHIELD WASHER JAR

main90069-50012iGZEA14..02S202212-202304

main90069-50016iGZEA14202409

main90099-32089iGZEA14..USA202210-202211

##

85332CAP, WINDSHIELD WASHER JAR

main85386-60050iGZEA14..05S202210-202409

85333FILTER, WINDSHIELD WASHER JAR

main85312-47020iGZEA14..USA202409

85336DPACKING, WINDSHIELD WASHER JAR

main85319-33230iGZEA14..CND202210-202211

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iGZEA14202409

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iGZEA14..05S202210-202409

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iGZEA14..USA202210-202211

##

main85376-V2070iGZEA14202409

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iGZEA14..02S202210-202304

85369CLAMP

main90469-07011iGZEA14202409

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85319-12810iGZEA14..02S..USA202212-202304

L=349

main85319-12820iGZEA14..02S..CND202212-202304

L=349

main90069-46210iGZEA14..05S..USA202211-202409

L=340

main90099-33080iGZEA14202210-202211

L=1450(*H,L=500)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-62176iGZEA14202409

L=1090

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iGZEA14202409

L=1450(*H,L=280)

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iGZEA14202409

L=1450(*H,L=490)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iGZEA14202409

L=1450(*H,L=450)

85373LGROMMET, WASHER

main85373-12050iGZEA14202409

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main82711-52090×2iGZEA14202409

85387BCLAMP, WASHER, NO.3

main82711-35750iGZEA14202409

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-12040×2iGZEA14202409

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iGZEA14..CND202210-202211

9011906767

main90119-06767

25 parts on this diagram · 2 diagrams in section
