Toyota GR COROLLA — STANDARD TOOL

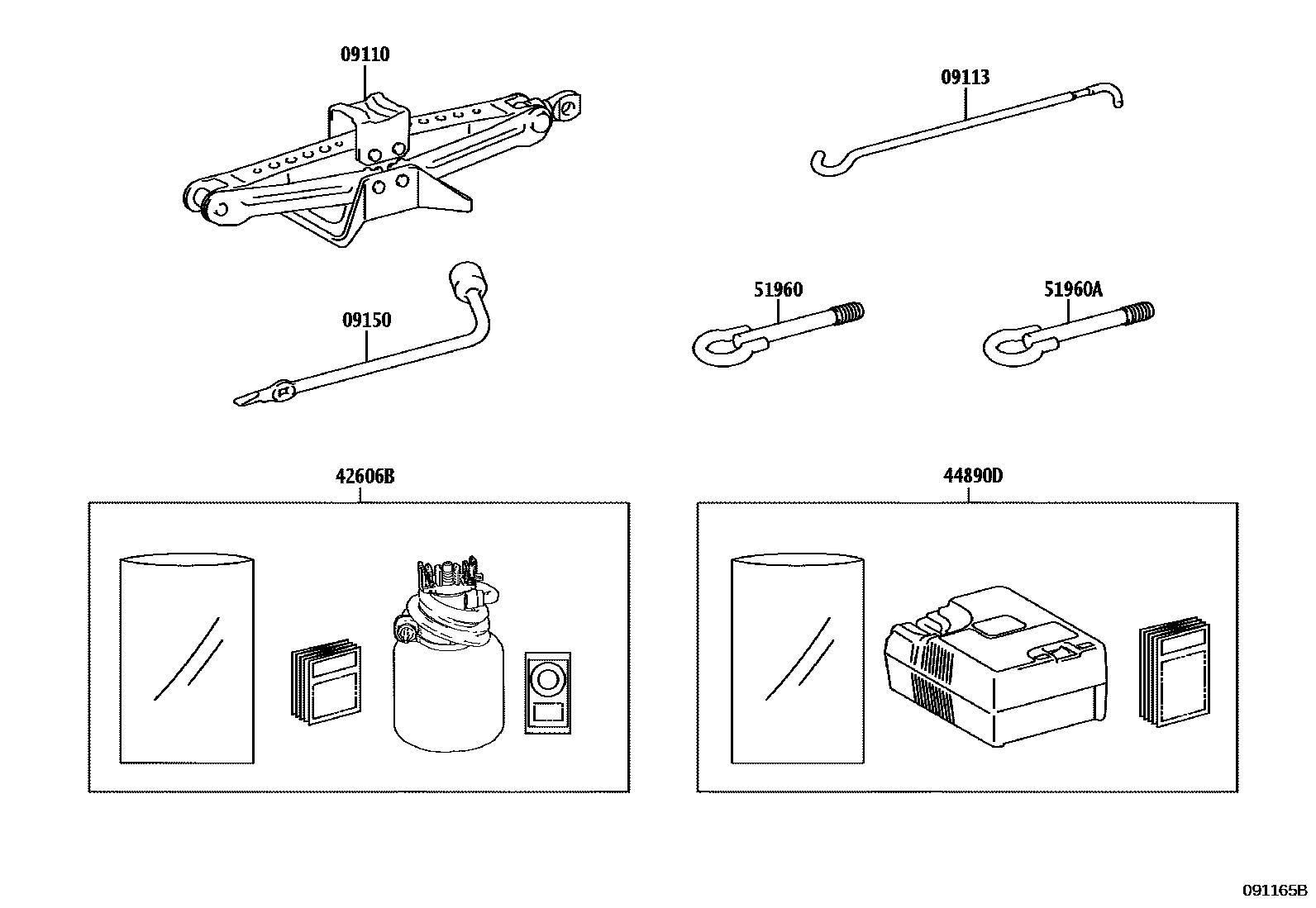

Parts diagram

09110JACK ASSY

main09111-47051i202210-202409

09113HANDLE, JACK

main09113-42030i202210-202409

09150WRENCH, HUB NUT BOX

main09150-42010i202210-202409

42606BREPAIR KIT, TUBELESS TIRE

main42606-42100i202210-202409

44890DCOMPRESSOR ASSY, AIR

main44890-42060i202210-202409

51960HOOK ASSY, FRONT

main51960-12110i202210-202409

main51961-33010i202409

51960AHOOK ASSY, REAR

main51961-33010i202409

7 parts on this diagram · 1 diagram in section
