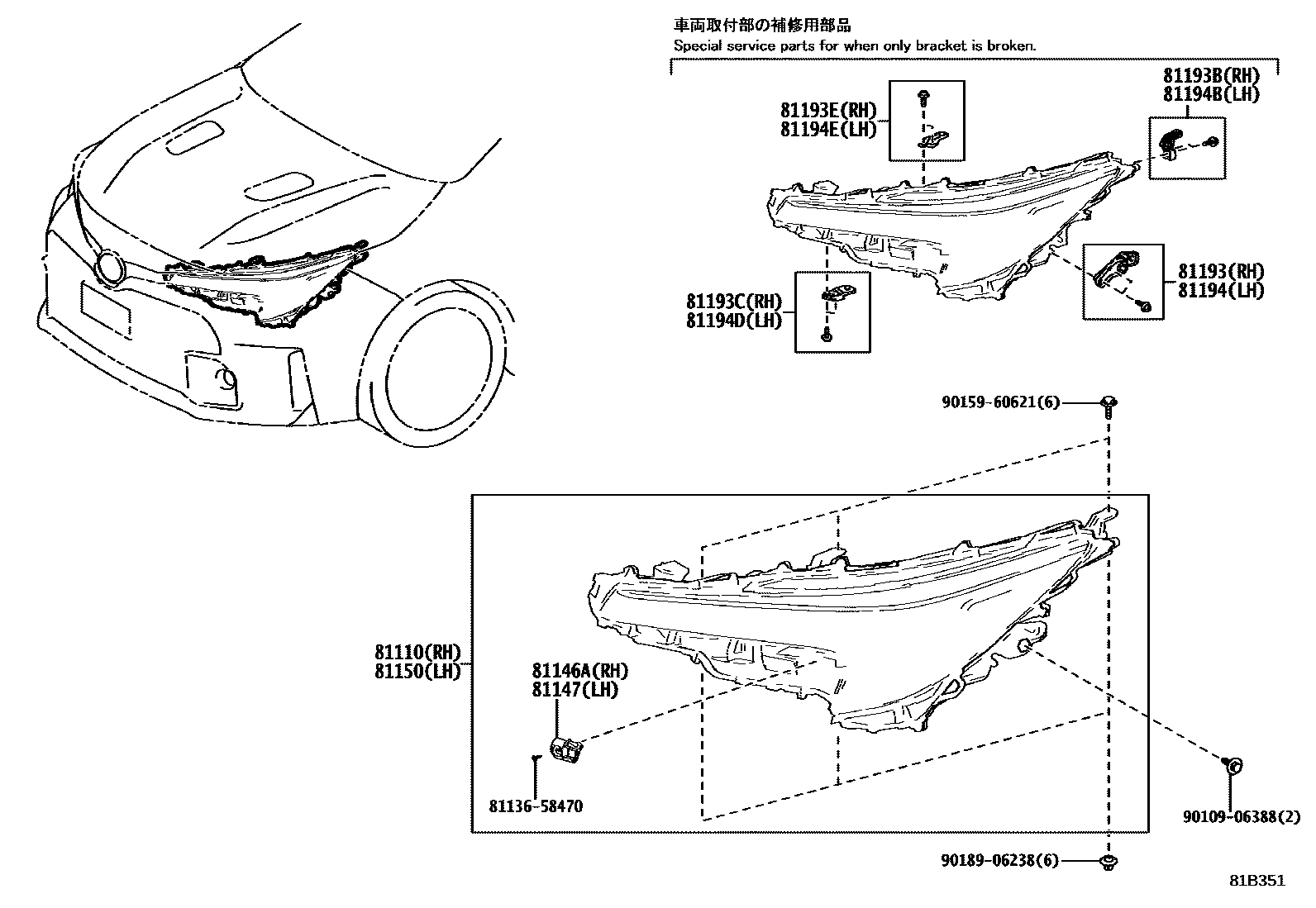

Toyota GR COROLLA — HEADLAMP
81110HEADLAMP ASSY, RH
81146AFITTING, HEADLAMP, RH
81147FITTING, HEADLAMP, LH
81150HEADLAMP ASSY, LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3
8113658470PROTECTOR, HEADLAMP, NO.1 RH
main81136-58470
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
16 parts on this diagram · 1 diagram in section
HEADLAMP for Toyota GR COROLLA
This section contains 16 genuine Toyota parts for the HEADLAMP system of the Toyota GR COROLLA. Key components include: HEADLAMP ASSY, RH, FITTING, HEADLAMP, RH, FITTING, HEADLAMP, LH, HEADLAMP ASSY, LH, RETAINER, HEADLAMP PROTECTOR, UPPER RH.
