Toyota GR COROLLA — ANTENNA

8504REAR WASHER

→ Go to FIG 85-04

86077COVER KIT, ANTENNA

main86077-33040-A2i202409

SUPER WHITE 2,040

main86077-33040-B5i202210-202409

PRECIOUS METAL,1L5

main86077-33040-C3i202409

BLACK,202

main86077-33040-C7i202409

BLACK,040 ,1L5 ,202 ,3U5

main86077-33040-D0i202210-202409

EMOTIONAL RED 2,3U5

main86077-33040-J3i202308-202409

CYAN METALLIC,8W9

86101CORD SUB-ASSY, ANTENNA

main86101-12M90supersedes 86101-12R40i202212-202304

main86101-12R40i202409

main86101-12R30i202210-202409

HAWAII SPEC; PUERTO RICO SPEC

main86101-12T60i202409

HAWAII SPEC&PREMIUM GRADE PACKAGE&CFRP ROOF-WITH; PUERTO RICO SPEC&PREMIUM GRADE PACKAGE&CFRP ROOF-WITH

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-12P00i202409

main86101-12N90i202210-202304

HAWAII SPEC; PUERTO RICO SPEC

86101TCORD SUB-ASSY, ANTENNA

main86101-12R90i202210-202304

main86101-12S00i202210-202409

HAWAII SPEC; PUERTO RICO SPEC

86300JANTENNA ASSY, ROOF

main86760-42030i202210-202409

main86760-42050i202210-202409

HAWAII SPEC; HAWAII SPEC&CFRP ROOF-WITH; PUERTO RICO SPEC; PUERTO RICO SPEC&CFRP ROOF-WITH

86769HOUSING, ROOF ANTENNA

main86769-K0010i202409

9011906A06

main90119-06A06

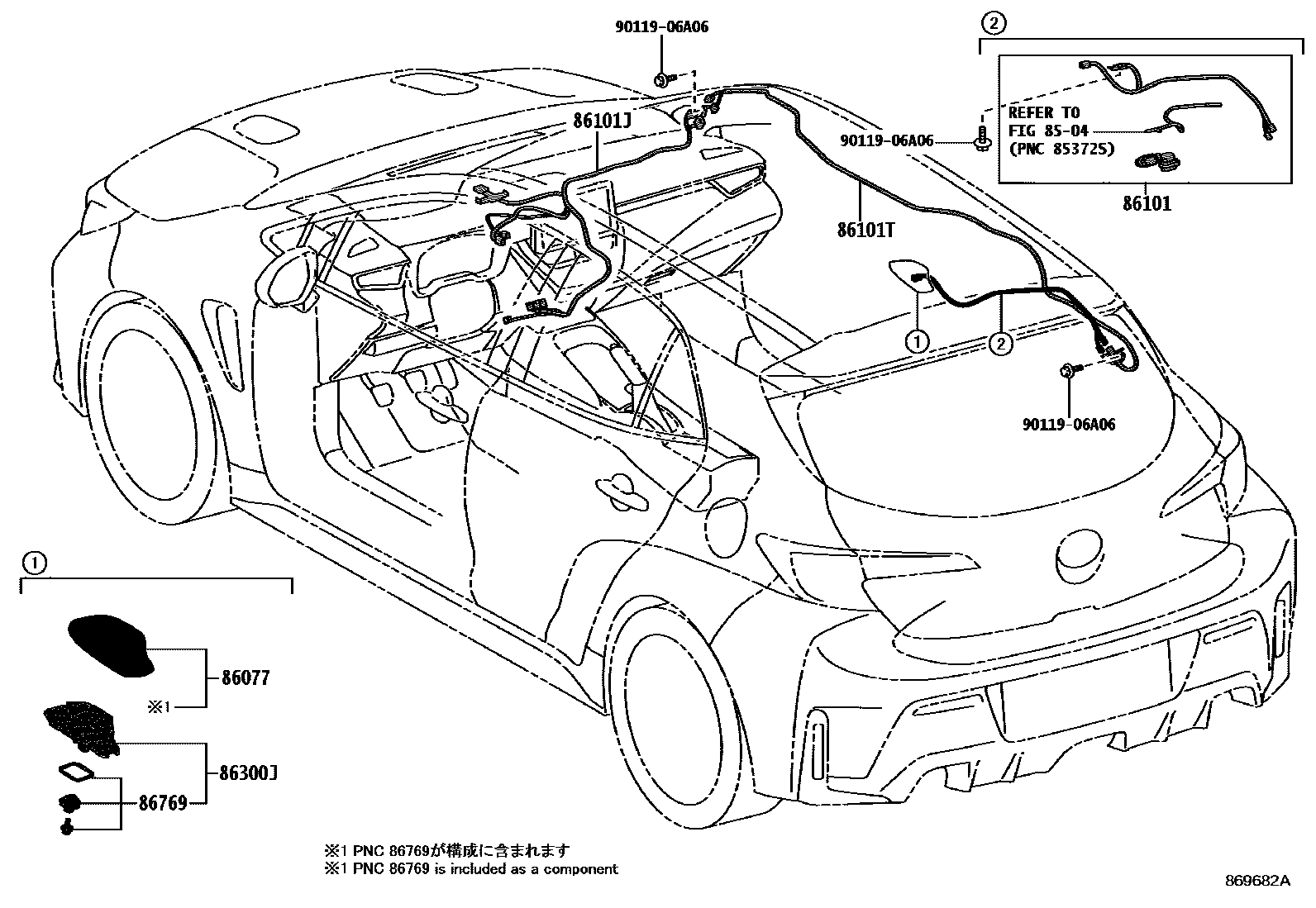

8 parts on this diagram · 1 diagram in section

ANTENNA for Toyota GR COROLLA

This section contains 8 genuine Toyota parts for the ANTENNA system of the Toyota GR COROLLA. Key components include: REAR WASHER, COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.2.
