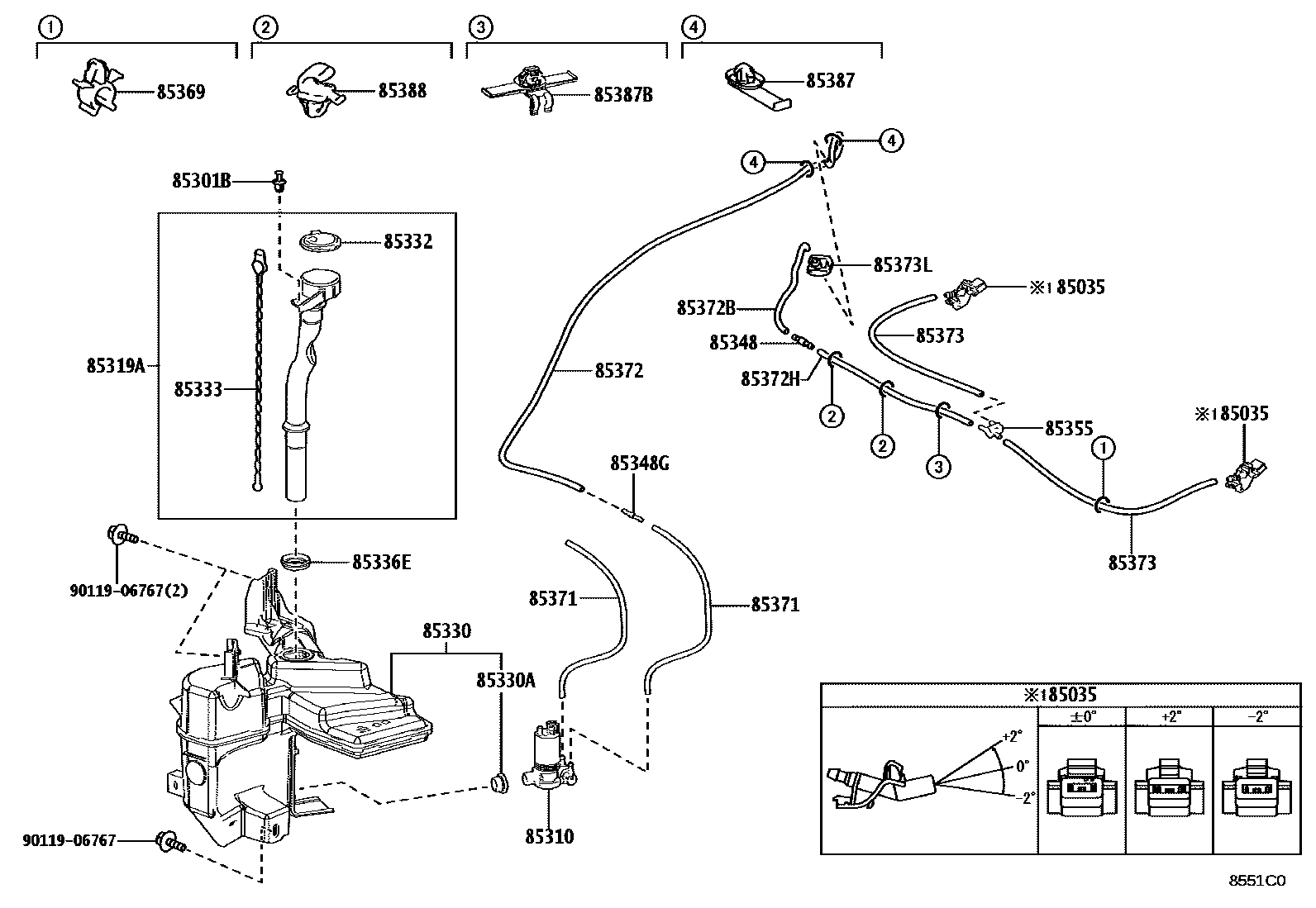

Toyota GR COROLLA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
85301BCLIP, WASHER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85319AHOSE, INLET
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85333FILTER, WINDSHIELD WASHER JAR
85336EPACKING, WINDSHIELD WASHER INLET HOSE
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85348GJOINT, WINDSHIELD WASHER HOSE, NO.2
85355VALVE, WINDSHIELD WASHER HOSE
85369CLAMP
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
85373LGROMMET, WASHER
85387CLAMP NO.1 (FOR WINDSEIELD WASHER)
85387BCLAMP, WASHER, NO.3
85388CLAMP NO.2 (FOR WINDSEIELD WASHER)
9011906767
main90119-06767
23 parts on this diagram · 2 diagrams in section
WINDSHIELD WASHER for Toyota GR COROLLA
This section contains 23 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota GR COROLLA. Key components include: NOZZLE SUB-ASSY, WASHER, CLIP, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, HOSE, INLET, JAR ASSY, WINDSHIELD WASHER.
